Tj01-ms51-heater controller

jbteja·tj01-ms51-heater-controller·Hardware/JBT01.kicad_pcb

Tj01-ms51-heater controller PCB layout, top view — open source board by jbteja

About the Tj01-ms51-heater controller PCB

Tj01-ms51-heater controller is an open source PCB design by jbteja, published on GitHub under the MIT license. It is a 2-layer board measuring 100 × 100 mm, with 71 components from 34 distinct parts.

Other key parts include the MS51FB9AE, EL817, AMS1117-5V and MAX6675. By type, the board carries 27 connectors, 16 resistors, 10 capacitors, 4 ICs, 3 diodes and 2 switches.

It belongs with the sensors, test & measurement and displays & leds designs in this gallery.

From the project

A heater control system featuring deterministic operation, safety auto-cutoff, predefined timer modes, and temperature measurement using a K-type thermocouple.

A freelance heater controller project built around the Nuvoton MS51FB9AE. It delivers deterministic operation, safety auto-cutoff, preset timer modes, and temperature measurement using a K‑type thermocouple rated above 750°C.

The custom PCB includes a 16×2 LCD, MAX6675 thermocouple interface, a few switches, and a relay for heater control. The design prioritizes temperature safety and reliable performance in a demanding environment.

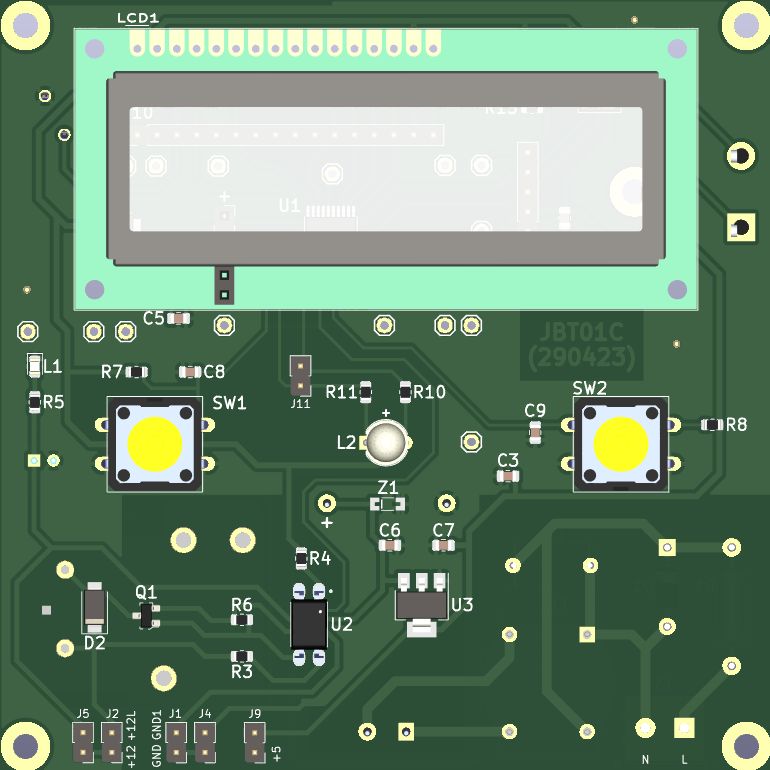

Tj01-ms51-heater controller, from the project README
From the project README

Main components on the Tj01-ms51-heater controller

MS51FB9AEEL817AMS1117-5VMAX6675

Tj01-ms51-heater controller bill of materials (BOM)

71 components, 34 distinct parts.

QtyPartRefs
1
MS51FB9AE
U1
1
EL817
U2
1
AMS1117-5V
U3
1
MAX6675
U4
1
MMBT2222A-TP
MMBT2222A
Micro Commercial Co
Q1
16
Conn_01x01_Male
CN1, CN2, CN3, CN4, CN5, CN6, CN7, CN8 +8
6
Conn_01x02
J1, J2, J4, J5, J9, J11
1
Screw_Terminal_01x02
J3
1
Screw_Terminal_01x02
J6
1
Conn_01x05
J7
1
Conn_01x05
J8
1
Conn_01x16
J10
1
Choke_10mH-0.5A
FL1
1
RELAY-T91-30A
K1
1
16X2
LCD1
1
SO12V300
PS1
1
10K-Pot
RV1
1
RED
SW1
1
GREEN
SW2
1
1N5231BTR
Zener(12.7V/1W)
ON Semiconductor
Z1
Show 14 more
QtyPartRefs
1
P6KE550
D1
2
1N4007
D2, D3
1
RED
L1
1
LED_Dual_KAK
L2
1
0.1uF/275VAC
C1
1
220uF/25V
C2
5
0.1uF/25V
C3, C4, C8, C9, C10
3
10uF/25V
C5, C6, C7
1
100E/1Watt
R1
9
10K
R2, R6, R7, R8, R9, R13, R14, R15 +1
1
2K2
R3
3
330E
R4, R10, R11
1
1K
R5
1
180E
R12

Tj01-ms51-heater controller design files

The KiCad project lives in the jbteja/tj01-ms51-heater-controller repository on GitHub; these links point at the commit this page was built from.

Tj01-ms51-heater controller: common questions

How big is the Tj01-ms51-heater controller PCB?

The Tj01-ms51-heater controller measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Tj01-ms51-heater controller?

71 components, from 34 distinct parts. The full bill of materials is listed on this page.

Where can I download the Tj01-ms51-heater controller design files?

From the jbteja/tj01-ms51-heater-controller repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Tj01-ms51-heater controller design in my own project?

Yes, under the terms of its MIT license, which jbteja chose for the repository.
