About the AfdDriver PCB

AfdDriver is an open source PCB design by jduanen, published on GitHub under the MIT license. It is a 2-layer board measuring 43.2 × 58.4 mm, with 51 components from 10 distinct parts.

Other key parts include the PCF8574TS and QTM3063T1. By type, the board carries 27 resistors, 9 ICs, 8 diodes, 5 connectors and 1 capacitor.

It belongs with the displays & leds, iot & wireless and power & battery designs in this gallery.

From the project

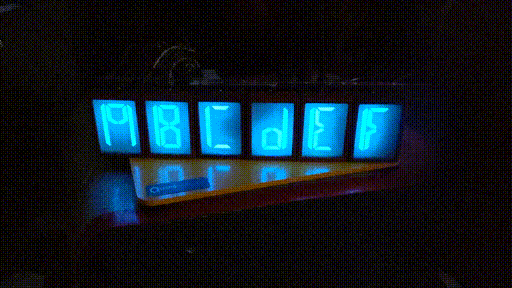

Display made of six eight-segment EL display units

Scrolling display board that displays whatever string is published on a given MQTT channel over WiFi.

These displays were used in Russian tanks and missile launch consoles.

Specs - 220VAC @ 400Hz - 0.5-3mA per display four displays: 12mA (max) six displays: 18mA (max) Design alternatives - drive audio amp into (CT?) step-up transformer - DC boost converter into H-Bridge

AfdDriver, from the project README
From the project README

Main components on the AfdDriver

PCF8574TSQTM3063T1

AfdDriver bill of materials (BOM)

51 components, 10 distinct parts.

QtyPartRefs
1
PCF8574TS
U1
8
QTM3063T1
QT Brightek
U2, U3, U4, U5, U6, U7, U8, U9
2
Qwiic_Connector
J1, J2
2
HighVoltageAC
J3, J4
1
Power
J5
1
IEL-O-VI_C63.396.208-02_SMD
DS1
8
Z0103MN
D1, D2, D3, D4, D5, D6, D7, D8
1
0.1 uFd
C1
3
10K Ohm
R1, R2, R3
24
390
R4, R5, R6, R7, R8, R9, R10, R11 +16

AfdDriver design files

The KiCad project lives in the jduanen/alienFontDisplay repository on GitHub; these links point at the commit this page was built from.

AfdDriver: common questions

How big is the AfdDriver PCB?

The AfdDriver measures 43.2 × 58.4 mm, has 2 copper layers and is 1.6002 mm thick.

How many components are on the AfdDriver?

51 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the AfdDriver design files?

From the jduanen/alienFontDisplay repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the AfdDriver design in my own project?

Yes, under the terms of its MIT license, which jduanen chose for the repository.
