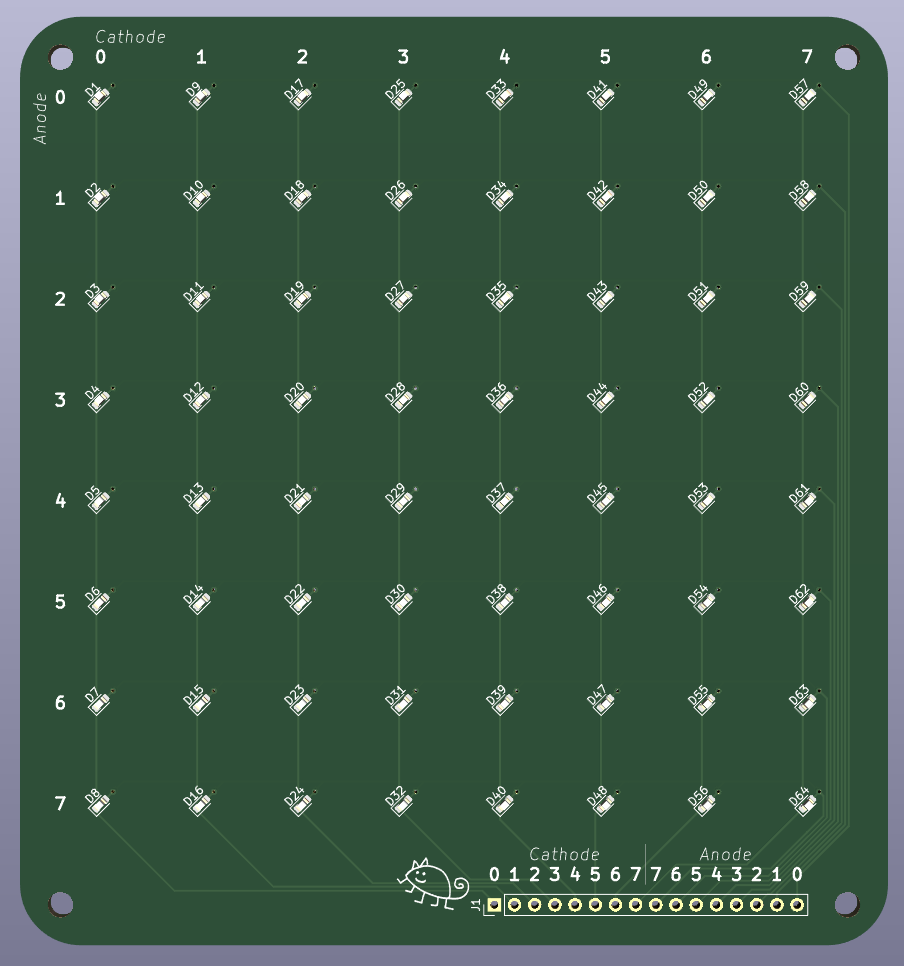

64-LED-Matrix PCB layout, top view — open source board by jedp

About the 64-LED-Matrix PCB

64-LED-Matrix is an open source PCB design by jedp, published on GitHub. It is a 2-layer board measuring 109.2 × 116.8 mm, with 65 components from 2 distinct parts.

By type, the board carries 64 diodes and 1 connector.

It belongs with the displays & leds and dev boards & breakouts designs in this gallery.

From the project

64 LED breakout board

64-LED-Matrix, from the project README
From the project README

64-LED-Matrix bill of materials (BOM)

65 components, 2 distinct parts.

QtyPartRefs
1
Conn_01x16_Female
J1
64
LED_Small
D1, D2, D3, D4, D5, D6, D7, D8 +56

64-LED-Matrix design files

The KiCad project lives in the jedp/64-LED-Matrix repository on GitHub; these links point at the commit this page was built from.

64-LED-Matrix: common questions

How big is the 64-LED-Matrix PCB?

The 64-LED-Matrix measures 109.2 × 116.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 64-LED-Matrix?

65 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the 64-LED-Matrix design files?

From the jedp/64-LED-Matrix repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the 64-LED-Matrix design in my own project?

The repository has no license, so all rights stay with jedp. Use it as a reference, and ask the author before reusing the design.
