About the MAX6951-64-LED-matrix PCB

MAX6951-64-LED-matrix is an open source PCB design by jedp, published on GitHub. It is a 2-layer board measuring 63 × 70.1 mm, with 65 components from 2 distinct parts.

By type, the board carries 64 diodes and 1 connector.

It belongs with the displays & leds and dev boards & breakouts designs in this gallery.

From the project

Charlieplexed 64-LED matrix for use with MAX6951 (breakout board)

MAX6951 64-LED Matrix ---------------------

A breakout board of 64 "charlieplexed" LEDs. For use with the MAX6951.

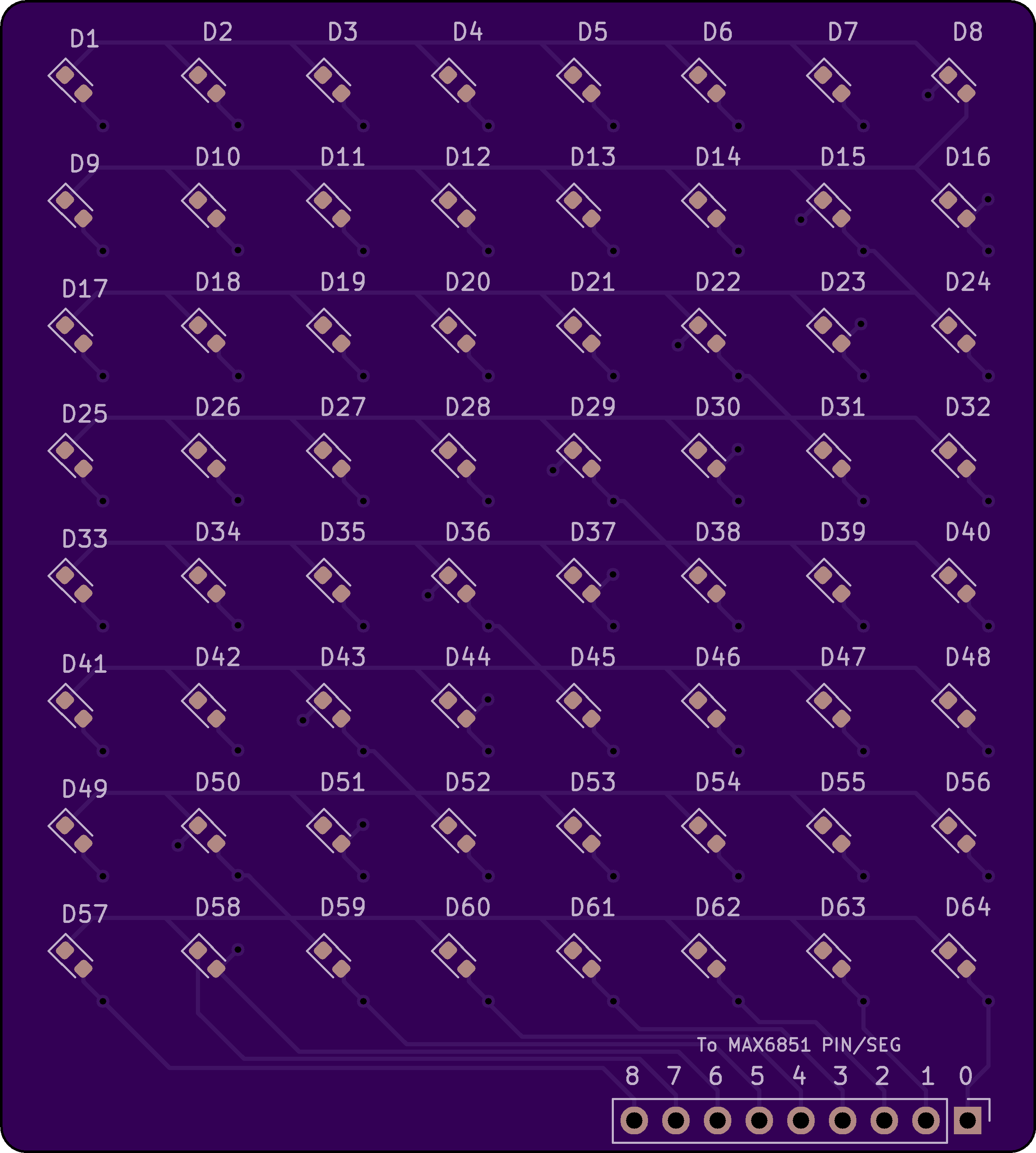

MAX6951-64-LED-matrix, from the project README
From the project README

MAX6951-64-LED-matrix bill of materials (BOM)

65 components, 2 distinct parts.

QtyPartRefs
1
Conn_01x09_Female
J1
64
LED_Small
D1, D2, D3, D4, D5, D6, D7, D8 +56

MAX6951-64-LED-matrix design files

The KiCad project lives in the jedp/MAX6951-64-LED-matrix repository on GitHub; these links point at the commit this page was built from.

MAX6951-64-LED-matrix: common questions

How big is the MAX6951-64-LED-matrix PCB?

The MAX6951-64-LED-matrix measures 63 × 70.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MAX6951-64-LED-matrix?

65 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the MAX6951-64-LED-matrix design files?

From the jedp/MAX6951-64-LED-matrix repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the MAX6951-64-LED-matrix design in my own project?

The repository has no license, so all rights stay with jedp. Use it as a reference, and ask the author before reusing the design.
