Saturn8DINMod

jeffqchen·Saturn8DINMod·KiCAD/Saturn 8pin mini DIN mod.kicad_pcb

Saturn8DINMod PCB layout, top view — open source board by jeffqchen

About the Saturn8DINMod PCB

Saturn8DINMod is an open source PCB design by jeffqchen, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 15 × 11 mm, with 5 components from 5 distinct parts.

By type, the board carries 2 connectors, 1 jumper, 1 capacitor and 1 resistor.

It belongs with the retro computing designs in this gallery.

From the project

8-pin mini DIN mod for Sega Saturn

This is a mod design with a PCB and a 3D printed shroud, for replacing a broken 10-pin mini DIN AV port on a Sega Saturn with an 8-pin mini DIN port. It will output an RGBS video signal and stereo audio, conforming to the XRGB pinout.

This design has been verified on NTSC model HST-3210 and HST-3220, as well as the Victor V-Saturn RG-JX2(Y). If your Saturn is from a different model, the metal shield might be incompatible with the 3D-printed piece. You might need to trim the piece or your metal shield in order for it to fit (or you could provide me with some measurements so I can design a…

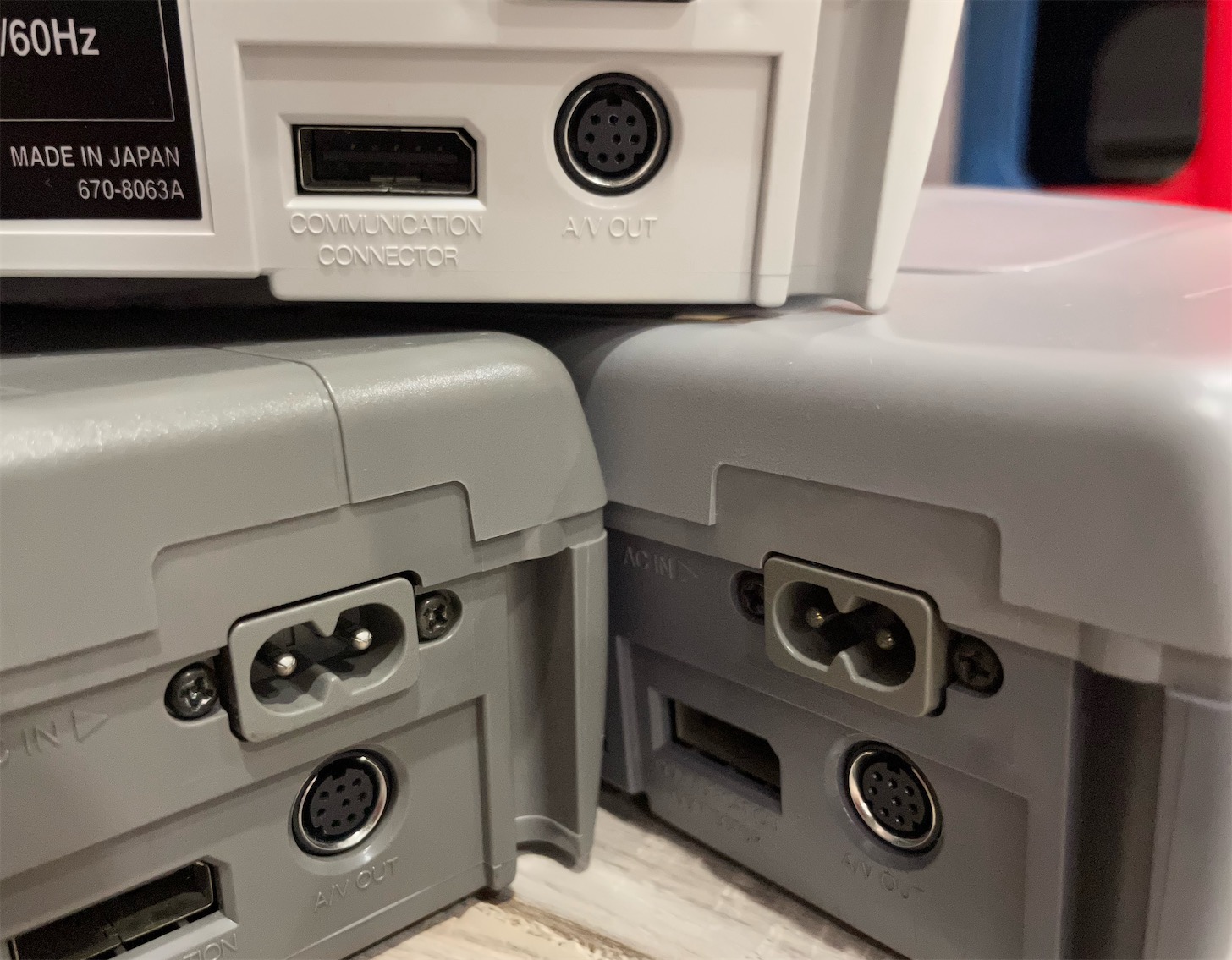

Saturn8DINMod, from the project README
From the project README

Saturn8DINMod bill of materials (BOM)

5 components, 5 distinct parts.

QtyPartRefs
1
Saturn_10_pin_Footprint
P1
1
8_pin_mini_DIN
P2
1
Luma Sync
JP1
1
100uF
C1
1
470
R1

Saturn8DINMod design files

The KiCad project lives in the jeffqchen/Saturn8DINMod repository on GitHub; these links point at the commit this page was built from.

Saturn8DINMod: common questions

How big is the Saturn8DINMod PCB?

The Saturn8DINMod measures 15 × 11 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Saturn8DINMod?

5 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the Saturn8DINMod design files?

From the jeffqchen/Saturn8DINMod repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Saturn8DINMod design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which jeffqchen chose for the repository.
