Oxygen concentrator

Jibin-Manual·Oxygen-concentrator·Electronics/o2-controller/o2-controller.kicad_pcb

Oxygen concentrator PCB layout, top view — open source AVR/Arduino board by Jibin-Manual

About the Oxygen concentrator PCB

Oxygen concentrator is an open source AVR/Arduino PCB design by Jibin-Manual, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 68.6 × 53.3 mm, with 34 components from 6 distinct parts.

Its main chip is the Arduino_UNO_R3_Shield, from the AVR/Arduino family. By type, the board carries 13 connectors, 9 transistors, 9 resistors, 2 capacitors and 1 module.

From the project

This is the RepRap Ltd repository for all the information, designs, and data for our open-source Oxygen Concentrator.

This is the RepRap Ltd repository for all the information, designs, and data for our open-source Oxygen Concentrator.

1. Flow diagram/design: finished. 2. Mechanical construction: finished. 3. Electronics: designed, made and tested. 4. Software: written, compiled, and tested. 5. Testing: ongoing.

Version 1 of this (up to commit 422aa3) didn't work because the air was not flowing through the zeolite in a smooth consistent manner under pressure. So this is now work-in-progress on Version 2 (from commit 3a930c0) which we hope will fix the problem.

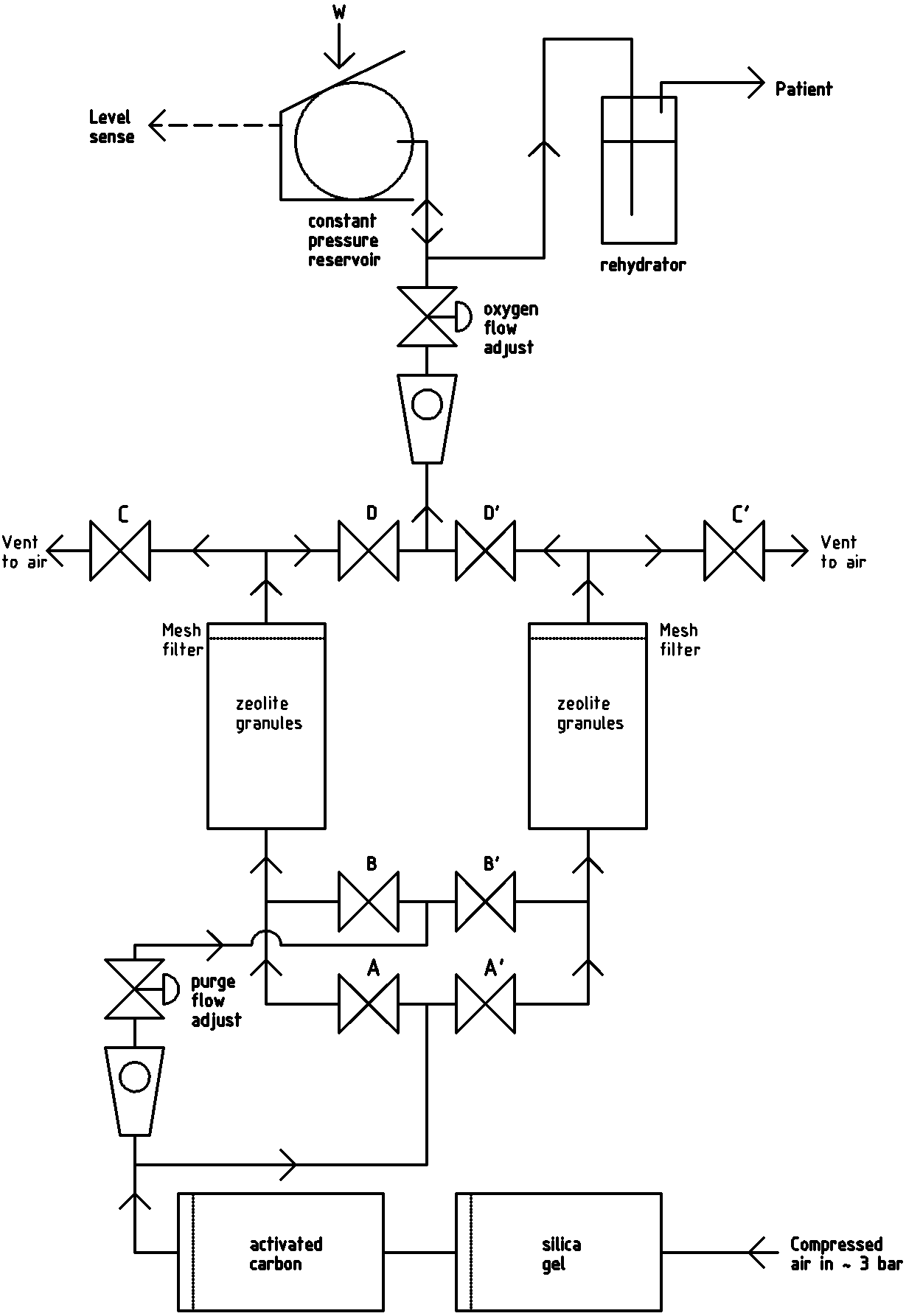

Oxygen concentrator, from the project README
From the project README

Main components on the Oxygen concentrator

Arduino_UNO_R3_Shield

Oxygen concentrator bill of materials (BOM)

34 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Arduino_UNO_R3_Shield
A1
9
DMN6075S
Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +1
13
Conn_01x02_Male
J1, J2, J3, J4, J5, J6, J7, J8 +5
1
0.1uF
C1
1
220uF
C2
9
10K
R1, R2, R3, R4, R5, R6, R7, R8 +1

Oxygen concentrator design files

The KiCad project lives in the Jibin-Manual/Oxygen-concentrator repository on GitHub; these links point at the commit this page was built from.

Oxygen concentrator: common questions

What microcontroller does the Oxygen concentrator use?

The Oxygen concentrator is built around the Arduino_UNO_R3_Shield, from the AVR/Arduino family.

How big is the Oxygen concentrator PCB?

The Oxygen concentrator measures 68.6 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Oxygen concentrator?

34 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Oxygen concentrator design files?

From the Jibin-Manual/Oxygen-concentrator repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Oxygen concentrator design in my own project?

Yes, under the terms of its GPL-3.0 license, which Jibin-Manual chose for the repository.

Can I test firmware for the Oxygen concentrator without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
