LED Cube 5X5X5

jkordek1·LedKocka5x5x5·KiCad files/LED_Cube_5X5X5/LED_Cube_5X5X5.kicad_pcb

LED Cube 5X5X5 PCB layout, top view — open source AVR/Arduino board by jkordek1

About the LED Cube 5X5X5 PCB

LED Cube 5X5X5 is an open source AVR/Arduino PCB design by jkordek1, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 59 components from 15 distinct parts.

Its main chip is the ATmega16-16PU, from the AVR/Arduino family. Other key parts include the 74HC595. By type, the board carries 35 resistors, 7 capacitors, 5 ICs, 5 transistors, 5 connectors and 1 crystal.

It belongs with the wearables designs in this gallery.

From the project

LED Cube 5X5X5

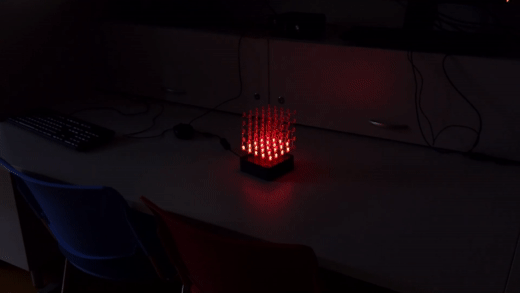

LED Cube 5X5X5, from the project README
From the project README

Main components on the LED Cube 5X5X5

ATmega16-16PU74HC595

LED Cube 5X5X5 bill of materials (BOM)

59 components, 15 distinct parts.

QtyPartRefs
1
ATmega16-16PU
U1
4
74HC595
U2, U3, U4, U5
5
BC337
Q1, Q2, Q3, Q4, Q5
1
16MHz
Y1
1
Barrel_Jack_MountingPin
J1
1
USBASP
J2
1
CON1
J3
1
CON2
J4
1
CON3
J5
1
RESET
SW1
2
22p
C1, C2
5
100n
C3, C4, C5, C6, C7
5
10k
R1, R4, R24, R34, R45
5
120
R5, R6, R7, R8, R9
25
680
R16, R17, R18, R19, R20, R21, R22, R23 +17

LED Cube 5X5X5 design files

The KiCad project lives in the jkordek1/LedKocka5x5x5 repository on GitHub; these links point at the commit this page was built from.

LED Cube 5X5X5: common questions

What microcontroller does the LED Cube 5X5X5 use?

The LED Cube 5X5X5 is built around the ATmega16-16PU, from the AVR/Arduino family.

How big is the LED Cube 5X5X5 PCB?

The LED Cube 5X5X5 measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LED Cube 5X5X5?

59 components, from 15 distinct parts. The full bill of materials is listed on this page.

Where can I download the LED Cube 5X5X5 design files?

From the jkordek1/LedKocka5x5x5 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the LED Cube 5X5X5 design in my own project?

The repository has no license, so all rights stay with jkordek1. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the LED Cube 5X5X5 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
