MC8P-Midi-Controller
About the MC8P-Midi-Controller PCB
MC8P-Midi-Controller is an open source NXP PCB design by joebmz98, published on GitHub under the MIT license. It is a 2-layer board measuring 155 × 92 mm, with 34 components from 16 distinct parts.
Its main chip is the Teensy4.0, from the NXP family. By type, the board carries 12 capacitors, 6 resistors, 4 switches, 2 connectors, 1 IC and 1 LED.
It belongs with the audio and displays & leds designs in this gallery.
From the project

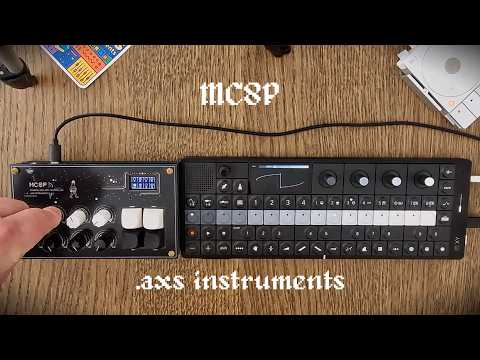

8 Potentiometer Standalone MIDI Controller based on the Teensy 4.0.
A customizable, open-source MIDI controller with 8 potentiometers, each supporting Up to 10 assignable MIDI CCs per Potentiometer, built around the Teensy 4.0 for high-performance MIDI control.
The interface is organized into several screens accessible from the main display:
MAIN SCREEN → MENU → SETTINGS → various configuration screens
This is your default operating view. The screen displays eight circular indicators, one for each potentiometer, showing current MIDI values (0-127). Each circle fills proportionally to the value being sent.
Main components on the MC8P-Midi-Controller
MC8P-Midi-Controller bill of materials (BOM)
34 components, 16 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Teensy4.0 | Teensy40 | U1 |
| 1 | MIDI OUT | Jack_3.5mm_CUI_SJ1-3525N_Horizontal_edit | J1 |
| 1 | 5V | BarrelJack_GCT_DCJ200-10-A_Horizontal | J2 |
| 8 | B100k | Potentiometer_RV09_BigPads | RV1, RV2, RV3, RV4, RV5, RV6, RV7, RV8 |
| 1 | ASSIGN | SW_Cherry_MX_1.00u_PCB | SW1 |
| 1 | ENTER | SW_Cherry_MX_1.00u_PCB | SW2 |
| 1 | PREV | SW_Cherry_MX_1.00u_PCB | SW3 |
| 1 | NEXT | SW_Cherry_MX_1.00u_PCB | SW4 |
| 1 | ~ | SSD1306_OLED_Module | SSD1306 |
| 8 | C_Generic | C_Axial_L3.8mm_D2.6mm_P7.50mm_Horizontal | C1, C2, C3, C4, C5, C6, C7, C8 |
| 1 | 100nF | C_Disc_D5.0mm_W2.5mm_P5.00mm | C9 |
| 1 | 10uF | C_Disc_D5.0mm_W2.5mm_P5.00mm | C10 |
| 1 | 100uF | CP_Radial_D4.0mm_P1.50mm | C11 |
| 1 | EEE-FN1A100R 10uF_4x5.3_10V Panasonic | CP_Radial_D4.0mm_P1.50mm | C12 |
| 4 | RT0402FRE0710KL 10k_0402 Yageo | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2, R3, R4 |
| 2 | RT0402FRE0710KL 220R Yageo | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R5, R6 |
MC8P-Midi-Controller design files
The KiCad project lives in the joebmz98/MC8P-Midi-Controller repository on GitHub; these links point at the commit this page was built from.
MC8P-Midi-Controller: common questions
What microcontroller does the MC8P-Midi-Controller use?
The MC8P-Midi-Controller is built around the Teensy4.0, from the NXP family.
How big is the MC8P-Midi-Controller PCB?
The MC8P-Midi-Controller measures 155 × 92 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MC8P-Midi-Controller?
34 components, from 16 distinct parts. The full bill of materials is listed on this page.
Where can I download the MC8P-Midi-Controller design files?
From the joebmz98/MC8P-Midi-Controller repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the MC8P-Midi-Controller design in my own project?
Yes, under the terms of its MIT license, which joebmz98 chose for the repository.
Can I test firmware for the MC8P-Midi-Controller without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
