Thonkiconn breadboard adapter v3

joem·thonkiconn_breadboard_adapter_v3

Thonkiconn breadboard adapter v3 PCB layout, top view — open source board by joem

About the Thonkiconn breadboard adapter v3 PCB

Thonkiconn breadboard adapter v3 is an open source PCB design by joem, published on GitHub. It is a 2-layer board measuring 24.1 × 21 mm, with 4 components from 2 distinct parts.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Thonkiconn Breadboard Adapter V3 ================================

Thonkiconn Breadboard Adapter V3 ================================

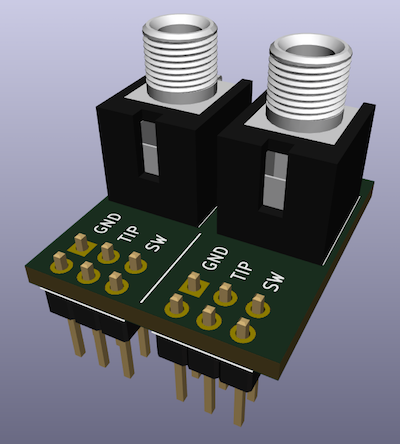

My second attempt at a breadboard adapter for using "Thonkiconn"-style 3.5mm mono jacks. These jacks can plug directly into a breadboard but they’re not very secure, so a breadboard adapter with more pins is a nice way to secure it. Also I tend to forget which pin is which when using other adapters that I’ve found. Sometimes I use the jack board from Mutable Instrument's Breadboard Friends, but other times the connections to the rails are not what I want, or I don't want to use both sides of the breadboard.

Thonkiconn breadboard adapter v3, from the project README
From the project README

Thonkiconn breadboard adapter v3 bill of materials (BOM)

4 components, 2 distinct parts.

QtyPartRefs
2
AudioJack2_SwitchT
J1, J2
2
Conn_02x03_Odd_Even
J3, J4

Thonkiconn breadboard adapter v3 design files

The KiCad project lives in the joem/thonkiconn_breadboard_adapter_v3 repository on GitHub; these links point at the commit this page was built from.

Thonkiconn breadboard adapter v3: common questions

How big is the Thonkiconn breadboard adapter v3 PCB?

The Thonkiconn breadboard adapter v3 measures 24.1 × 21 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Thonkiconn breadboard adapter v3?

4 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Thonkiconn breadboard adapter v3 design files?

From the joem/thonkiconn_breadboard_adapter_v3 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Thonkiconn breadboard adapter v3 design in my own project?

The repository has no license, so all rights stay with joem. Use it as a reference, and ask the author before reusing the design.
