Avrisp mkII

joshajohnson·avrisp-mkII·hardware/0.1/avrisp-mkII.kicad_pcb

Avrisp mkII PCB layout, top view — open source AVR/Arduino board by joshajohnson

About the Avrisp mkII PCB

Avrisp mkII is an open source AVR/Arduino PCB design by joshajohnson, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 51.3 × 17 mm, with 42 components from 29 distinct parts.

Its main chip is the AT90USB162-16AU, from the AVR/Arduino family. Other key parts include the USBLC6-2SC6, AP2112K-3.3 and MCP130-xxxxTT. By type, the board carries 12 capacitors, 10 resistors, 6 diodes, 4 ICs, 4 connectors and 2 switches.

From the project

Atmel AVRISP MKII

AVRISP-MKII clone, in a small form factor with USB Type C connector.

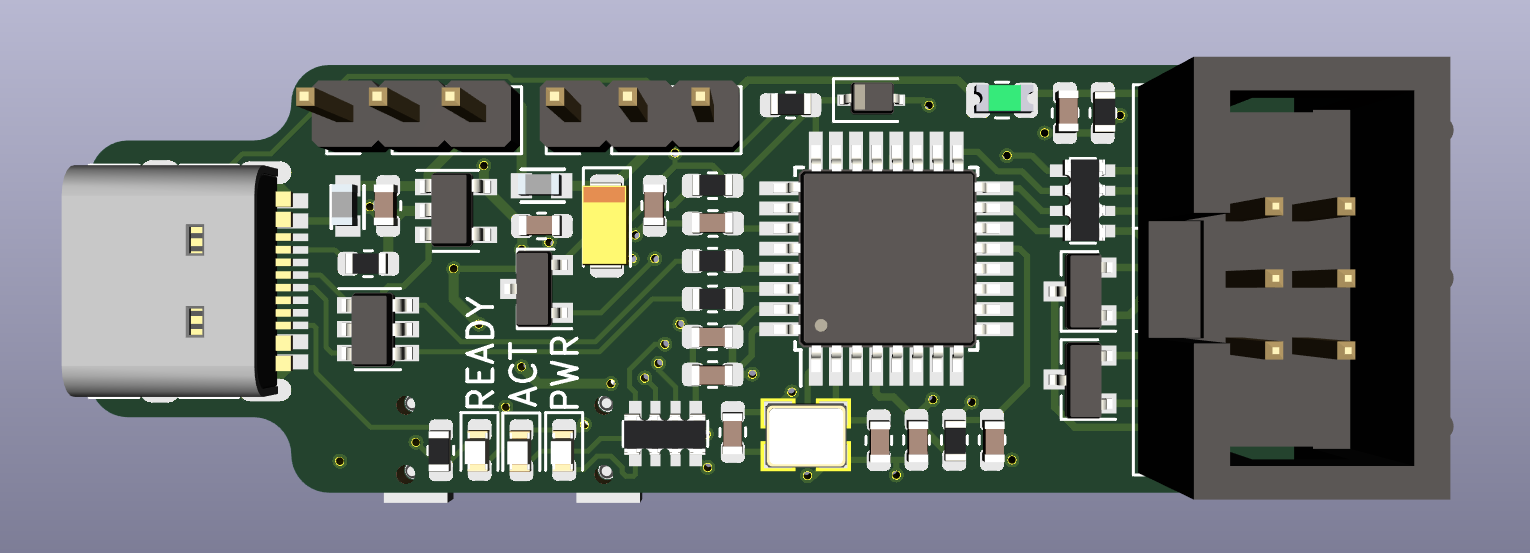

Avrisp mkII, from the project README
From the project README

Main components on the Avrisp mkII

USBLC6-2SC6AP2112K-3.3MCP130-xxxxTTAT90USB162-16AU

Avrisp mkII bill of materials (BOM)

42 components, 29 distinct parts.

QtyPartRefs
1
USBLC6-2SC6
U1
1
AP2112K-3.3
U2
1
MCP130-xxxxTT
U3
1
AT90USB162-16AU
U4
1
16MHz
Y1
1
USB_C_Receptacle_USB2.0
J1
2
2.54 THT
J2, J3
1
AVR ISP
J4
1
100mA
F1
1
RST
SW1
1
SW_Push
SW2
1
1N4148
D1
1
PWR
D2
1
STAT
D3
2
BAT54C
D4, D6
1
ACT
D5
2
600R
FB1, FB2
3
1u
C1, C2, C7
5
100n
C3, C8, C9, C10, C12
1
100u
C4
Show 9 more
QtyPartRefs
2
22P
C5, C6
1
10u
C11
2
5K1
R1, R2
1
10K
R3
1
100R
R4
2
22R
R5, R6
1
1M
R8
1
200R
R9
2
1K
RN1, RN2

Avrisp mkII design files

The KiCad project lives in the joshajohnson/avrisp-mkII repository on GitHub; these links point at the commit this page was built from.

Avrisp mkII: common questions

What microcontroller does the Avrisp mkII use?

The Avrisp mkII is built around the AT90USB162-16AU, from the AVR/Arduino family.

How big is the Avrisp mkII PCB?

The Avrisp mkII measures 51.3 × 17 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Avrisp mkII?

42 components, from 29 distinct parts. The full bill of materials is listed on this page.

Where can I download the Avrisp mkII design files?

From the joshajohnson/avrisp-mkII repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Avrisp mkII design in my own project?

Yes, under the terms of its CERN-OHL-1.2 license, which joshajohnson chose for the repository.

Can I test firmware for the Avrisp mkII without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
