Attiny48
About the Attiny48 PCB
Attiny48 is an open source AVR/Arduino PCB design by joshnuss, published on GitHub. It is a 2-layer board measuring 20.3 × 19.3 mm, with 10 components from 9 distinct parts.
Its main chip is the ATtiny88-AU, from the AVR/Arduino family. By type, the board carries 5 connectors, 2 resistors, 1 IC, 1 diode and 1 capacitor.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

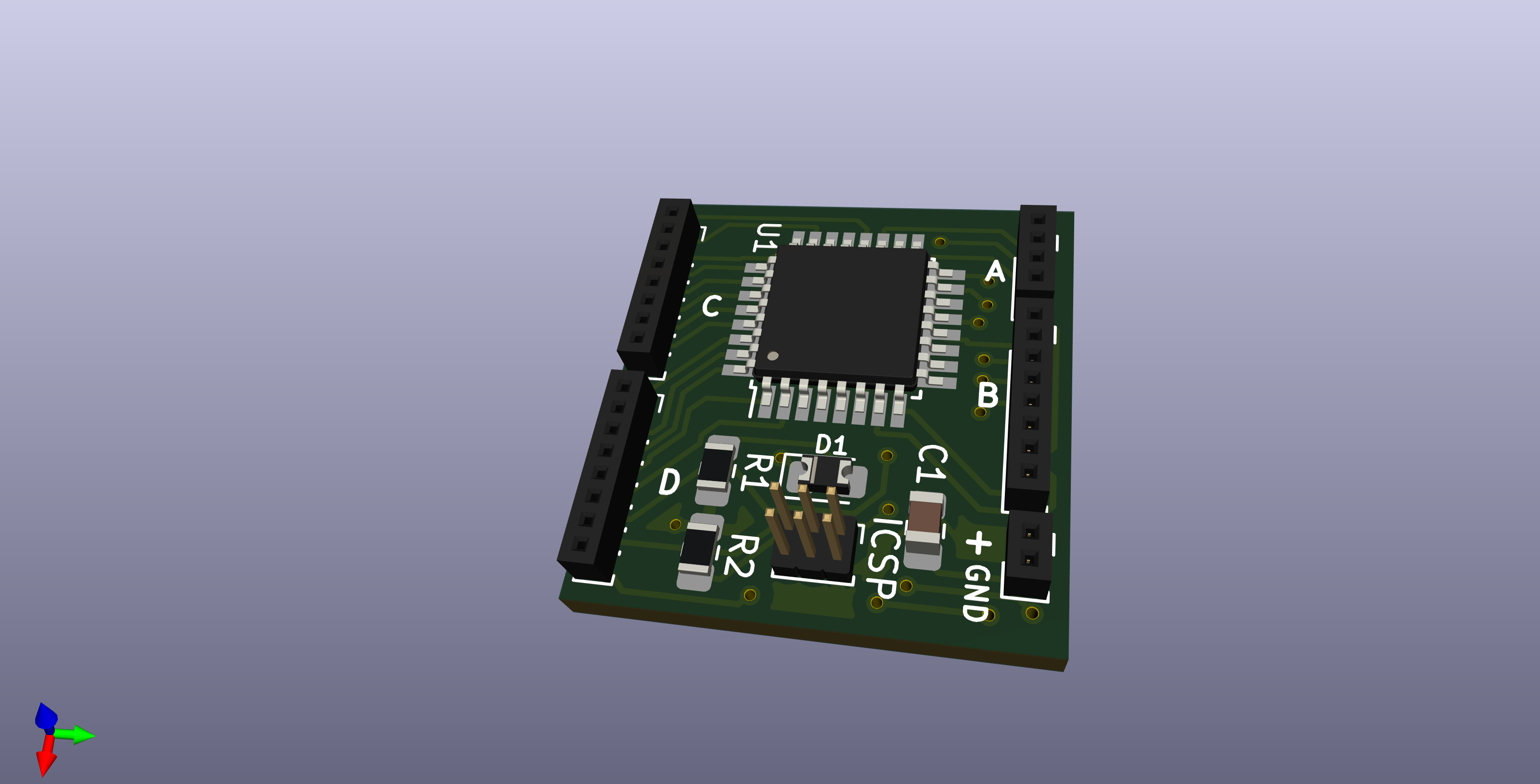

Devboard for ATtiny 48/88
Development breakout board for Atmel ATTINY48/88.
Main components on the Attiny48
Attiny48 bill of materials (BOM)
10 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ATtiny88-AU | TQFP-32_7x7mm_P0.8mm | U1 |
| 1 | POWER | PinSocket_1x02_P1.00mm_Vertical | J1 |
| 1 | PORTA | PinSocket_1x04_P1.00mm_Vertical | J2 |
| 1 | PORTB | PinSocket_1x08_P1.00mm_Vertical | J3 |
| 1 | PORTC | PinSocket_1x08_P1.00mm_Vertical | J4 |
| 1 | PORTD | PinSocket_1x08_P1.00mm_Vertical | J5 |
| 1 | LED | D_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D1 |
| 1 | 100u | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C1 |
| 2 | R | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R1, R2 |
Attiny48 design files
The KiCad project lives in the joshnuss/attiny48 repository on GitHub; these links point at the commit this page was built from.
- Layoutattiny48.kicad_pcb
Attiny48: common questions
What microcontroller does the Attiny48 use?
The Attiny48 is built around the ATtiny88-AU, from the AVR/Arduino family.
How big is the Attiny48 PCB?
The Attiny48 measures 20.3 × 19.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Attiny48?
10 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the Attiny48 design files?
From the joshnuss/attiny48 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Attiny48 design in my own project?
The repository has no license, so all rights stay with joshnuss. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Attiny48 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
