Kicad template arduino nano shield

joustava·kicad-template-arduino-nano-shield

Kicad template arduino nano shield layout, top view — open source board by joustava

About the Kicad template arduino nano shield

Kicad template arduino nano shield is an open source PCB design by joustava, published on GitHub under the MIT license. It is a 2-layer board measuring 45.7 × 18 mm, with 2 components from 1 distinct parts.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Arduino Nano Shield template project for KiCad EDA

Download or clone this GitHub repository to your KiCad user templates directory

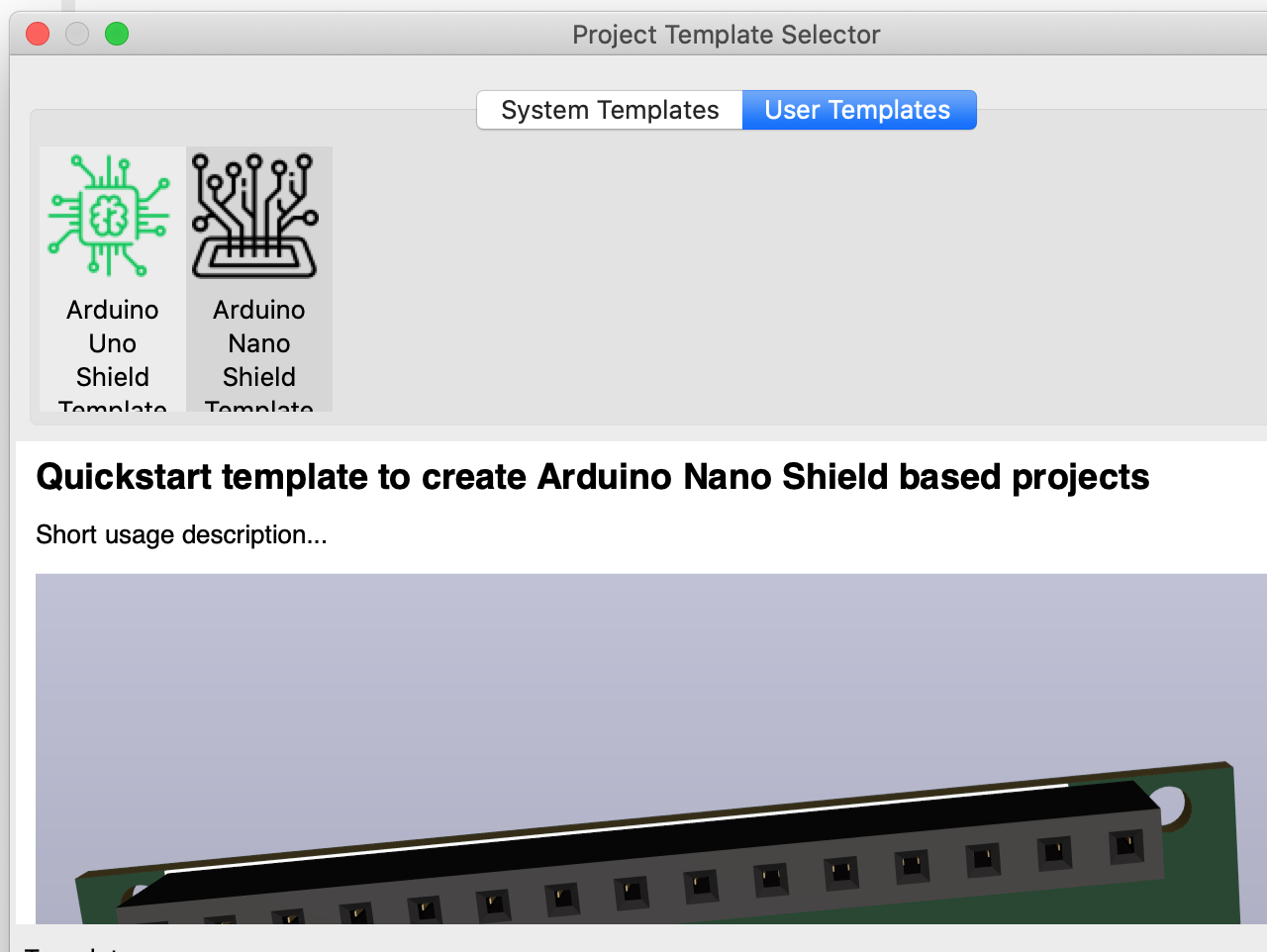

1. Open KiCad 2. Choose: "create a new project from template" 3. In the "Project Template Selector" choose "User Templates" tab 4. Browse to the directory where your user templates are 5. Select the template and go design!

Pull requests are welcome. For major changes, please open an issue first to discuss what you would like to change. Please make sure to update docs as appropriate.

Kicad template arduino nano shield, from the project README
From the project README

Kicad template arduino nano shield bill of materials (BOM)

2 components, 1 distinct parts.

QtyPartRefs
2
Conn_01x15
J1, J3

Kicad template arduino nano shield design files

The KiCad project lives in the joustava/kicad-template-arduino-nano-shield repository on GitHub; these links point at the commit this page was built from.

Kicad template arduino nano shield: common questions

How big is the Kicad template arduino nano shield?

The Kicad template arduino nano shield measures 45.7 × 18 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kicad template arduino nano shield?

2 components, from 1 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kicad template arduino nano shield design files?

From the joustava/kicad-template-arduino-nano-shield repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Kicad template arduino nano shield design in my own project?

Yes, under the terms of its MIT license, which joustava chose for the repository.
