About the ERGODASH-MOD-ENCH-OLED-QMK VIA PCB

ERGODASH-MOD-ENCH-OLED-QMK VIA is an open source AVR/Arduino PCB design by juarendra, published on GitHub. It is a 2-layer board measuring 150.6 × 127.4 mm, with 115 components from 16 distinct parts.

Its main chip is the ProMicro_2-Lily58-cache, from the AVR/Arduino family. Other key parts include the HOLE. By type, the board carries 47 diodes, 40 switches, 11 jumpers, 8 ICs, 4 connectors and 2 resistors.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

Documentation of product ERGODASH MOD with OLED and KNOB that use QMK as Firmware and Suppot VIA

- LALT(KCTAB) - Sends Alt-Tab - LCTL(KCC) - Sends Ctrl-C - LGUI(KCC) - Sends Cmd-C or Win-C - LSFT(LCTL(KCEND)) - Sends Shift-Ctrl-End - MO(1) - Momentarily turn on layer 1 - LCA(KCDEL) - Sends Ctrl-Alt-Del - MT(MODRSFT, KC_ENT) - Sends Shift if held, Enter if tapped - MACRO (0) - macro 0

https://github.com/juarendra/Zeapad-Pro-QMK-VIA/assets/43043633/afd7e68e-0a54-4b18-be12-b96c0f13611a

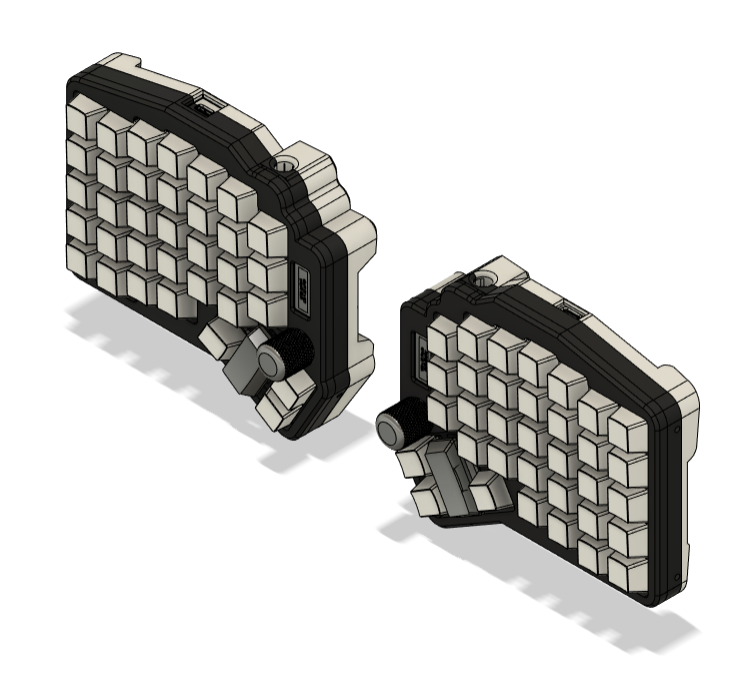

ERGODASH-MOD-ENCH-OLED-QMK VIA, from the project README
From the project README

Main components on the ERGODASH-MOD-ENCH-OLED-QMK VIA

HOLEProMicro_2-Lily58-cache

ERGODASH-MOD-ENCH-OLED-QMK VIA bill of materials (BOM)

115 components, 16 distinct parts.

QtyPartRefs
7
HOLE
U1, U2, U4, U5, U7, U8, U9
1
ProMicro_2-Lily58-cache
U6
1
i2c_pin-Lily58-cache
J1
2
Conn_01x03
J2, J3
1
OLED-Lily58-cache
J6
1
D-Lily58-cache
D_1
10
Jumper_NO_Small-Device
JP1, JP2, JP3, JP4, JP5, JP6, JP7, JP8 +2
1
Jumper_NC_Small-Device
JP10
1
SW_PUSH
RST_SW1
2
SW_PUSH
SW13, SW14
37
SW_PUSH-Lily58-cache
SW42, SW43, SW44, SW45, SW46, SW47, SW48, SW49 +29
1
Rotary_Encoder_Switch-Device
SW57
1
Audio-Jack-4
TRRS1
35
D
D1, D2, D3, D4, D5, D6, D7, D8 +27
12
YAEMK_SK6812MINI-E
D35, D36, D37, D38, D39, D40, D41, D42 +4
2
4.7k
R1, R2

ERGODASH-MOD-ENCH-OLED-QMK VIA design files

The KiCad project lives in the juarendra/ERGODASH-MOD-ENCH-OLED-QMK_VIA repository on GitHub; these links point at the commit this page was built from.

ERGODASH-MOD-ENCH-OLED-QMK VIA: common questions

What microcontroller does the ERGODASH-MOD-ENCH-OLED-QMK VIA use?

The ERGODASH-MOD-ENCH-OLED-QMK VIA is built around the ProMicro_2-Lily58-cache, from the AVR/Arduino family.

How big is the ERGODASH-MOD-ENCH-OLED-QMK VIA PCB?

The ERGODASH-MOD-ENCH-OLED-QMK VIA measures 150.6 × 127.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ERGODASH-MOD-ENCH-OLED-QMK VIA?

115 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the ERGODASH-MOD-ENCH-OLED-QMK VIA design files?

From the juarendra/ERGODASH-MOD-ENCH-OLED-QMK_VIA repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ERGODASH-MOD-ENCH-OLED-QMK VIA design in my own project?

The repository has no license, so all rights stay with juarendra. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the ERGODASH-MOD-ENCH-OLED-QMK VIA without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
