6502-bb
About the 6502-bb PCB
6502-bb is an open source PCB design by justjoheinz, published on GitHub. It is a 2-layer board measuring 128.9 × 81.3 mm, with 3 components from 2 distinct parts.
It belongs with the retro computing designs in this gallery.
From the project

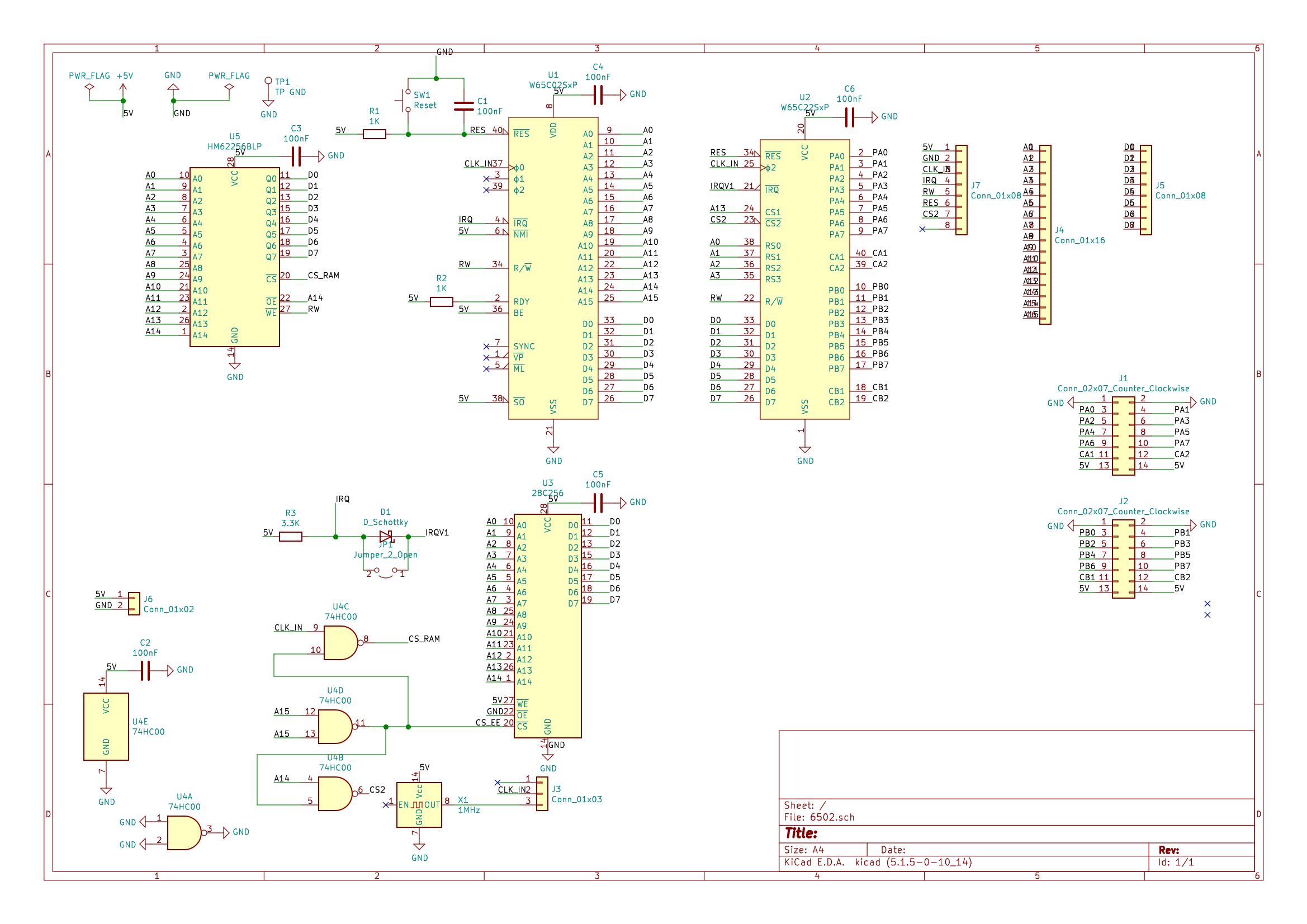

Ben Eater inspired 6052 microcomputer. Kicad files.
6502-bb bill of materials (BOM)
3 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x16 | PinSocket_1x16_P2.54mm_Vertical | J4 |
| 2 | Conn_01x08 | PinSocket_1x08_P2.54mm_Vertical | J5, J7 |
6502-bb design files
The KiCad project lives in the justjoheinz/6502 repository on GitHub; these links point at the commit this page was built from.
- Layout6502-bb.kicad_pcb
6502-bb: common questions
How big is the 6502-bb PCB?
The 6502-bb measures 128.9 × 81.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 6502-bb?
3 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the 6502-bb design files?
From the justjoheinz/6502 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the 6502-bb design in my own project?
The repository has no license, so all rights stay with justjoheinz. Use it as a reference, and ask the author before reusing the design.
