Octogone Sans Regle

juthomas·Electronics_MDMA·MDMA_KICAD_V2/Octogone_Sans_Regle copy/Octogone_Sans_Regle.kicad_pcb

Octogone Sans Regle PCB layout, top view — open source AVR/Arduino board by juthomas

About the Octogone Sans Regle PCB

Octogone Sans Regle is an open source AVR/Arduino PCB design by juthomas, published on GitHub. It is a 2-layer board measuring 130.4 × 124 mm, with 106 components from 25 distinct parts.

Its main chip is the ATmega2560-16AU, from the AVR/Arduino family. Other key parts include the TFT_2.4, NCP1117-3.3_SOT223 and CH340C. By type, the board carries 64 resistors, 13 transistors, 13 capacitors, 8 connectors, 4 ICs and 2 switches.

From the project

Sommaire : Description Installation Usage Visual Studio Code Linter Project Functionalities Leds Control Prerequisites Leds Variables Color Attribution Usefull Functions

Sommaire : Description Installation Usage Visual Studio Code Linter Project Functionalities Leds Control Prerequisites Leds Variables Color Attribution Usefull Functions

Cet objet à été conçu sur les bases d’un témoignage perturbant à la date du 27 juin 2007 sur le forum ████ par l’utilisateur Chri████4. Il y fait mention d’un jeu à boire avec ses amis où ils auraient décidé d'invoquer Satan aux alentours de 23h42. La soirée aurait tourné en une cruelle mission de subjugation du malin avec pour seule arme l’alcool en grande quantité qu’ils avaient préparé pour faire la fête. Suite à cette…

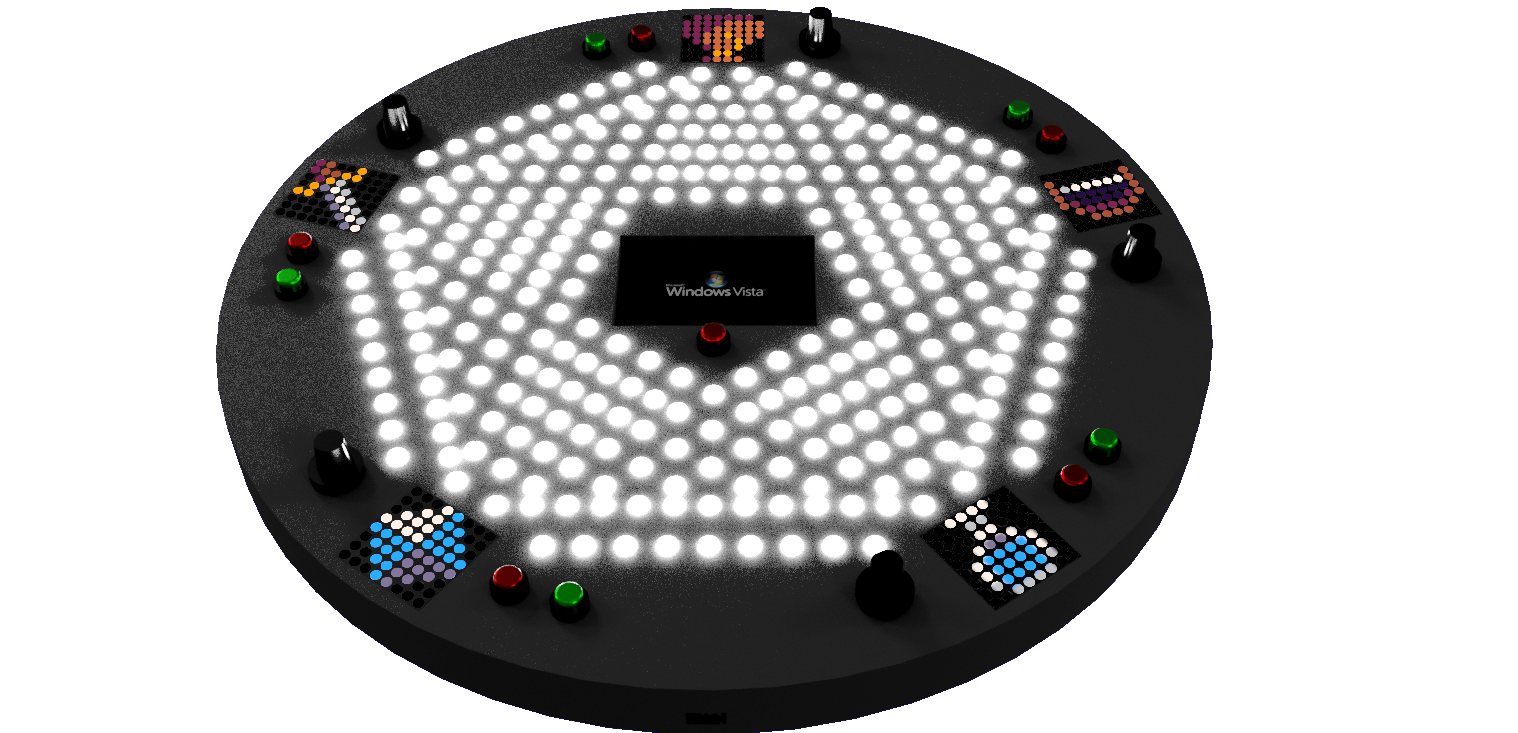

Octogone Sans Regle, from the project README
From the project README

Main components on the Octogone Sans Regle

ATmega2560-16AUTFT_2.4NCP1117-3.3_SOT223CH340C

Octogone Sans Regle bill of materials (BOM)

106 components, 25 distinct parts.

QtyPartRefs
1
ATmega2560-16AU
U1
1
TFT_2.4
U2
1
NCP1117-3.3_SOT223
U3
1
CH340C
U4
13
BSS138
Q1, Q2, Q4, Q5, Q6, Q7, Q8, Q9 +5
1
16mHz
Y1
1
Jack-DC
J1
1
AVR-ISP-6
J2
5
Switch_Pin_out
P1, P2, P3, P4, P5
1
USB_C_Plug_USB2.0
P7
1
Buzzer
BZ1
1
SW_Push_LED
SW1
1
SW_Push_LED
SW2
2
22pF
C1, C8
2
10uF
C2, C3
4
470uF
C4, C5, C6, C7
3
100nF
C9, C10, C17
1
10nF
C11
1
10uF
C16
28
10k
R1, R2, R4, R5, R6, R11, R12, R13 +20
Show 5 more
QtyPartRefs
5
300_Ohm
R3, R15, R25, R41, R51
26
R_10k
R7, R8, R9, R10, R19, R20, R21, R22 +18
2
1K
R59, R60
1
0hm
R61
2
5.1k
R64, R65

Octogone Sans Regle design files

The KiCad project lives in the juthomas/Electronics_MDMA repository on GitHub; these links point at the commit this page was built from.

Octogone Sans Regle: common questions

What microcontroller does the Octogone Sans Regle use?

The Octogone Sans Regle is built around the ATmega2560-16AU, from the AVR/Arduino family.

How big is the Octogone Sans Regle PCB?

The Octogone Sans Regle measures 130.4 × 124 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Octogone Sans Regle?

106 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the Octogone Sans Regle design files?

From the juthomas/Electronics_MDMA repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Octogone Sans Regle design in my own project?

The repository has no license, so all rights stay with juthomas. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Octogone Sans Regle without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
