Jammanator pi
About the Jammanator pi PCB
Jammanator pi is an open source PCB design by KabukiFlux, published on GitHub under the MIT license. It is a 2-layer board measuring 132.5 × 105.8 mm, with 142 components from 37 distinct parts.
Other key parts include the MCP23017_SO_PLAYER1, MCP23017_SO_PLAYER2, PAM8403 PCB, 74HC86 and LM1117IMPX-3.3/NOPB. By type, the board carries 32 diodes, 16 connectors, 16 capacitors, 16 resistors, 9 ICs and 5 jumpers.
From the project

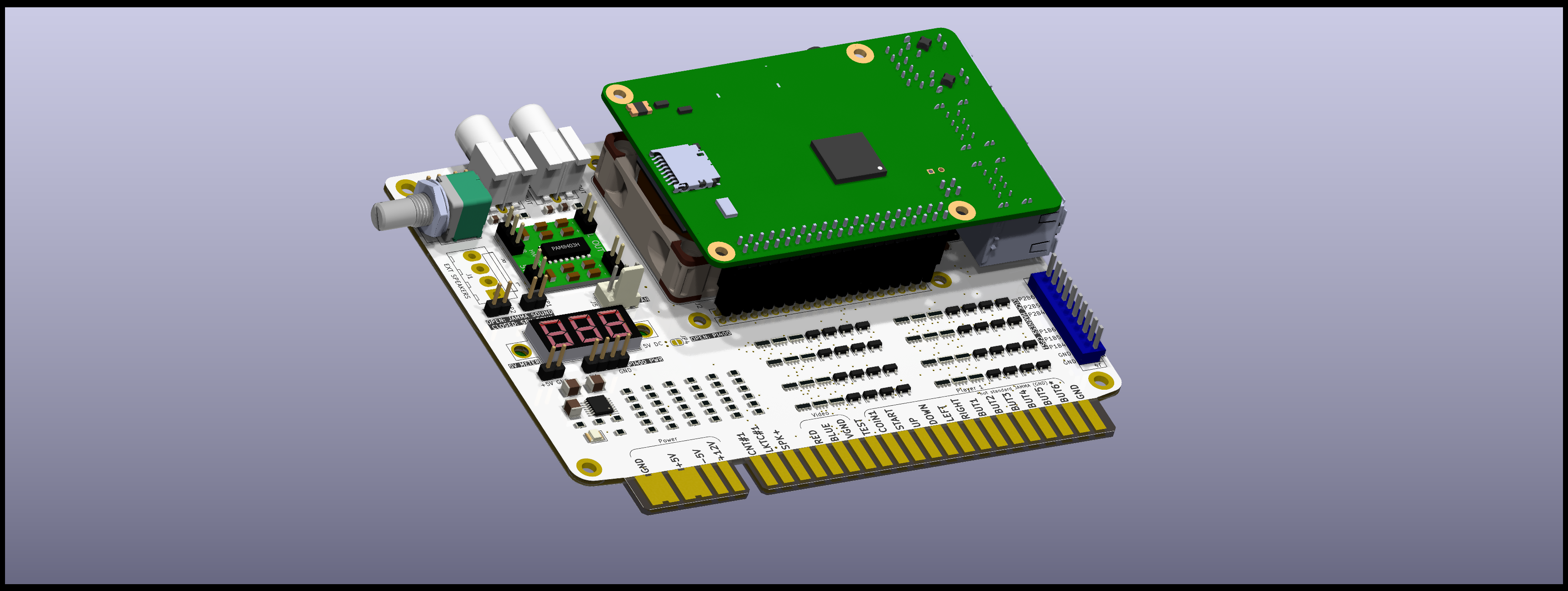

JAMMANATOR the Raspberry Pi jamma board
- Why - Description - Schematics - Install - Pics and final result
This was done during some live events on Twitch.tv and tested for some time.
This is a very old design for Raspberry Pi 3B+, 4, 400, it no longer has the status that anybody can make money and make profit of it so I decided to publish it, if you have an arcade cabinet with JAMMA a spare Raspberry Pi 3B+ or 4 and you want to have something running then is a matter of burning the rgbpiOS or the recalboxOS and you have everything you need to make it work.
Main components on the Jammanator pi
Jammanator pi bill of materials (BOM)
142 components, 37 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MCP23017_SO_PLAYER1 | SSOP-28_5.3x10.2mm_P0.65mm | U1 |
| 1 | MCP23017_SO_PLAYER2 | SSOP-28_5.3x10.2mm_P0.65mm | U2 |
| 1 | PAM8403 PCB | PAM8403_module | U3 |
| 1 | 74HC86 | TSSOP-14_4.4x5mm_P0.65mm | U4 |
| 1 | LM1117IMPX-3.3/NOPB | SOT-223-3_TabPin2 | U5 |
| 4 | SN74LVC244APWR | TSSOP-20_4.4x6.5mm_P0.65mm | U6, U7, U8, U9 |
| 8 | 100n | C_Array_Convex_4x0612 | CN1, CN2, CN3, CN4, CN5, CN6, CN7, CN8 |
| 1 | SPEAKER_STEREO MOLEX396 | Molex_KK-396_A-41791-0004_1x04_P3.96mm_Vertical | J1 |
| 1 | CONN_02X20 | GPIO_2x20_P2.54mm_Vertical_Tall_w_Standoffs | J2 |
| 1 | JAMMA_edge | JAMMA_edge | J3 |
| 1 | Kick Harness (CPS1 pinout) | B10P-SHF-1AA | J4 |
| 1 | FAN_5v | Molex_KK-254_AE-6410-03A_1x03_P2.54mm_Vertical | J5 |
| 1 | AUDIO L OUT | CUI_RCJ-043 | J6 |
| 1 | AUDIO R OUT | CUI_RCJ-043 | J7 |
| 1 | RP400_USB | USB_A_Molex_67643_Horizontal | J10 |
| 1 | 1P_B6_CHAMMA_JAMMA | PinHeader_1x03_P2.54mm_Vertical | JP1 |
| 1 | 2P_B6_CHAMMA_JAMMA | PinHeader_1x03_P2.54mm_Vertical | JP2 |
| 1 | PI_400_DISCONNECT | PinHeader_1x03_P2.54mm_Vertical | JP3 |
| 1 | JAMMA_SPK_DIS_+ | PinHeader_1x03_P2.54mm_Vertical | JP4 |
| 1 | JAMMA_SPK_DIS_- | PinHeader_1x03_P2.54mm_Vertical | JP5 |
Show 17 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Voltmeter_DC | PinHeader_1x02_P2.54mm_Vertical | MES1 |
| 18 | 475 | R_0805_2012Metric | RB1, RB2, RB3, RB4, RB5, RB6, RG1, RG2 +10 |
| 18 | 240 | R_0805_2012Metric | RB7, RB8, RB9, RB10, RB11, RB12, RG7, RG8 +10 |
| 2 | 10k | R_0805_2012Metric | RI2C1, RI2C2 |
| 1 | 1k | R_0805_2012Metric | RLED1 |
| 2 | 220 | R_0805_2012Metric | RPWM1, RPWM2 |
| 2 | 4k7 | R_0805_2012Metric | RS1, RS2 |
| 1 | 100 | R_0805_2012Metric | RS3 |
| 1 | 10k | Potentiometer_Alps_RK097_Dual_Horizontal | RV2 |
| 1 | Voltmeter Mechanical | voltmeter | VM1 |
| 1 | LED RED | LED_1210_3225Metric_Pad1.42x2.65mm_HandSolder | DPWR1 |
| 32 | BAT54S | SOT-23 | D1, D2, D3, D4, D5, D6, D7, D8 +24 |
| 9 | 0.1u | C_0805_2012Metric | C1, C4, C16, C17, C18, C50, C51, C52 +1 |
| 2 | 470n | C_0805_2012Metric | C2, C3 |
| 5 | 10u | C_1210_3225Metric_Pad1.33x2.70mm_HandSolder | C10, C11, C12, C13, C15 |
| 8 | 1k | R_Array_Concave_4x0603 | RN1, RN3, RN5, RN7, RN9, RN11, RN13, RN15 |
| 8 | 10k | R_Array_Concave_4x0603 | RN2, RN4, RN6, RN8, RN10, RN12, RN14, RN16 |
Jammanator pi design files
The KiCad project lives in the KabukiFlux/jammanator-pi repository on GitHub; these links point at the commit this page was built from.
- Layoutkicad/jamma_raspi.kicad_pcb
- Schematickicad/jamma_raspi.kicad_sch
Jammanator pi: common questions
How big is the Jammanator pi PCB?
The Jammanator pi measures 132.5 × 105.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Jammanator pi?
142 components, from 37 distinct parts. The full bill of materials is listed on this page.
Where can I download the Jammanator pi design files?
From the KabukiFlux/jammanator-pi repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Jammanator pi design in my own project?
Yes, under the terms of its MIT license, which KabukiFlux chose for the repository.
