kaleb973·MiniMac·PCB/KiCad Work.kicad_pcb

MiniMac PCB layout, top view — open source board by kaleb973

About the MiniMac PCB

MiniMac is an open source PCB design by kaleb973, published on GitHub under the MIT license. It is a 2-layer board measuring 113.9 × 111.1 mm, with 34 components from 4 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 16 switches, 16 diodes, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

Presenting Mini Mac. This is an external keypad to serve as functions that my current keyboard uses function keys for, like screenshot, which is (fn + u). This project will serve as a huge productivity upgrade.

I am also requesting a grant for a soldering iron (obviously with solder) for this project from Hack Club.

I used heatset inserts and M3x16mm screws for the case.

It has a simple Top and Bottom. The PCB sits in the middle.

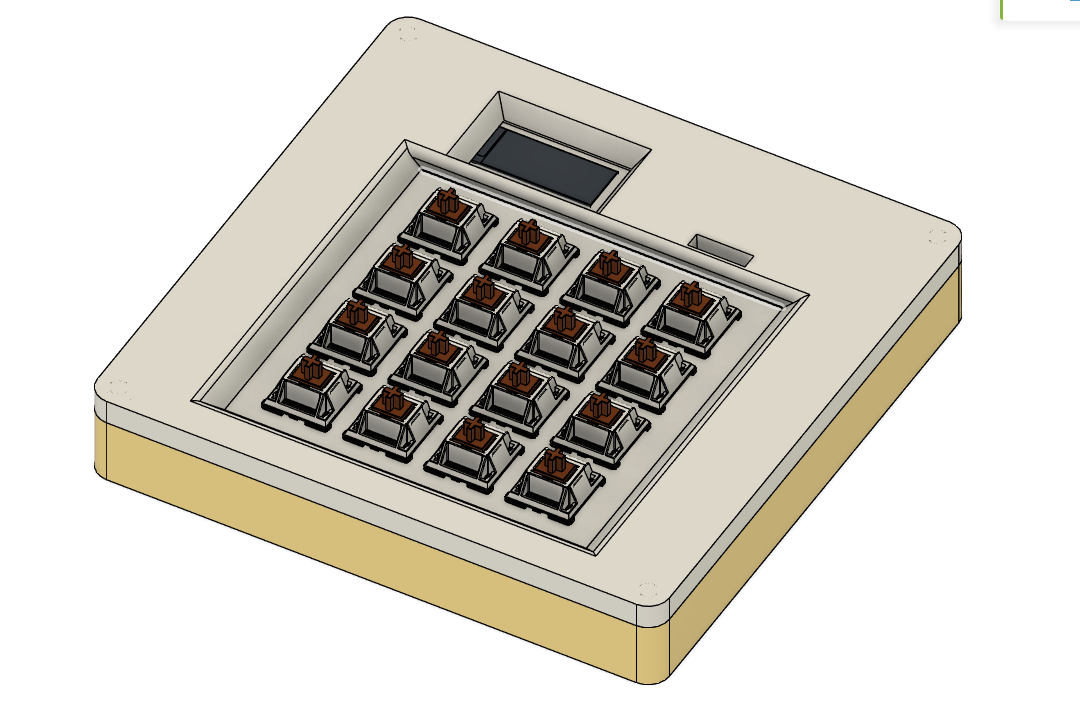

This image displays the full model with the PCB inside.

I intend to change the keys occasionally.

MiniMac, from the project README
From the project README

Main components on the MiniMac

MOUDLE-SEEEDUINO-XIAO

MiniMac bill of materials (BOM)

34 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MOUDLE-SEEEDUINO-XIAO
U1
1
OLED_128x32
J1
16
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +8
16
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +8

MiniMac design files

The KiCad project lives in the kaleb973/MiniMac repository on GitHub; these links point at the commit this page was built from.

MiniMac: common questions

How big is the MiniMac PCB?

The MiniMac measures 113.9 × 111.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MiniMac?

34 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the MiniMac design files?

From the kaleb973/MiniMac repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the MiniMac design in my own project?

Yes, under the terms of its MIT license, which kaleb973 chose for the repository.
