EgHub PCB layout, top view — open source board by karhincheong

About the EgHub PCB

EgHub is an open source PCB design by karhincheong, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 66.5 × 89.2 mm, with 33 components from 7 distinct parts.

Other key parts include the SL2.1s and USBLC6-2SC6. By type, the board carries 16 capacitors, 6 ICs and 6 resistors.

It belongs with the usb & debug tools designs in this gallery.

From the project

PCB Keychain for Hackclub Fallout

A 4-port output USB Hub keychain in the shape of an egg as a tribute to my friends. Main IC being CoreChips SL2.1S

This project is meant to be a try-out project for Fallout. It is to function as a primer for me to learn to make/design a PCB and at the same time make something useful.

You may choose to hand solder the components onto the PCB.

1. Print out the top and bottom covers using a 3D Printer. 2. Screw M3 screws into the 3 screw holes to an adequate tightness such that it doesnt damage the USB receptacles. Take note of the postition of the input USB-C.

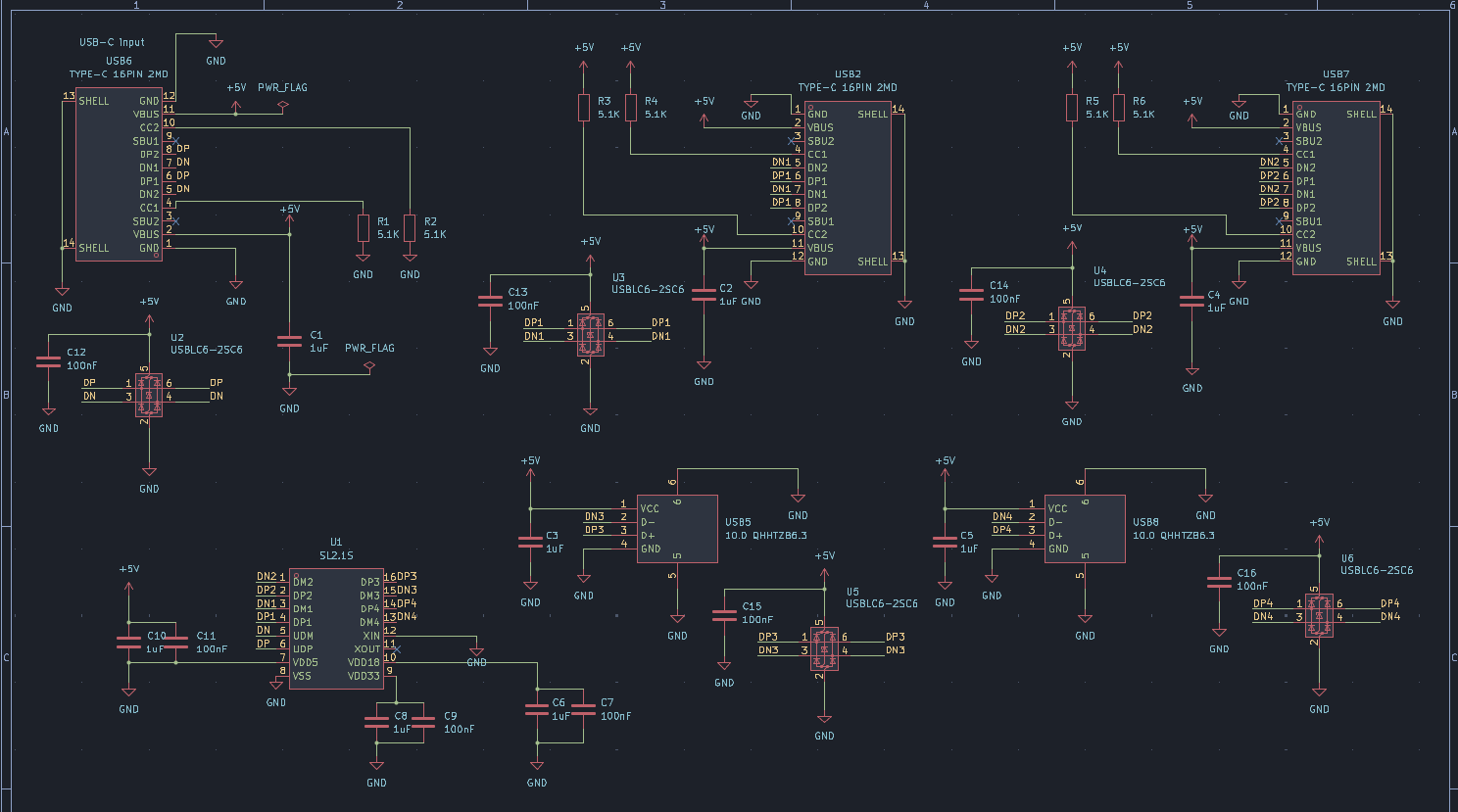

EgHub, from the project README
From the project README

Main components on the EgHub

SL2.1sUSBLC6-2SC6

EgHub bill of materials (BOM)

33 components, 7 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SL2.1s
SL2.1S
CoreChips(和芯润德)
U1
5
USBLC6-2SC6
U2, U3, U4, U5, U6
3
TYPE-C 16PIN 2MD(073)
TYPE-C 16PIN 2MD
SHOU HAN(首韩)
USB2, USB6, USB7
2
10.0 QHHTZB6.3
SHOU HAN(首韩)
USB5, USB8
8
1UF
1uF
C1, C2, C3, C4, C5, C6, C8, C10
8
100NF
100nF
C7, C9, C11, C12, C13, C14, C15, C16
6
5.1K
R1, R2, R3, R4, R5, R6

EgHub design files

The KiCad project lives in the karhincheong/EgHub repository on GitHub; these links point at the commit this page was built from.

EgHub: common questions

How big is the EgHub PCB?

The EgHub measures 66.5 × 89.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the EgHub?

33 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the EgHub design files?

From the karhincheong/EgHub repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the EgHub design in my own project?

Yes, under the terms of its GPL-3.0 license, which karhincheong chose for the repository.
