NE8FDV Breakout

karlcswanson·CatPatch·TSCBreakoutBoard/TSCBreakoutBoard.kicad_pcb

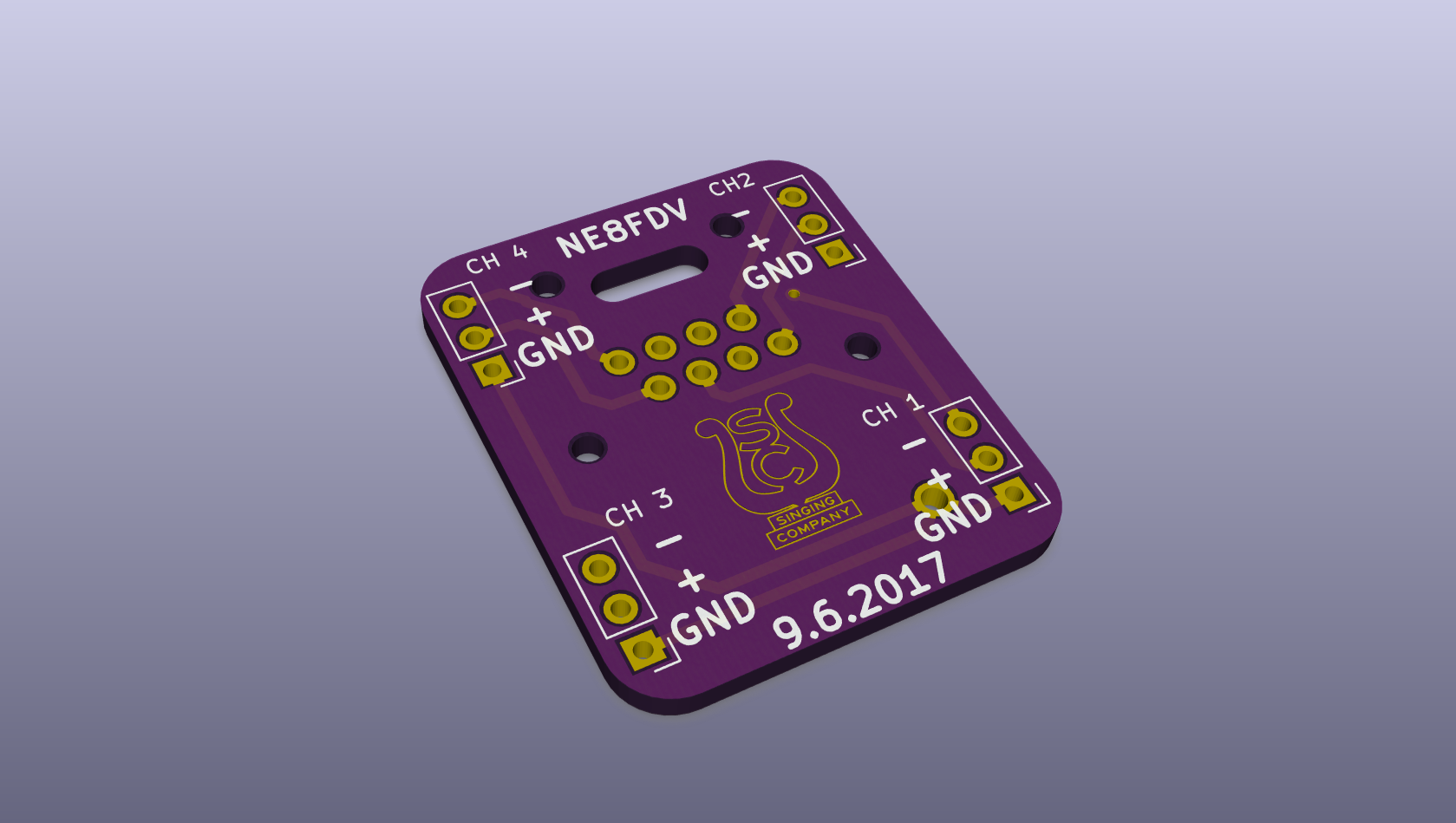

NE8FDV Breakout layout, top view — open source board by karlcswanson
Simulate this board

About the NE8FDV Breakout

NE8FDV Breakout is an open source PCB design by karlcswanson, published on GitHub under the MIT license. It is a 2-layer board measuring 26 × 31 mm, with 5 components from 5 distinct parts.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

PCB Designs for a subsnake system

This repository contains images and KiCad files for a CAT5e subsnake and DI system.

A brief build log for the DI and breakout cable can be found here.

Dynamic mics and passive DIs may work without the recommended shield.

The simplest configuration of the board requires a transformer and 6k81Ω resistor. A stereo summing circuit can be added with a few resistors. See the schematic and the classic RaneNote for more details.

NE8FDV Breakout, from the project README
From the project README

NE8FDV Breakout bill of materials (BOM)

5 components, 5 distinct parts.

QtyPartRefs
1
CH 1
J1
1
CH2
J2
1
CH 3
J3
1
CH 4
J4
1
RJ45
J5
