Sharp memory display breakout
About the Sharp memory display breakout
Sharp memory display breakout is an open source PCB design by karnadii, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 35.6 × 22 mm, with 11 components from 7 distinct parts.
By type, the board carries 3 connectors, 3 capacitors, 3 resistors and 2 inductors.
It belongs with the displays & leds, keyboards and dev boards & breakouts designs in this gallery.
From the project

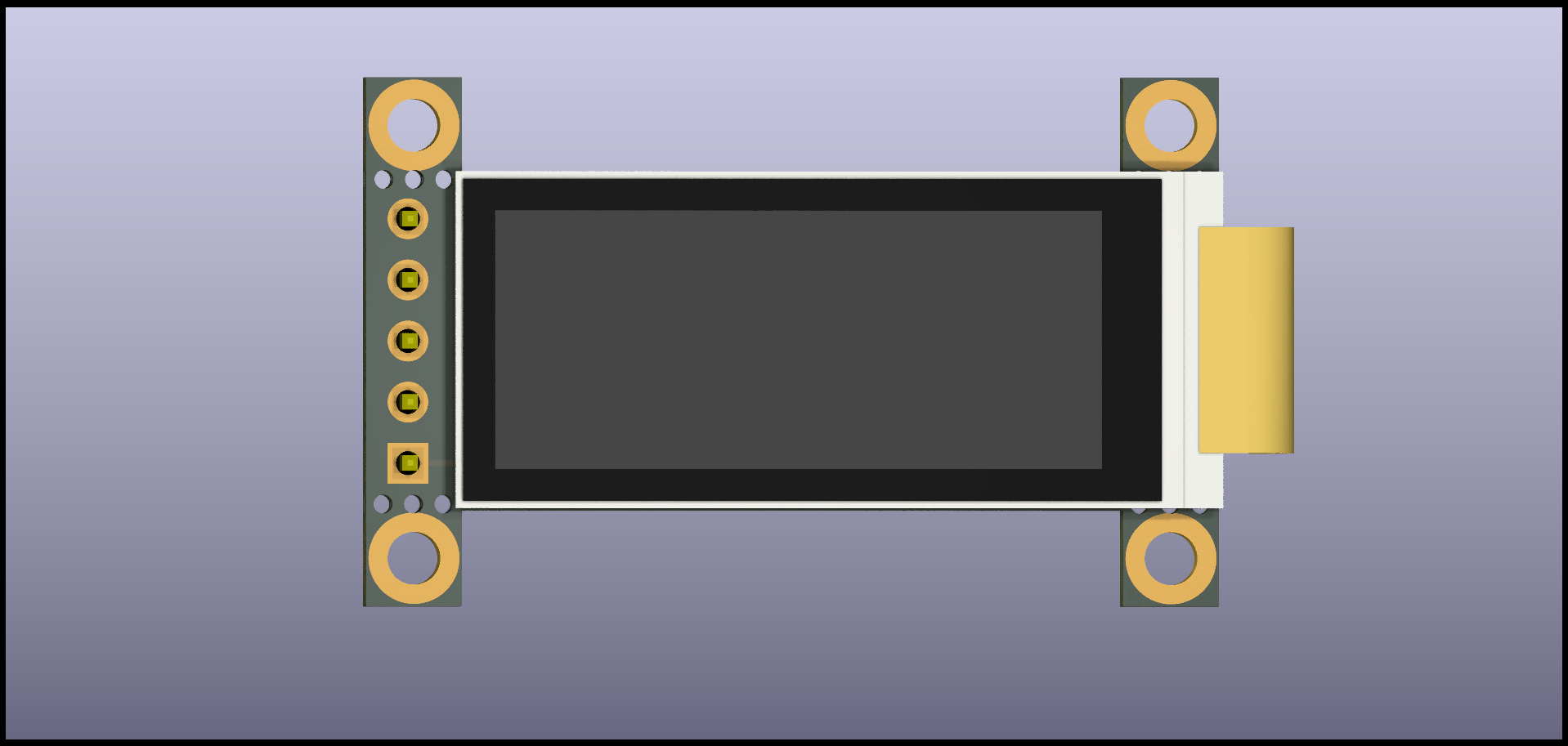

Sharp memory display breakout for LS011B7DH03
A breakout board for the Sharp LS011B7DH03, a 1.1-inch, 160x68 pixel monochrome memory display. This display is ideal for low-power applications like wireless keyboards due to its e-paper-like characteristics (~10µA power draw) and high refresh rate (30Hz).
This project is designed to be as small as possible, using fewer components than the Adafruit memory display breakout.
Sharp memory display breakout bill of materials (BOM)
11 components, 7 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x05 | PinSocket_1x05_P2.54mm_Vertical | J1 |
| 1 | C506791 Conn_01x10 | Hirose_FH12-10S-0.5SH_1x10-1MP_P0.50mm_Horizontal | J2 |
| 1 | Conn_01x05_Male | JST_SH_SM05B-SRSS-TB_1x05-1MP_P1.00mm_Horizontal | J3 |
| 2 | C1017 Ferrite_Bead_Small | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | FB1, FB2 |
| 1 | C84721 560pF/680pF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1 |
| 2 | C15849 1uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C2, C3 |
| 3 | C25804 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2, R3 |
Sharp memory display breakout design files
The KiCad project lives in the karnadii/sharp_memory_display_breakout repository on GitHub; these links point at the commit this page was built from.
Sharp memory display breakout: common questions
How big is the Sharp memory display breakout?
The Sharp memory display breakout measures 35.6 × 22 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Sharp memory display breakout?
11 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Sharp memory display breakout design files?
From the karnadii/sharp_memory_display_breakout repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Sharp memory display breakout design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which karnadii chose for the repository.
