DA14531MOD-Breakout layout, top view — open source board by kattaliraees

About the DA14531MOD-Breakout

DA14531MOD-Breakout is an open source PCB design by kattaliraees, published on GitHub under the MIT license. It is a 2-layer board measuring 30.1 × 30 mm, with 3 components from 2 distinct parts.

Other key parts include the DA14531MOD-00F01002. By type, the board carries 2 connectors and 1 IC.

It belongs with the dev boards & breakouts, rf & radio and iot & wireless designs in this gallery.

From the project

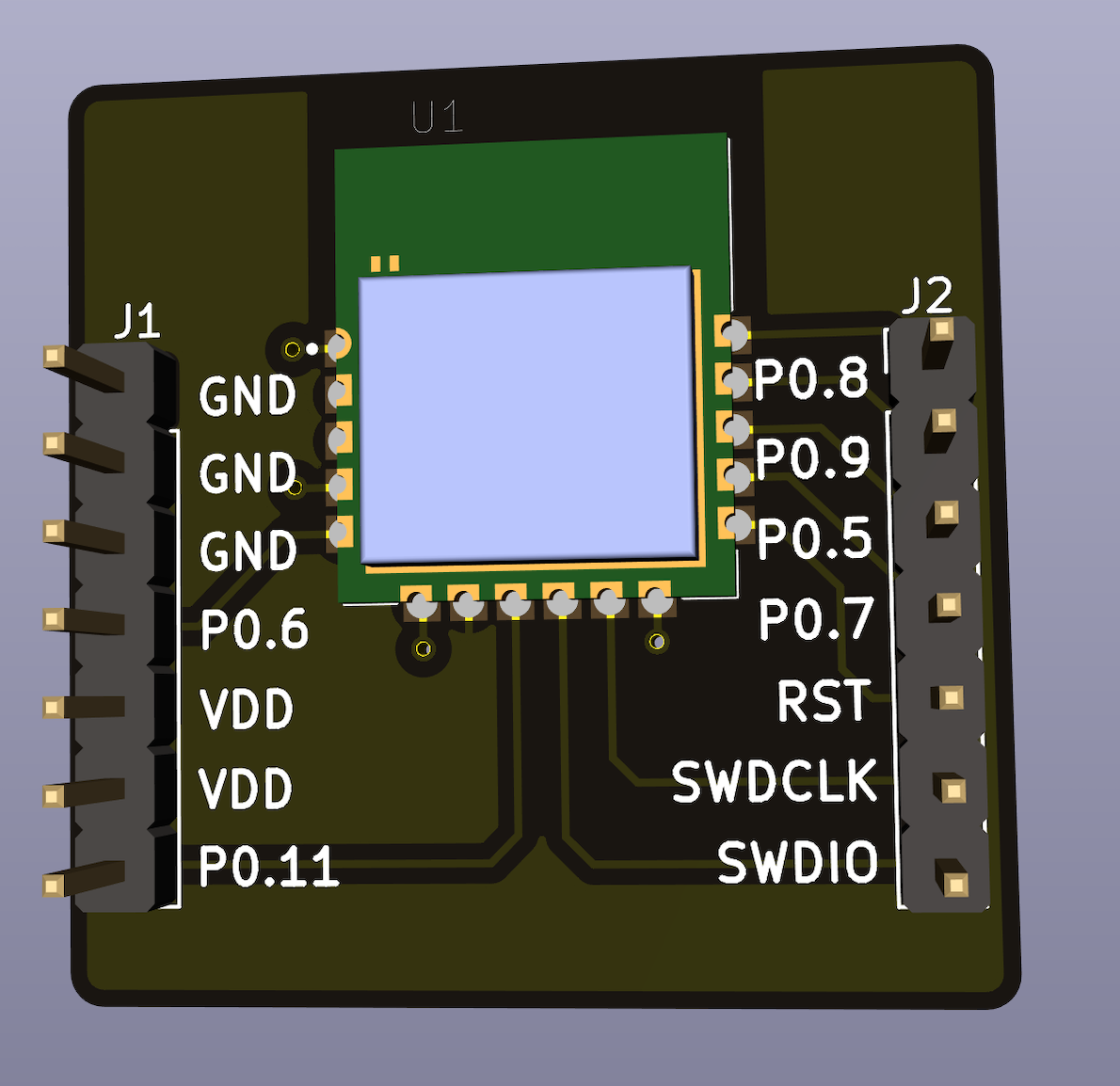

DA14531MOD-Breakout board

DA14531MOD-Breakout, from the project README
From the project README

Main components on the DA14531MOD-Breakout

DA14531MOD-00F01002

DA14531MOD-Breakout bill of materials (BOM)

3 components, 2 distinct parts.

QtyPartRefs
1
DA14531MOD-00F01002
U1
2
Conn_01x07
J1, J2

DA14531MOD-Breakout design files

The KiCad project lives in the kattaliraees/DA14531MOD-Breakout repository on GitHub; these links point at the commit this page was built from.

DA14531MOD-Breakout: common questions

How big is the DA14531MOD-Breakout?

The DA14531MOD-Breakout measures 30.1 × 30 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the DA14531MOD-Breakout?

3 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the DA14531MOD-Breakout design files?

From the kattaliraees/DA14531MOD-Breakout repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the DA14531MOD-Breakout design in my own project?

Yes, under the terms of its MIT license, which kattaliraees chose for the repository.
