Blink Eras

kbob·Blink-Eras·KiCAD/Blink Eras.kicad_pcb

Blink Eras PCB layout, top view — open source AVR/Arduino board by kbob

About the Blink Eras PCB

Blink Eras is an open source AVR/Arduino PCB design by kbob, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 27.9 × 20.3 mm, with 12 components from 12 distinct parts.

Its main chip is the ATTINY85-M, from the AVR/Arduino family. Other key parts include the ICM7555. By type, the board carries 4 resistors, 2 ICs, 2 diodes, 2 capacitors, 1 connector and 1 battery holder.

From the project

First KiCAD project. Learn KiCAD, blink an LED.

Blinking an LED as it was done in the 1970s (555) and the 1990s (AVR).

I am using this project to learn KiCAD and SMT fabrication. Also learning to use pogo pins to flash a microcontroller.

I designed and built a jig to hold pogo pins against the board's ISP headers to program the AVR. In the end, I did not use the jig; it did not press the pogo pins against the contacts hard enough to make a solid connection.

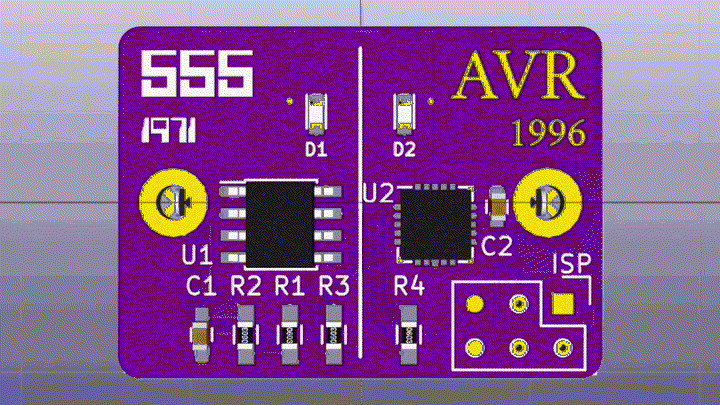

Blink Eras, from the project README
From the project README

Main components on the Blink Eras

ICM7555ATTINY85-M

Blink Eras bill of materials (BOM)

12 components, 12 distinct parts.

QtyPartRefs
1
ICM7555
U1
1
ATTINY85-M
U2
1
ISP
P1
1
CR2032
BT1
1
Red
D1
1
Green
D2
1
1µ
C1
1
1µ
C2
1
1K
R1
1
470K
R2
1
68
R3
1
56
R4

Blink Eras design files

The KiCad project lives in the kbob/Blink-Eras repository on GitHub; these links point at the commit this page was built from.

Blink Eras: common questions

What microcontroller does the Blink Eras use?

The Blink Eras is built around the ATTINY85-M, from the AVR/Arduino family.

How big is the Blink Eras PCB?

The Blink Eras measures 27.9 × 20.3 mm, has 2 copper layers and is 1.6002 mm thick.

How many components are on the Blink Eras?

12 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Blink Eras design files?

From the kbob/Blink-Eras repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Blink Eras design in my own project?

Yes, under the terms of its CC-BY-4.0 license, which kbob chose for the repository.
