LED-Cube
About the LED-Cube PCB
LED-Cube is an open source Raspberry Pi PCB design by kbob, published on GitHub. It is a 4-layer board measuring 70 × 80 mm, with 85 components from 46 distinct parts.
Its main chip is the Raspberry Pi, from the Raspberry Pi family. Other key parts include the LMZ14203TZX-ADJ/NOPB, TPS53819ARGTR, CSD86360Q5D, MPU-9250 and ADS1000A0IDBVR. By type, the board carries 29 capacitors, 24 resistors, 8 connectors, 8 inductors, 6 fuses and 5 ICs.
It belongs with the power & battery designs in this gallery.
From the project

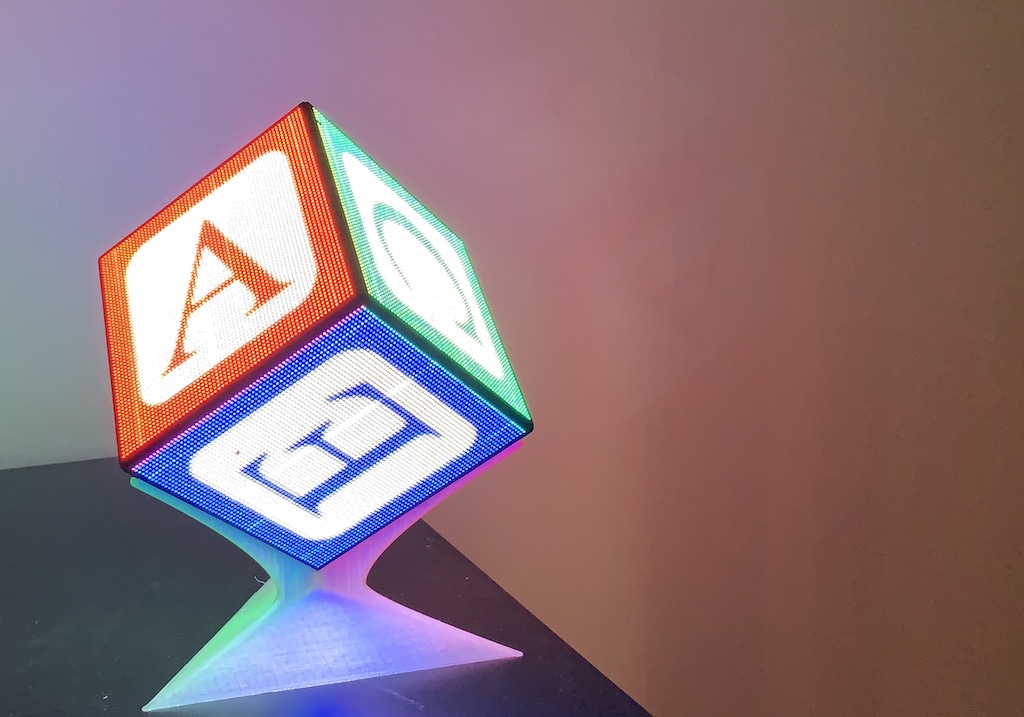

Blinky in 3D!
I saw Zaurak's and Polyfloyd's LED cubes, and decided I wanted to make one too. This one is smaller with denser LEDs. (2mm pitch instead of 2.5mm)
The cube's faces are six LED panels from Aliexpress. Each panel has 64×64 RGB leds and is driven by the HUB75 protocol.
The chassis is a combination of 3D printed PLA, machine screws, and magnets. The electronics can be installed and removed without tools.
Main components on the LED-Cube
LED-Cube bill of materials (BOM)
85 components, 46 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LMZ14203TZX-ADJ/NOPB LMZ14203 TI | TO-PMOD_7 | U1 |
| 1 | TPS53819ARGTR TPS53819A TI | VQFN-16-1EP_3x3mm_P0.5mm_EP1.68x1.68mm_ThermalVias | U2 |
| 1 | CSD86360Q5D TI | Q5D | U3 |
| 1 | MPU-9250 InvenSense | InvenSense_QFN-24_3x3mm_P0.4mm | U4 |
| 1 | ADS1000A0IDBVR ADS1000 TI | SOT-23-6 | U5 |
| 1 | SI5504BDC-T1-GE3 SI5504BDC Vishay | 1206-8_or_SO-8 | Q1 |
| 1 | Battery In JST | JST_VH_B3PS-VH_1x03_P3.96mm_Horizontal | J1 |
| 6 | JST B2PS-VH JST | JST_VH_B2PS-VH_1x02_P3.96mm_Horizontal | J2, J3, J4, J5, J6, J7 |
| 1 | Raspberry Pi JST | JST_PUD_S10B-PUDSS-1_2x05_P2.00mm_Horizontal | J9 |
| 6 | NANOSMD400LR-C-2 Fuse Littelfuse | Fuse_1206_3216Metric | F1, F2, F3, F4, F5, F6 |
| 1 | SW_Push C&K | PTS645-Vx-39-2 | SW1 |
| 1 | LED, green Osram | LED_0603_1608Metric | D1 |
| 1 | LED, blue Osram | LED_0603_1608Metric | D2 |
| 1 | BAT54CTA BAT54C Diodes Inc. | SOT-23 | D3 |
| 7 | FBMJ3216HM600-T 60R Taiyo Yuden | L_1206_3216Metric | L1, L2, L3, L4, L5, L6, L7 |
| 1 | XAL1580-132MEB 1.3µH Coilcraft | Coilcraft_XAL1580 | L8 |
| 4 | GMK212B7105KG-T 1µF Taiyo Yuden | C_0805_2012Metric | C1, C6, C9, C11 |
| 2 | CGA4J2X7R2A104K125AA 100nF TDK | C_0805_2012Metric | C2, C15 |
| 1 | EDK107M050A9MAA 100µF Kemet | CP_Elec_8x10 | C3 |
| 2 | GRM21BR61E106MA73L 10µF Murata | C_0805_2012Metric | C4, C5 |
Show 26 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | GRM188R71H103KA01D 10nF Murata | C_0603_1608Metric | C7, C29 |
| 1 | 885012206091 22nF Wurth | C_0603_1608Metric | C8 |
| 1 | LMK325BJ107MM-T 100µF Taiyo Yuden | C_1210_3225Metric | C10 |
| 3 | GRM21BR61E106MA73L 10µF Murata | C_1206_3216Metric | C13, C17, C31 |
| 1 | GMK212B7105KG-T 1µF Taiyo Yuden | C_0603_1608Metric | C14 |
| 1 | C0603C102J5RACTU 1nF Kemet | C_0603_1608Metric | C16 |
| 4 | 35SVPD47M 47µF Panasonic | CP_OSCON_Poly_F12 | C19, C20, C21, C22 |
| 4 | GRM32EC81C476KE15L 47µF Murata | C_1210_3225Metric | C23, C24, C25, C26 |
| 3 | GRM188R71C104KA01D 100nF Murata | C_0603_1608Metric | C27, C28, C30 |
| 2 | RC0603JR-07680R 680 Yageo | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R1, R2 |
| 1 | RC0603JR-0710K 10K Yageo | R_0603_1608Metric | R3 |
| 4 | RC0603JR-07100K 100K Yageo | R_0603_1608Metric | R4, R7, R16, R24 |
| 1 | RC0603JR-07330K 330K Yageo | R_0603_1608Metric | R5 |
| 1 | RC0603JR-071K 1K Yageo | R_0603_1608Metric | R6 |
| 1 | RC0603JR-0768K 68K Yageo | R_0603_1608Metric | R8 |
| 1 | RC0603JR-076K8 6.8K Yageo | R_0603_1608Metric | R9 |
| 1 | RC0603JR-07120K 120K Yageo | R_0603_1608Metric | R10 |
| 1 | ERJ-3EKF5901V 5.90K 1% Panasonic | R_0603_1608Metric | R11 |
| 1 | ERJ-3EKF1071V 1.07K 1% Panasonic | R_0603_1608Metric | R12 |
| 1 | RMCF0603FT38K3 38.3K Stackpole | R_0603_1608Metric | R13 |
| 1 | CRCW0402294KFKED 294K Vishay-Dale | R_0402_1005Metric | R14 |
| 1 | CRCW0402976RFKED 976 VIshay-Dale | R_0402_1005Metric | R15 |
| 2 | CRCW08051R00FKEA 1 Vishay-Dale | R_0805_2012Metric | R17, R19 |
| 1 | ERJ-6RQF4R7V 4.7 Panasonic | R_0805_2012Metric | R18 |
| 2 | RNCP0603FTD10K0 10K 1% Stackpole | R_0603_1608Metric | R20, R22 |
| 2 | RC0603FR-0717K8L 1.78K 1% Yageo | R_0603_1608Metric | R21, R23 |
LED-Cube design files
The KiCad project lives in the kbob/LED-Cube repository on GitHub; these links point at the commit this page was built from.
LED-Cube: common questions
What microcontroller does the LED-Cube use?
The LED-Cube is built around the Raspberry Pi, from the Raspberry Pi family.
How big is the LED-Cube PCB?
The LED-Cube measures 70 × 80 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the LED-Cube?
85 components, from 46 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the LED-Cube design files?
From the kbob/LED-Cube repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the LED-Cube design in my own project?
The repository has no license, so all rights stay with kbob. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the LED-Cube without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
