TubePinchValve

kcsmith-uiuc·TubePinchValve

TubePinchValve PCB layout, top view — open source AVR/Arduino board by kcsmith-uiuc

About the TubePinchValve PCB

TubePinchValve is an open source AVR/Arduino PCB design by kcsmith-uiuc, published on GitHub. It is a 2-layer board measuring 65 × 95 mm, with 6 components from 6 distinct parts.

Its main chip is the Arduino_UNO_R3, from the AVR/Arduino family. Other key parts include the Switch, Servo Connection Block and SPST. By type, the board carries 3 ICs, 1 module and 1 connector.

It belongs with the robotics & motion designs in this gallery.

From the project

Software and Build Files for the Smith Lab @ UIUC's Low-Volume, Fluid-Switching Device

[1] Reale, E. R., Regenwetter, L., Agrawal, A., Dardón, B., Dicola, N., Sanagala, S., & Smith, K. C. (2021). Low porosity, high areal-capacity Prussian blue analogue electrodes enhance salt removal and thermodynamic efficiency in symmetric Faradaic deionization with automated fluid control. Water Research X, 13, 100116.

[2] Do, V. Q., Reale, E. R., Loud, I. C., Rozzi, P. G., Tan, H., Willis, D. A., & Smith, K. C. (2023). Embedded, micro-interdigitated flow fields in high areal-loading intercalation electrodes towards seawater desalination and beyond. Energy & Environmental Science, 16(7)…

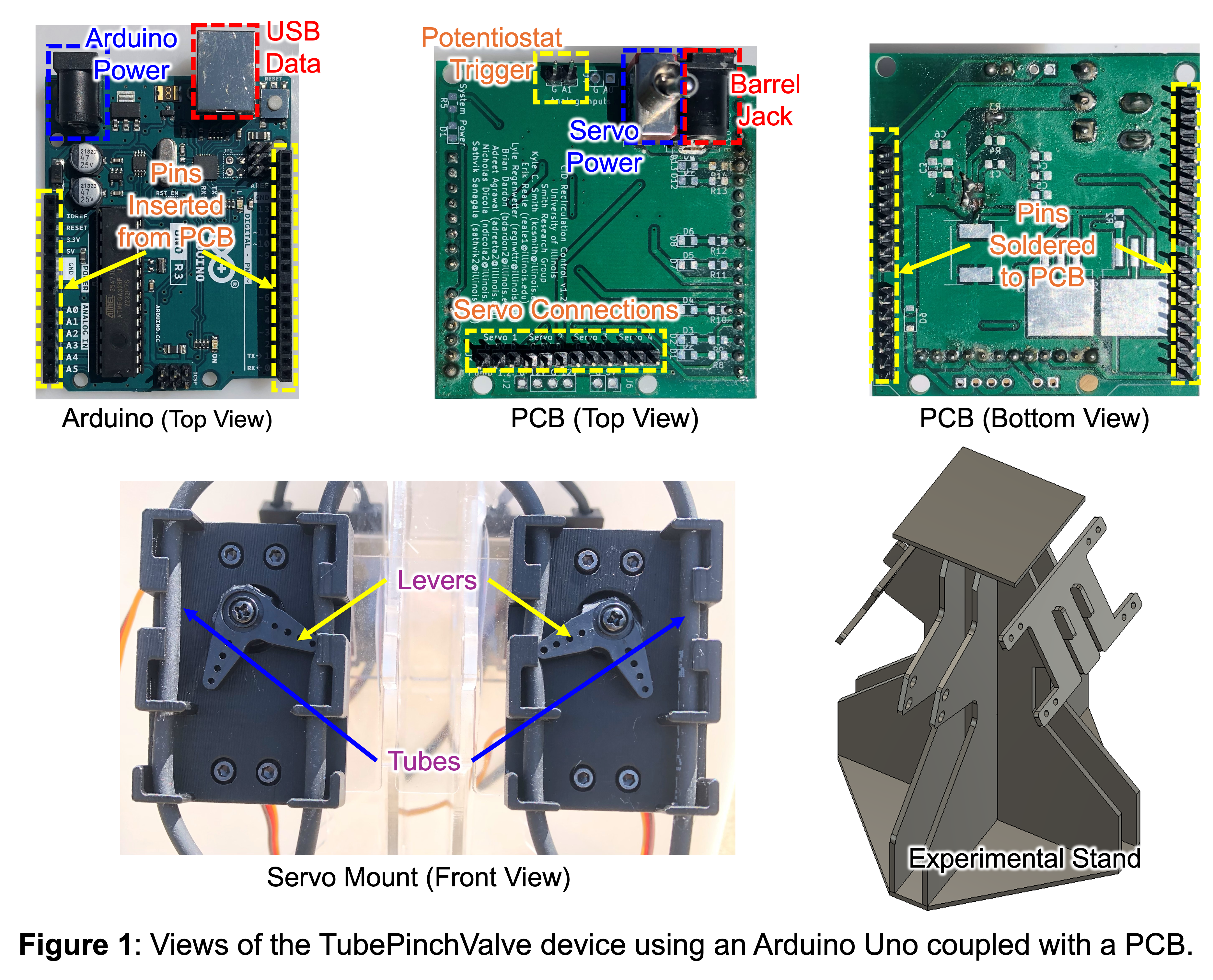

TubePinchValve, from the project README
From the project README

Main components on the TubePinchValve

SwitchServo Connection BlockSPSTArduino_UNO_R3

TubePinchValve bill of materials (BOM)

6 components, 6 distinct parts.

QtyPartRefs
1
Switch
U1
1
Servo Connection Block
U2
1
SPST
U4
1
Arduino_UNO_R3
A1
1
PJ-202B
J1
1
~
Potentiostat1

TubePinchValve design files

The KiCad project lives in the kcsmith-uiuc/TubePinchValve repository on GitHub; these links point at the commit this page was built from.

TubePinchValve: common questions

What microcontroller does the TubePinchValve use?

The TubePinchValve is built around the Arduino_UNO_R3, from the AVR/Arduino family.

How big is the TubePinchValve PCB?

The TubePinchValve measures 65 × 95 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TubePinchValve?

6 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the TubePinchValve design files?

From the kcsmith-uiuc/TubePinchValve repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the TubePinchValve design in my own project?

The repository has no license, so all rights stay with kcsmith-uiuc. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the TubePinchValve without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
