MicroZedIntanInterface
About the MicroZedIntanInterface PCB
MicroZedIntanInterface is an open source PCB design by kemerelab, published on GitHub under the MIT license. It is a 4-layer board measuring 100.3 × 101.6 mm, with 86 components from 47 distinct parts.
Other key parts include the AP331A, TLV62568DDC, FT230XS, TLV62569DDC and DAC70502. By type, the board carries 30 resistors, 25 capacitors, 10 diodes, 7 ICs, 4 transistors and 4 switches.
It belongs with the dev boards & breakouts designs in this gallery.

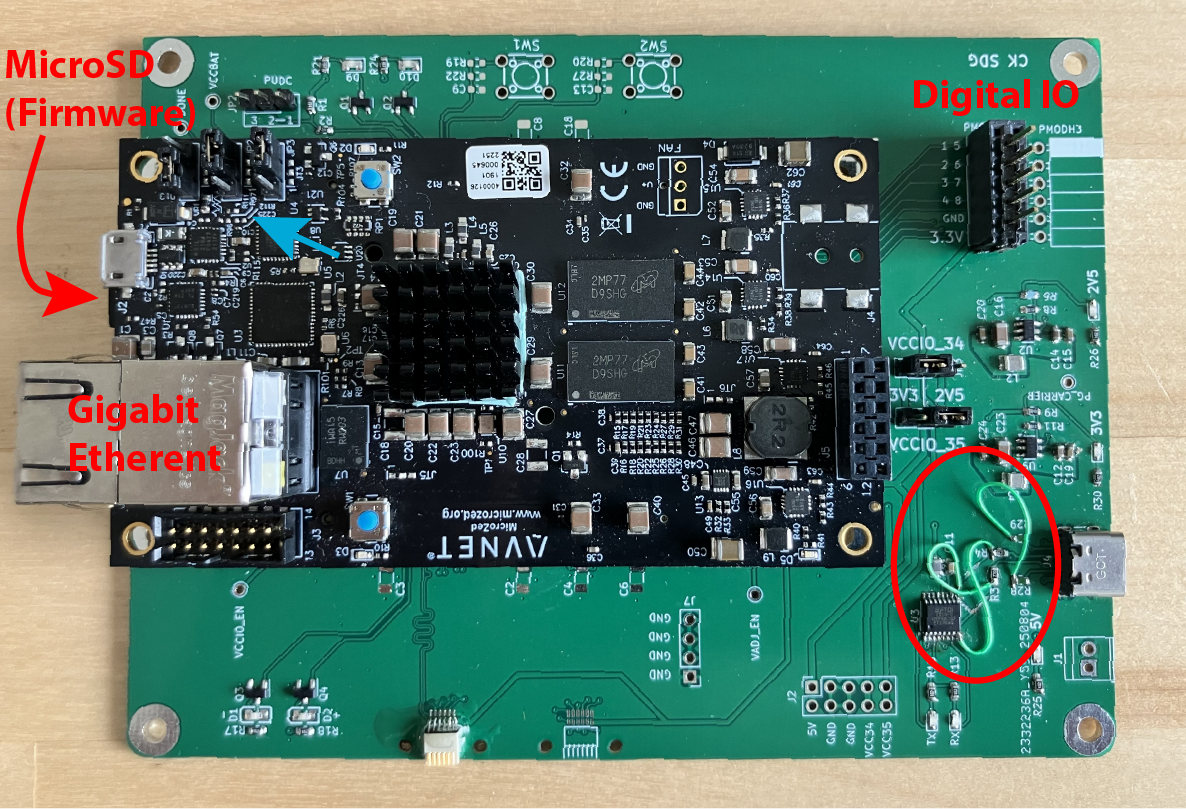

From the project
Repository with work in process Microzed projects
The PCB design was dervied from work by Viktor Nokolov licensed under the Creative Commons Zero license. His original project can be found here https://github.com/viktor-nikolov/MicroZed-carrier-board.
Main components on the MicroZedIntanInterface
MicroZedIntanInterface bill of materials (BOM)
86 components, 47 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AP331A | SOT-25-5_L3.0-W1.8-P0.95-LS3.0-BR | U1 |
| 1 | TLV62568DDC TLV62569DDC | SOT-23-6 | U2 |
| 1 | FT230XS | SSOP-16_3.9x4.9mm_P0.635mm | U3 |
| 1 | TLV62569DDC | SOT-23-6 | U4 |
| 1 | DAC70502 | Texas_DRX_WSON-10_2.5x2.5mm_P0.5mm | U5 |
| 1 | ADS7029 | VSSOP-8_2.3x2mm_P0.5mm | U6 |
| 1 | TLV62568DDC ADS7029 | VSSOP-8_2.3x2mm_P0.5mm | U9 |
| 4 | BSS138 | SOT-23 | Q1, Q2, Q3, Q4 |
| 1 | USB_C_Receptacle_USB2.0_16P | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | J8 |
| 2 | C2764776 ~ | BergStak-100pos-plug-61083-101400 | JX1, JX2 |
| 2 | SW_MEC_5E SW_Push | SW_SPST_TS-1088-xR020 | SW1, SW2 |
| 2 | SW_SPDT | SW_SPDT_PCM12 | SW3, SW4 |
| 1 | C2296 LED0 | LED_0603_1608Metric | D1 |
| 1 | C2296 LED1 | LED_0603_1608Metric | D2 |
| 1 | C2833058 LED 5V | LED_0603_1608Metric | D3 |
| 1 | C2833058 LED 2V5 | LED_0603_1608Metric | D4 |
| 1 | C2833058 LED 3V3 | LED_0603_1608Metric | D5 |
| 1 | C2833058 RX | LED_0603_1608Metric | D6 |
| 1 | C2833058 TX | LED_0603_1608Metric | D7 |
| 1 | BAT54C | SOT-23 | D8 |
Show 27 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C2296 LED2 | LED_0603_1608Metric | D9 |
| 1 | C2296 LED3 | LED_0603_1608Metric | D10 |
| 1 | FerriteBead | L_0805_2012Metric | FB1 |
| 2 | 1 uH | L_1210_3225Metric | L2, L3 |
| 3 | C5672 22uF 25V | C_1206_3216Metric | C1, C16, C23 |
| 9 | 22UF 22uF 25V | C_1206_3216Metric | C2, C3, C4, C5, C6, C7, C8, C10 +1 |
| 8 | 100NF 100nF | C_0402_1005Metric | C9, C11, C13, C15, C17, C19, C20, C24 |
| 2 | C19702 10uF 10V | C_0603_1608Metric | C12, C14 |
| 3 | 100nF | C_0402_1005Metric | C21, C22, C25 |
| 2 | 1k 1% | R_0402_1005Metric | R1, R5 |
| 1 | 100R 100 1% | R_0402_1005Metric | R2 |
| 2 | 27R 27 | R_0402_1005Metric | R3, R4 |
| 2 | 316k 1% | R_0402_1005Metric | R6, R14 |
| 1 | 10K 10k | R_0402_1005Metric | R7 |
| 2 | 100k 1% | R_0402_1005Metric | R8, R11 |
| 1 | 453k 1% | R_0402_1005Metric | R9 |
| 1 | C22843 5.6k 1% | R_0402_1005Metric | R10 |
| 1 | 3.3k | R_0402_1005Metric | R12 |
| 2 | 133R 150 1% | R_0402_1005Metric | R13, R15 |
| 1 | C23228 1k 1% | R_0402_1005Metric | R16 |
| 4 | 150R 150 1% | R_0402_1005Metric | R17, R18, R21, R24 |
| 2 | 100R 150 1% | R_0402_1005Metric | R19, R20 |
| 2 | 3K3 3.3k | R_0402_1005Metric | R22, R27 |
| 1 | 100K 100k 1% | R_0402_1005Metric | R23 |
| 1 | 4K87 1k 1% | R_0402_1005Metric | R25 |
| 2 | 1K54 1k 1% | R_0402_1005Metric | R26, R30 |
| 2 | 5K1 5.1k | R_0402_1005Metric | R28, R29 |
MicroZedIntanInterface design files
The KiCad project lives in the kemerelab/MicroZedIntanInterface repository on GitHub; these links point at the commit this page was built from.
MicroZedIntanInterface: common questions
How big is the MicroZedIntanInterface PCB?
The MicroZedIntanInterface measures 100.3 × 101.6 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the MicroZedIntanInterface?
86 components, from 47 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the MicroZedIntanInterface design files?
From the kemerelab/MicroZedIntanInterface repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the MicroZedIntanInterface design in my own project?
Yes, under the terms of its MIT license, which kemerelab chose for the repository.
