Temperator PCB layout, top view — open source AVR/Arduino board by KHit6

About the Temperator PCB

Temperator is an open source AVR/Arduino PCB design by KHit6, published on GitHub under the CERN-OHL-W-2.0 license. It is a 2-layer board measuring 100 × 140 mm, with 78 components from 18 distinct parts.

Its main chip is the Arduino_Nano_ESP32_Socket, from the AVR/Arduino family. Other key parts include the MCP6004. By type, the board carries 35 resistors, 21 diodes, 13 capacitors, 5 connectors, 1 IC and 1 module.

It belongs with the iot & wireless, sensors and displays & leds designs in this gallery.

From the project

Smart connected device to measure 8 temperatures and 2 AC currents

# temperator ## Smart connected device to measure 8 temperatures and 2 AC currents

temperator is a robust and easy-to-use measurement system for taking 8 temperatures and 2 AC currents. Its design is simple yet professional. No special knowledge is required for operation. In addition to the hardware, a configuration for operation with ESPHome is provided in a separate repository. This makes integration with Home Assistant or other home automation systems very easy. Besides legacy Home Assistant connectivity, MQTT as interface protocol is also supported.

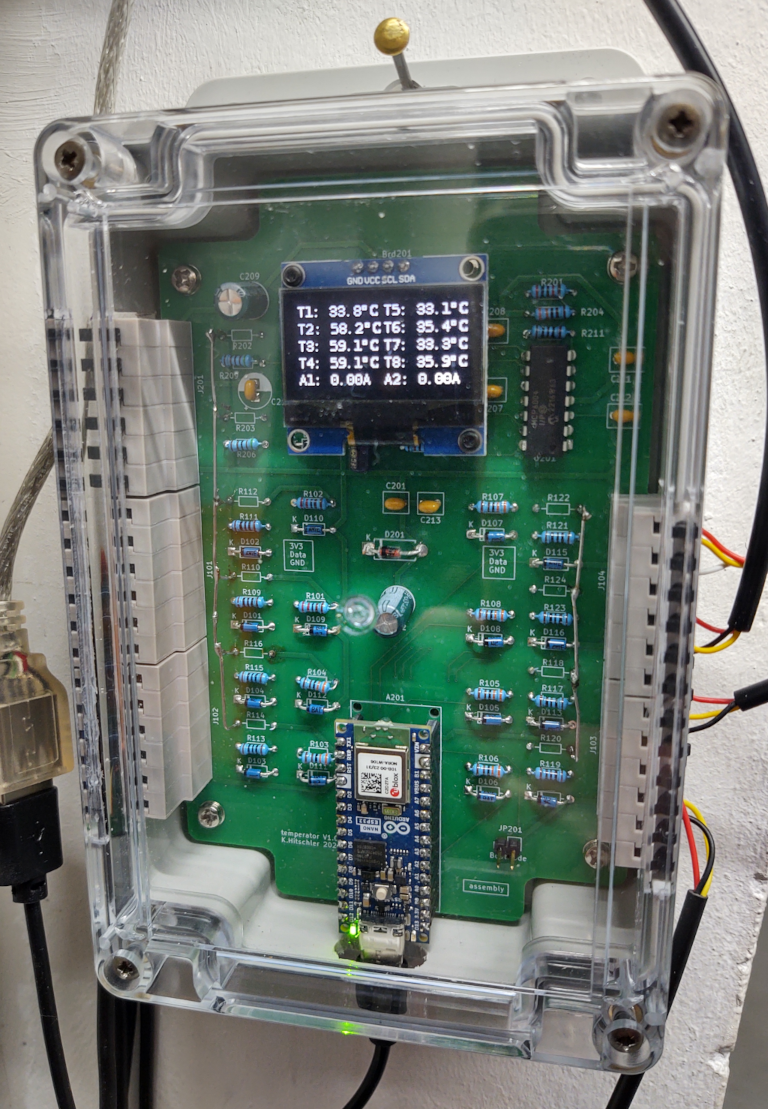

Temperator, from the project README
From the project README

Main components on the Temperator

MCP6004Arduino_Nano_ESP32_Socket

Temperator bill of materials (BOM)

78 components, 18 distinct parts.

QtyPartRefs
1
MCP6004
U201
1
Arduino_Nano_ESP32_Socket
A201
5
MetzConnect AST025
J101, J102, J103, J104, J201
1
SSD1306/SH1106
Brd201
1
BOOTMODE
JP201
20
BAT42
D101, D102, D103, D104, D105, D106, D107, D108 +12
1
3V6
D201
6
100nF
C201, C207, C208, C211, C212, C213
3
100u
C202, C209, C210
2
100nF
C203, C205
2
3u3
C204, C206
8
2k7
R101, R102, R103, R104, R105, R106, R107, R108
13
100
R109, R111, R113, R115, R117, R119, R121, R123 +5
8
0
R110, R112, R114, R116, R118, R120, R122, R124
1
10k
R201
1
1k8
R204
2
18k
R205, R208
2
5.1k
R206, R209

Temperator design files

The KiCad project lives in the KHit6/temperator repository on GitHub; these links point at the commit this page was built from.

Temperator: common questions

What microcontroller does the Temperator use?

The Temperator is built around the Arduino_Nano_ESP32_Socket, from the AVR/Arduino family.

How big is the Temperator PCB?

The Temperator measures 100 × 140 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Temperator?

78 components, from 18 distinct parts. The full bill of materials is listed on this page.

Where can I download the Temperator design files?

From the KHit6/temperator repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Temperator design in my own project?

Yes, under the terms of its CERN-OHL-W-2.0 license, which KHit6 chose for the repository.

Can I test firmware for the Temperator without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
