Adafruit Si5351A
kholia·Si5351-Module-Clone-TCXO·Adafruit-Si5351A-v4/Adafruit Si5351A.kicad_pcb
About the Adafruit Si5351A PCB
Adafruit Si5351A is an open source PCB design by kholia, published on GitHub under the Custom license license. It is a 2-layer board measuring 30.5 × 21.6 mm, with 6 components from 5 distinct parts.
Other key parts include the SI5351A. By type, the board carries 2 capacitors, 2 resistors, 1 IC and 1 crystal.
From the project
Si5351-Module-Clone with low PPM TCXO! Drop-in replacement for the Adafruit's Si5351 module. 3.3v ONLY!
This version is ready for JLCPCB's PCBA process. Enjoy! ;)

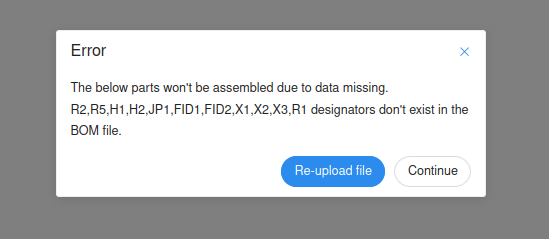

It is OK to see the following "errors" in the JLCPCB PCBA process.

Main components on the Adafruit Si5351A
Adafruit Si5351A bill of materials (BOM)
6 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SI5351A | MSOP-10_3x3mm_P0.5mm | U1 |
| 1 | C213404 OSCILLATOR | OSC-SMD_4P-L3.2-W2.5-BL_1XTV | Y1 |
| 1 | 100NF 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1 |
| 1 | 100NF 100nF | C_0805_2012Metric | C2 |
| 2 | 1k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3, R4 |
Adafruit Si5351A design files
The KiCad project lives in the kholia/Si5351-Module-Clone-TCXO repository on GitHub; these links point at the commit this page was built from.
Adafruit Si5351A: common questions
How big is the Adafruit Si5351A PCB?
The Adafruit Si5351A measures 30.5 × 21.6 mm and has 2 copper layers.
How many components are on the Adafruit Si5351A?
6 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Adafruit Si5351A design files?
From the kholia/Si5351-Module-Clone-TCXO repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Adafruit Si5351A design in my own project?
It is published under Custom license, which limits how it may be reused; read the license before building on it.
