About the Panelized PCB
Panelized is an open source PCB design by kholia, published on GitHub under the Custom license license. It is a 2-layer board measuring 95.4 × 92.4 mm, with 12 components from 8 distinct parts.
Other key parts include the SI5351A. By type, the board carries 4 crystals, 4 resistors, 1 IC, 1 jumper and 1 capacitor.
From the project

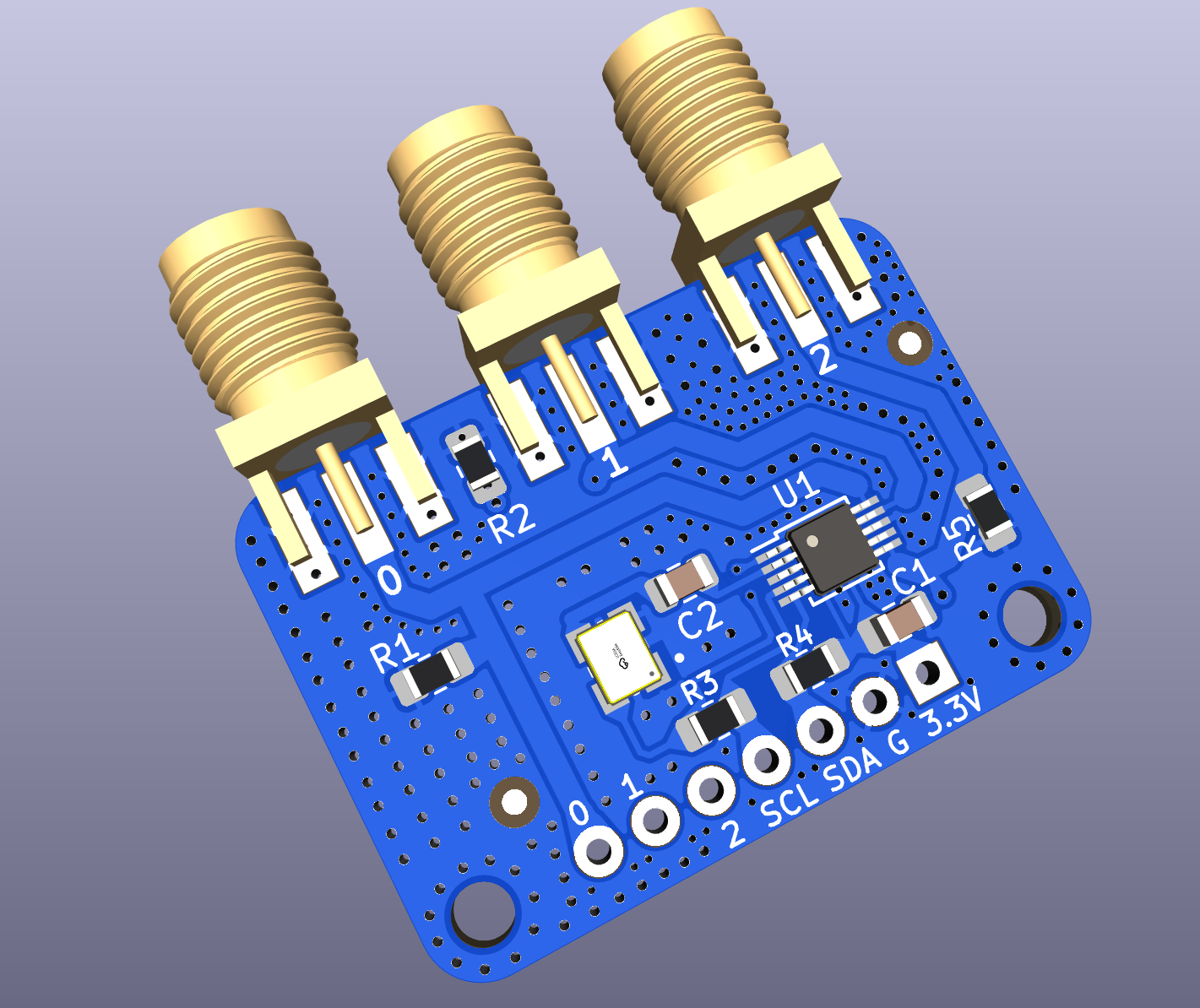

Si5351-Module-Clone with low PPM TCXO! Drop-in replacement for the Adafruit's Si5351 module. 3.3v ONLY!
Note: We are using KiCad 7.0.x version to build this project.
[UPDATE] The design was validated on 27th-Feb-2023. It works really well for WSPR @ 28 MHz where the original Adafruit Si5351 module is barely usable.
- https://www.ktron.in/ - SMA connectors for cheap
Note: International buyers can buy from DigiKey or Mouser.
- [DEFAULT] KDS Daishinku 1XTW26000MAA (26 MHz)

Main components on the Panelized
Panelized bill of materials (BOM)
12 components, 8 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SI5351A | MSOP-10_3x3mm_P0.5mm | U1 |
| 3 | ~ | SMA_EDGELAUNCH_Same | X1, X2, X3 |
| 1 | C213404 OSCILLATOR | XTAL_ASTX-H11-25.000MHZ-T-Same | Y1 |
| 1 | ~ | 1X07_ROUND_76 | JP1 |
| 1 | 64.9E / 100nF | R_0805_2012Metric | ROC1 |
| 1 | 105 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1 |
| 2 | 10k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3, R4 |
| 2 | 100 | R_0805_2012Metric | R7, R9 |
Panelized design files
The KiCad project lives in the kholia/Si5351-Module-Clone-TCXO repository on GitHub; these links point at the commit this page was built from.
Panelized: common questions
How big is the Panelized PCB?
The Panelized measures 95.4 × 92.4 mm and has 2 copper layers.
How many components are on the Panelized?
12 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Panelized design files?
From the kholia/Si5351-Module-Clone-TCXO repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Panelized design in my own project?
It is published under Custom license, which limits how it may be reused; read the license before building on it.
