Motococo PCB layout, top view — open source board by kimitobo

About the Motococo PCB

Motococo is an open source PCB design by kimitobo, published on GitHub. It is a 2-layer board measuring 24.7 × 75.8 mm, with 0 components from 0 distinct parts.

It belongs with the robotics & motion designs in this gallery.

From the project

Servo-motor controller for MotoCoco ATiny85

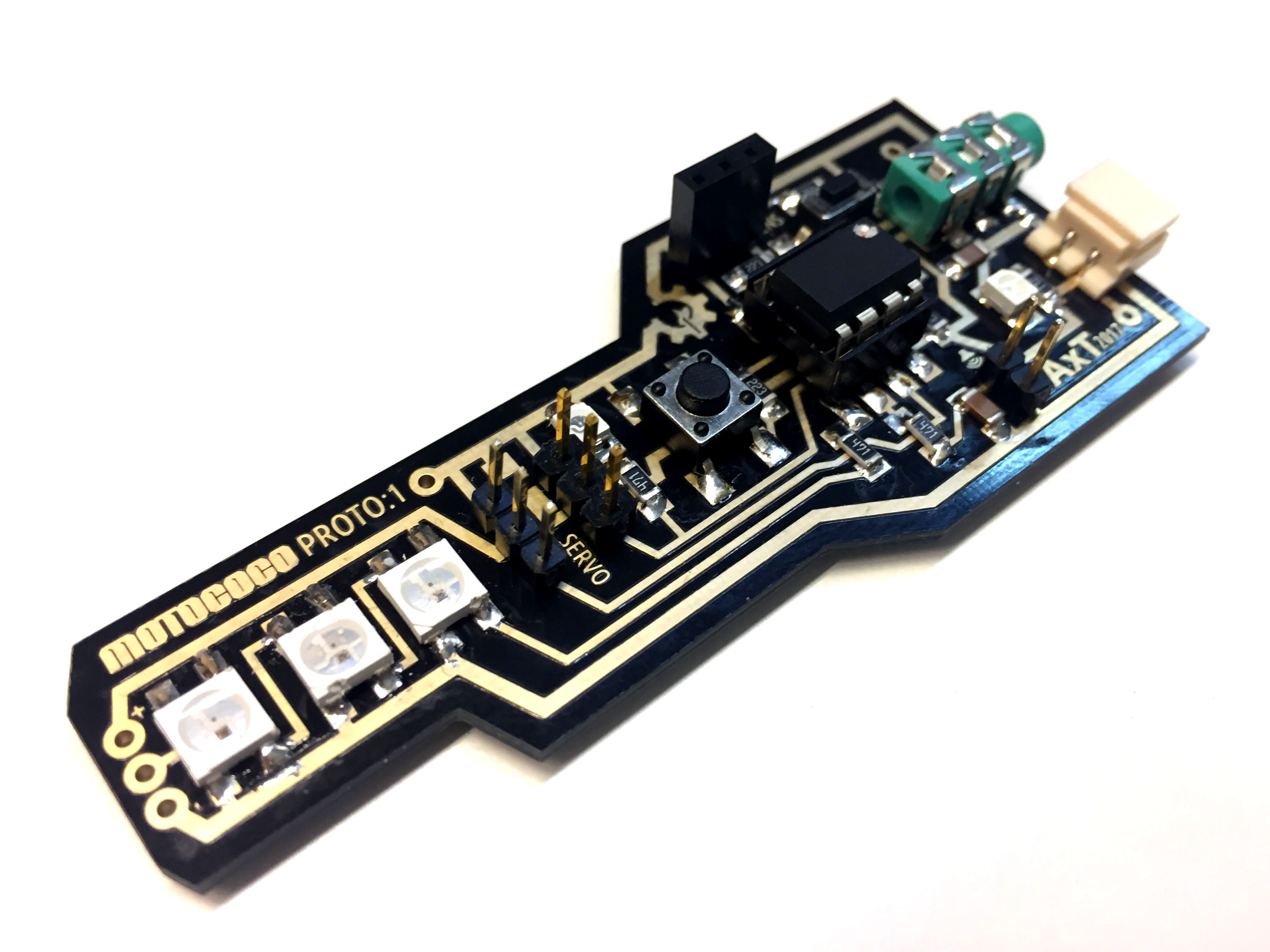

Motococo is a multi-use, Arduino compatible board based on the ATiny85 microcontroller using audiobootloader for the programming it. It has two servo-motor ports, analog sensor input, Neopixel output with three places for the 5050 footprint Neopixels and a solder point for audio out.

Make your own board using the provided KiCad &/ Gerber files, or order it from PCBway share&sell. The design might work for DIY-pcb etching but I have not tried it with this design.

Motococo, from the project README
From the project README

Motococo design files

The KiCad project lives in the kimitobo/motococo repository on GitHub; these links point at the commit this page was built from.
