About the Knox-Key PCB
Knox-Key is an open source STM32 PCB design by Kingdragoncat, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 31.2 × 17.1 mm, with 29 components from 17 distinct parts.
Its main chip is the STM32L433CBTX, from the STM32 family. Other key parts include the ATECC608B-MAHDA-S, MCP1700T-3302E/TT and USBLC6-2SC6. By type, the board carries 12 capacitors, 8 resistors, 4 ICs, 2 connectors, 1 crystal and 1 switch.
From the project

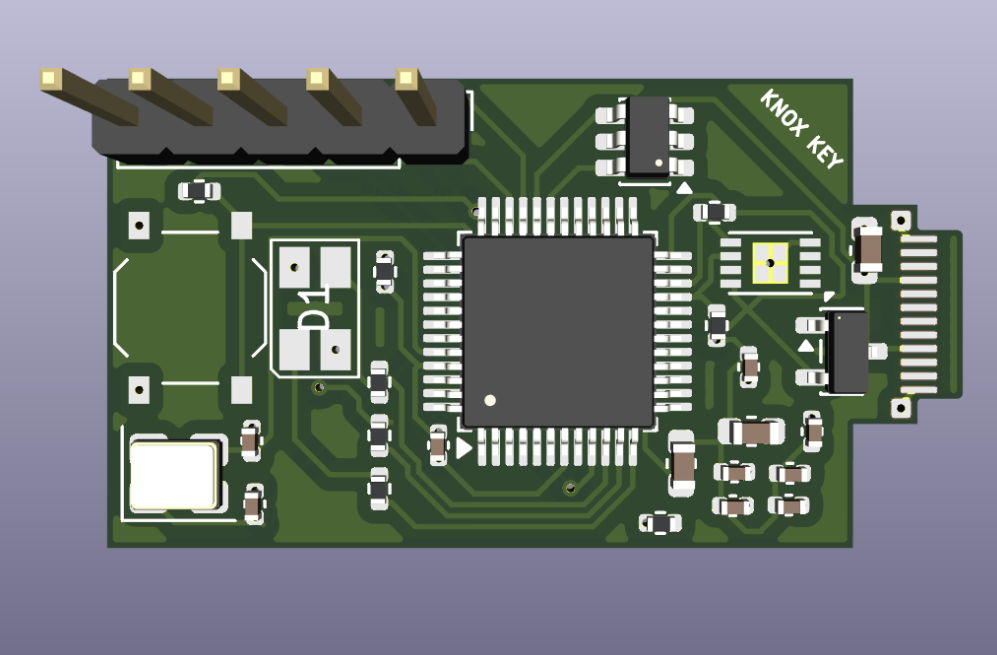

Knox Key is a high-performance, open-source hardware authenticator designed for secure digital identity and cryptographic operations. Built with a focus on a "zero-trust" hardware architecture, it combines low-power processing with a dedicated secure element in a slim, USB-C form factor.
This is a custom USB-C FIDO2 security key. The repository contains the KiCad 9 hardware files (schematics, PCB layout, fab outputs) and the authenticator firmware.
The hardware pairs an STM32L433 microcontroller with an ATECC608B secure element. The project started out as an STM32F072 design (originally named "kryptonite") but was later reworked to use the L433.

Main components on the Knox-Key
Knox-Key bill of materials (BOM)
29 components, 17 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ATECC608B-MAHDA-S ATECC608B-MAHDA Microchip Tech | DFN-8-1EP_3x2mm_P0.5mm_EP1.3x1.5mm | U2 |
| 1 | MCP1700T-3302E/TT MCP1700x-330xxTT Microchip Tech | SOT-23 | U3 |
| 1 | USBLC6-2SC6 STMicroelectronics | SOT-23-6 | U4 |
| 1 | STM32L433CBTX STM32L433CBTx | LQFP-48_7x7mm_P0.5mm | U6 |
| 1 | TAXM8M4RLBDDT2T 8MHz Yajingxin | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | CONN_01X05 Conn_01x05 | PinHeader_1x05_P2.54mm_Vertical | J3 |
| 1 | TYPE-C-31-G-01 USB_C_Plug_USB2.0 Korean Hroparts Elec | TYPE-C-31-G-01 | P1 |
| 1 | TS-1187A-B-A-B SW_Push XKB Connection | SW_Push_1P1T_XKB_TS-1187A | SW1 |
| 1 | ASMB-MTB1-0A3A2 | LED_Avago_PLCC4_3.2x2.8mm_CW | D1 |
| 3 | C0603X5R106M160NT 10u SANYEAR | C_0603_1608Metric | C1, C11, C12 |
| 7 | CGA0402X7R104K160GT 100n HRE | C_0402_1005Metric | C2, C3, C4, C5, C6, C7, C10 |
| 2 | TCC0402COG330J500AT 33p CCTC | C_0402_1005Metric | C8, C9 |
| 2 | RC0402FR-0710KL 10k YAGEO | R_0402_1005Metric | R1, R5 |
| 3 | 0402WGJ0472TCE 4k7 UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R2, R3, R4 |
| 1 | R | R_0402_1005Metric | R6 |
| 1 | G | R_0402_1005Metric | R7 |
| 1 | B | R_0402_1005Metric | R8 |
Knox-Key design files
The KiCad project lives in the Kingdragoncat/Knox-Key repository on GitHub; these links point at the commit this page was built from.
- LayoutKnox Key Kicad.kicad_pcb
- SchematicKnox Key Kicad.kicad_sch
- BOMBOM.csv
Knox-Key: common questions
What microcontroller does the Knox-Key use?
The Knox-Key is built around the STM32L433CBTX, from the STM32 family.
How big is the Knox-Key PCB?
The Knox-Key measures 31.2 × 17.1 mm, has 2 copper layers and is 0.7912 mm thick.
How many components are on the Knox-Key?
29 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Knox-Key design files?
From the Kingdragoncat/Knox-Key repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Knox-Key design in my own project?
Yes, under the terms of its GPL-3.0 license, which Kingdragoncat chose for the repository.
Can I test firmware for the Knox-Key without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
