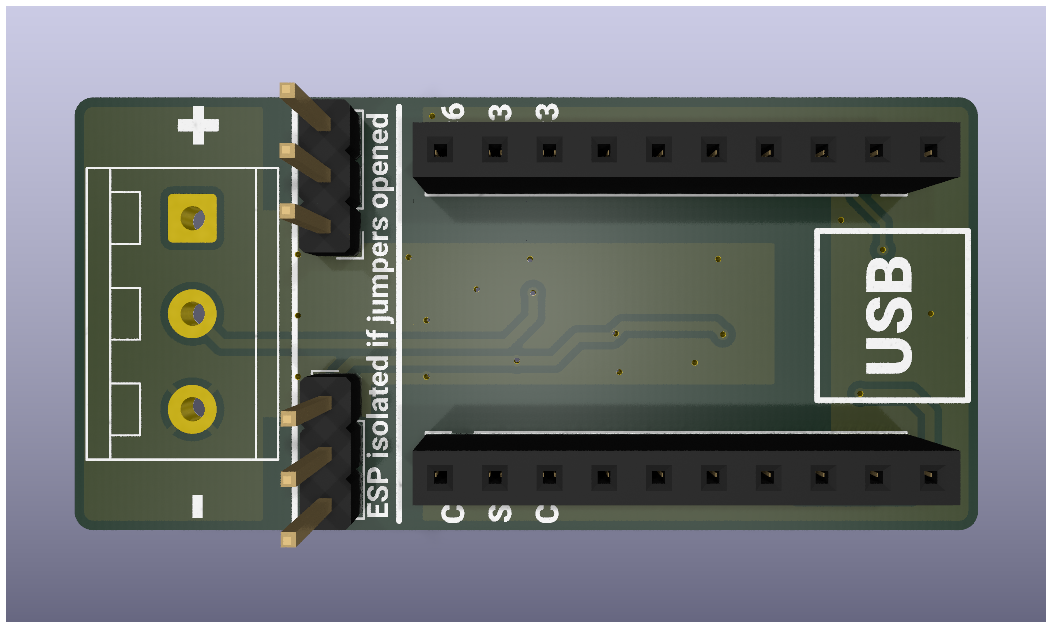

BaSHi-SM-1
About the BaSHi-SM-1 PCB
BaSHi-SM-1 is an open source PCB design by kiu, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 48 × 23 mm, with 22 components from 16 distinct parts.
Other key parts include the AP63205WU, 74LVC1G07 and CMT8021N1L. By type, the board carries 8 capacitors, 5 connectors, 3 ICs, 2 diodes, 2 resistors and 1 fuse.
From the project
Bidirectional adapter for Sniffing Home appliances (isolated)
Hajo gave a talk on hacking home appliances at the 39C3. That talk inspired me to build a simple, isolated, bidirectional D-Bus adapter to make tinkering with these devices easier.
In non-isolated mode, the ESP32 is powered by the home appliance. Both jumpers must be shorted. This mode is intended for standalone operation. Do not connect the ESP32 USB port while BaSHi is connected to a home appliance.
Main components on the BaSHi-SM-1
BaSHi-SM-1 bill of materials (BOM)
22 components, 16 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AP63205WU | TSOT-23-6 | U1 |
| 1 | 74LVC1G07 | SOT-23-5 | U2 |
| 1 | CMT8021N1L | SOIC-8_3.9x4.9mm_P1.27mm | U3 |
| 1 | CONN_01X03 Conn_01x03 | TerminalBlock_1x03_P5.08mm_Horizontal_WJ500V-5.08-03P-14-00A | J1 |
| 2 | 1X02_JUMPER 1x02_Jumper | PinHeader_1x03_1PMissing_P2.54mm_Vertical | J2, J3 |
| 2 | CONN_01X08 Conn_01x08 | PinSocket_1x10_P2.54mm_Vertical | J4, J5 |
| 1 | C25838740 Fuse | Fuse_0805_2012Metric | F1 |
| 1 | C3008061 D | D_SOD-123F | D1 |
| 1 | C110757 D_Zener | D_SOD-323 | D2 |
| 1 | 4.7UH 4.7uH | L_SFE4018A-4R7M-F-HF_4x4x1.8mm | L1 |
| 4 | 100NF 100nF | C_0805_2012Metric | C1, C5, C6, C8 |
| 1 | 10UF 10uF | C_1210_3225Metric | C2 |
| 2 | 22UF 22uF | C_0805_2012Metric | C3, C4 |
| 1 | 330UF 330uF | CP_EIA-6032-28_Kemet-C | C7 |
| 1 | 10K 10k | R_0805_2012Metric | R1 |
| 1 | 330R | R_0805_2012Metric | R2 |
BaSHi-SM-1 design files
The KiCad project lives in the kiu/BaSHi repository on GitHub; these links point at the commit this page was built from.
BaSHi-SM-1: common questions
How big is the BaSHi-SM-1 PCB?
The BaSHi-SM-1 measures 48 × 23 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the BaSHi-SM-1?
22 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the BaSHi-SM-1 design files?
From the kiu/BaSHi repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the BaSHi-SM-1 design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
