Mains-Voltage-Device-Controller PCB layout, top view — open source AVR/Arduino board by kkorzen

About the Mains-Voltage-Device-Controller PCB

Mains-Voltage-Device-Controller is an open source AVR/Arduino PCB design by kkorzen, published on GitHub under the MIT license. It is a 2-layer board measuring 85 × 106.5 mm, with 34 components from 16 distinct parts.

Its main chip is the Arduino_Nano_v3.x, from the AVR/Arduino family. Other key parts include the PC817 and MOC3021M. By type, the board carries 11 resistors, 9 diodes, 4 transistors, 4 connectors, 2 ICs and 2 relays.

It belongs with the power & battery designs in this gallery.

From the project

- Introduction - Electronics schematics + PCB Layout - Arduino Code - Application

- Introduction - Electronics schematics + PCB Layout - Arduino Code - Application

This project was under development during the first semester of Master's Studies at Warsaw University of Technology (Poland) as a final project for Industrial Communication Protocols. Using the UART adaptation of RS-232, a simple controller was created. Its main goal was to make it possible to control a flow of mains current to the load devices. The device contains of two relays for bi-stable control and one triac for more "analogue" control (e.g., a lightbulb dimmer). The heart is an Arduino Nano board.

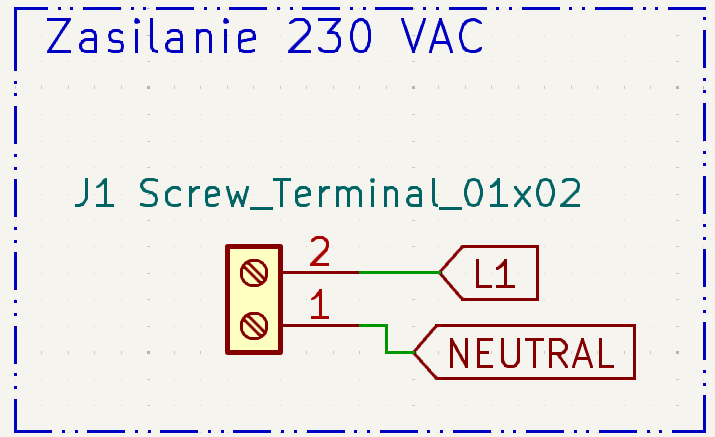

Mains-Voltage-Device-Controller, from the project README
From the project README

Main components on the Mains-Voltage-Device-Controller

PC817MOC3021MArduino_Nano_v3.x

Mains-Voltage-Device-Controller bill of materials (BOM)

34 components, 16 distinct parts.

QtyPartRefs
1
PC817
U1
1
MOC3021M
U3
1
Arduino_Nano_v3.x
A1
3
BC546
Q1, Q2, Q4
1
BT136-600
Q3
4
Screw_Terminal_01x02
J1, J2, J3, J4
2
HF32FA
K1, K2
1
SW_Push_DPDT
SW2
4
1N4007
D1, D2, D3, D4
3
LED
D5, D6, D9
2
1N4148
D7, D8
2
47k
R1, R2
1
10k
R3
3
330
R4, R6, R11
2
220
R5, R9
3
2.2k
R7, R8, R10

Mains-Voltage-Device-Controller design files

The KiCad project lives in the kkorzen/Mains-Voltage-Device-Controller repository on GitHub; these links point at the commit this page was built from.

Mains-Voltage-Device-Controller: common questions

What microcontroller does the Mains-Voltage-Device-Controller use?

The Mains-Voltage-Device-Controller is built around the Arduino_Nano_v3.x, from the AVR/Arduino family.

How big is the Mains-Voltage-Device-Controller PCB?

The Mains-Voltage-Device-Controller measures 85 × 106.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Mains-Voltage-Device-Controller?

34 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the Mains-Voltage-Device-Controller design files?

From the kkorzen/Mains-Voltage-Device-Controller repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Mains-Voltage-Device-Controller design in my own project?

Yes, under the terms of its MIT license, which kkorzen chose for the repository.

Can I test firmware for the Mains-Voltage-Device-Controller without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
