About the LevelShifterBreakout PCB
LevelShifterBreakout is an open source PCB design by Konn1nn, published on GitHub under the MIT license. It is a 2-layer board measuring 15.2 × 20.3 mm, with 5 components from 3 distinct parts.
Other key parts include the SN74AVC4T774RSVR. By type, the board carries 2 connectors, 2 capacitors and 1 IC.
It belongs with the wearables and displays & leds designs in this gallery.
From the project
This repo is to document the recreation of the smartknob and the electrical analysis of its workings.

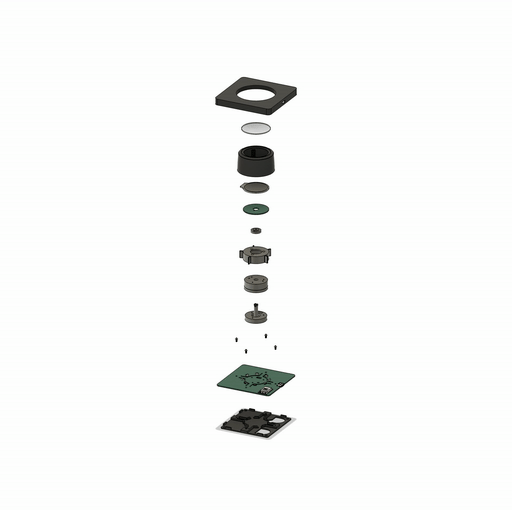

A brushless gimbal motor is paired with a magnetic encoder to provide closed-loop torque feedback control, making it possible to dynamically create and adjust the feel of detents and endstops.
Join the Discord community to discuss the project with others, show off your build, or help answer each others' questions!
🎉 Motors are now available! If you've been following this project, you'll know that the recommended motors went out of stock nearly immediately after it was published. Thanks to the community, we were able to identify the likely original manufacturer, and recently SparkFun…
Main components on the LevelShifterBreakout
LevelShifterBreakout bill of materials (BOM)
5 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SN74AVC4T774RSVR | Texas_Instruments-RSV_R-PUQFN-N16-0-0-0 | U1 |
| 2 | Conn_01x08_Male | PinHeader_1x08_P2.54mm_Vertical | J1, J2 |
| 2 | 0.1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2 |
LevelShifterBreakout design files
The KiCad project lives in the Konn1nn/smartknob_rafmagnsvelar repository on GitHub; these links point at the commit this page was built from.
LevelShifterBreakout: common questions
How big is the LevelShifterBreakout PCB?
The LevelShifterBreakout measures 15.2 × 20.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the LevelShifterBreakout?
5 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the LevelShifterBreakout design files?
From the Konn1nn/smartknob_rafmagnsvelar repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the LevelShifterBreakout design in my own project?
Yes, under the terms of its MIT license, which Konn1nn chose for the repository.
