Yet another gps pps opnsense
About the Yet another gps pps opnsense PCB
Yet another gps pps opnsense is an open source PCB design by kquinsland01, published on GitHub. It is a 2-layer board measuring 67 × 59 mm, with 17 components from 11 distinct parts.
Other key parts include the ST202CDR (MAX3232 clone). By type, the board carries 5 connectors, 5 capacitors, 3 diodes, 3 resistors and 1 IC.
It belongs with the rf & radio designs in this gallery.

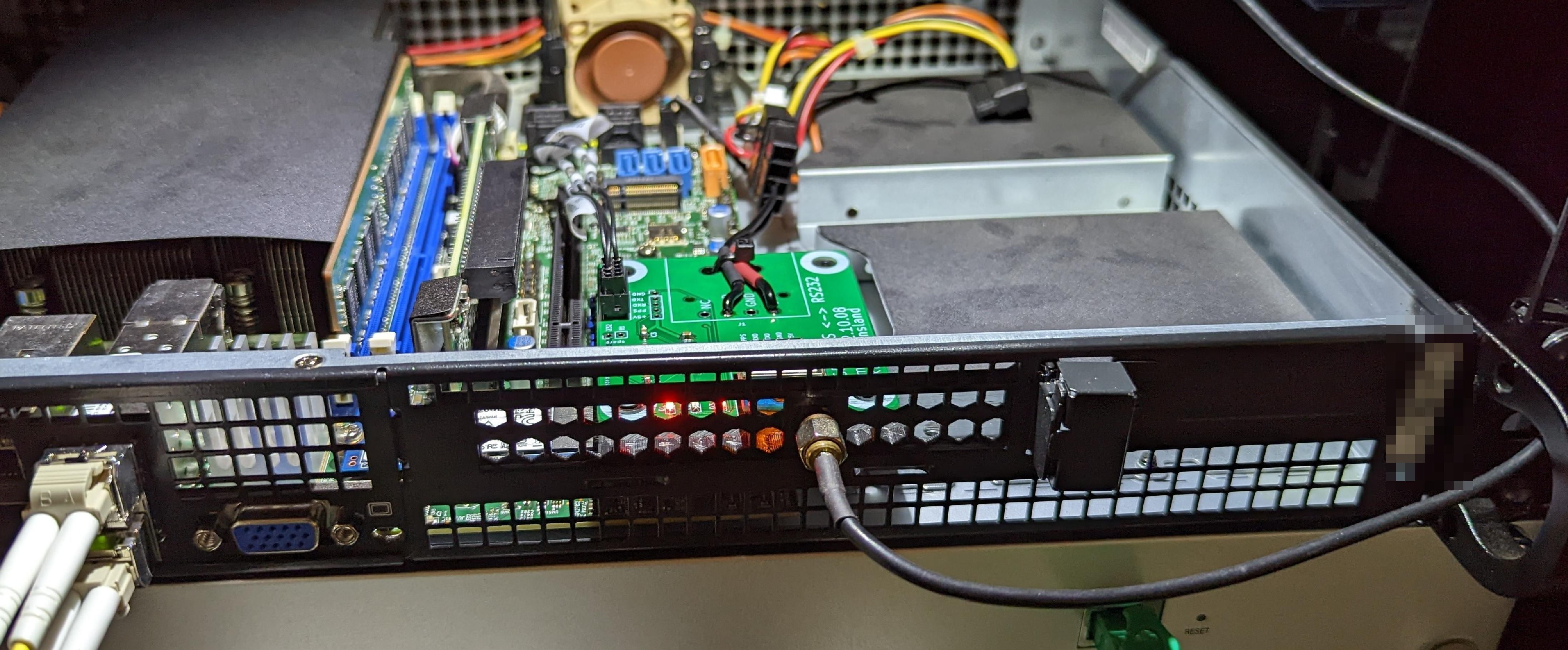

From the project
The core concept isn't anything "new" or "innovative" (see below) but the specific implementation is. While the implementation was specific to my needs, I'm publishing it because it may be useful for others as well.
The core concept isn't anything "new" or "innovative" (see below) but the specific implementation is. While the implementation was specific to my needs, I'm publishing it because it may be useful for others as well.
My preferred router/firewall OS has a built in NTP server known as ntpd. Precisely how NTP works is beyond the scope of the document, but in short:
Main components on the Yet another gps pps opnsense
Yet another gps pps opnsense bill of materials (BOM)
17 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ST202CDR (MAX3232 clone) | SOIC-16_3.9x9.9mm_P1.27mm | U1 |
| 1 | TMP: molex | AMP 1-480426-0 (4 pin atx molex) | J1 |
| 1 | GPS/PPS module | PinSocket_1x05_P2.54mm_Horizontal | J2 |
| 1 | 232_supermicro | 878311020 | J3 |
| 1 | 232_universal | PinHeader_1x05_P2.54mm_Vertical | J4 |
| 1 | spare | PinHeader_1x02_P2.54mm_Vertical | J5 |
| 1 | TXD | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D1 |
| 1 | RXD | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D2 |
| 1 | PPS | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D3 |
| 5 | .1μF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2, C3, C4, C5 |
| 3 | 1K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2, R3 |
Yet another gps pps opnsense design files
The KiCad project lives in the kquinsland01/yet-another-gps-pps-opnsense repository on GitHub; these links point at the commit this page was built from.
Yet another gps pps opnsense: common questions
How big is the Yet another gps pps opnsense PCB?
The Yet another gps pps opnsense measures 67 × 59 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Yet another gps pps opnsense?
17 components, from 11 distinct parts. The full bill of materials is listed on this page.
Where can I download the Yet another gps pps opnsense design files?
From the kquinsland01/yet-another-gps-pps-opnsense repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Yet another gps pps opnsense design in my own project?
The repository has no license, so all rights stay with kquinsland01. Use it as a reference, and ask the author before reusing the design.
