Carga-Electronica-STM32
About the Carga-Electronica-STM32 PCB
Carga-Electronica-STM32 is an open source PCB design by kr4fty, published on GitHub. It is a 2-layer board measuring 100 × 50 mm, with 45 components from 33 distinct parts.
Other key parts include the BP, LM324 and AMS1117-5.0. By type, the board carries 17 resistors, 10 capacitors, 8 connectors, 4 transistors, 3 ICs and 2 diodes.
From the project

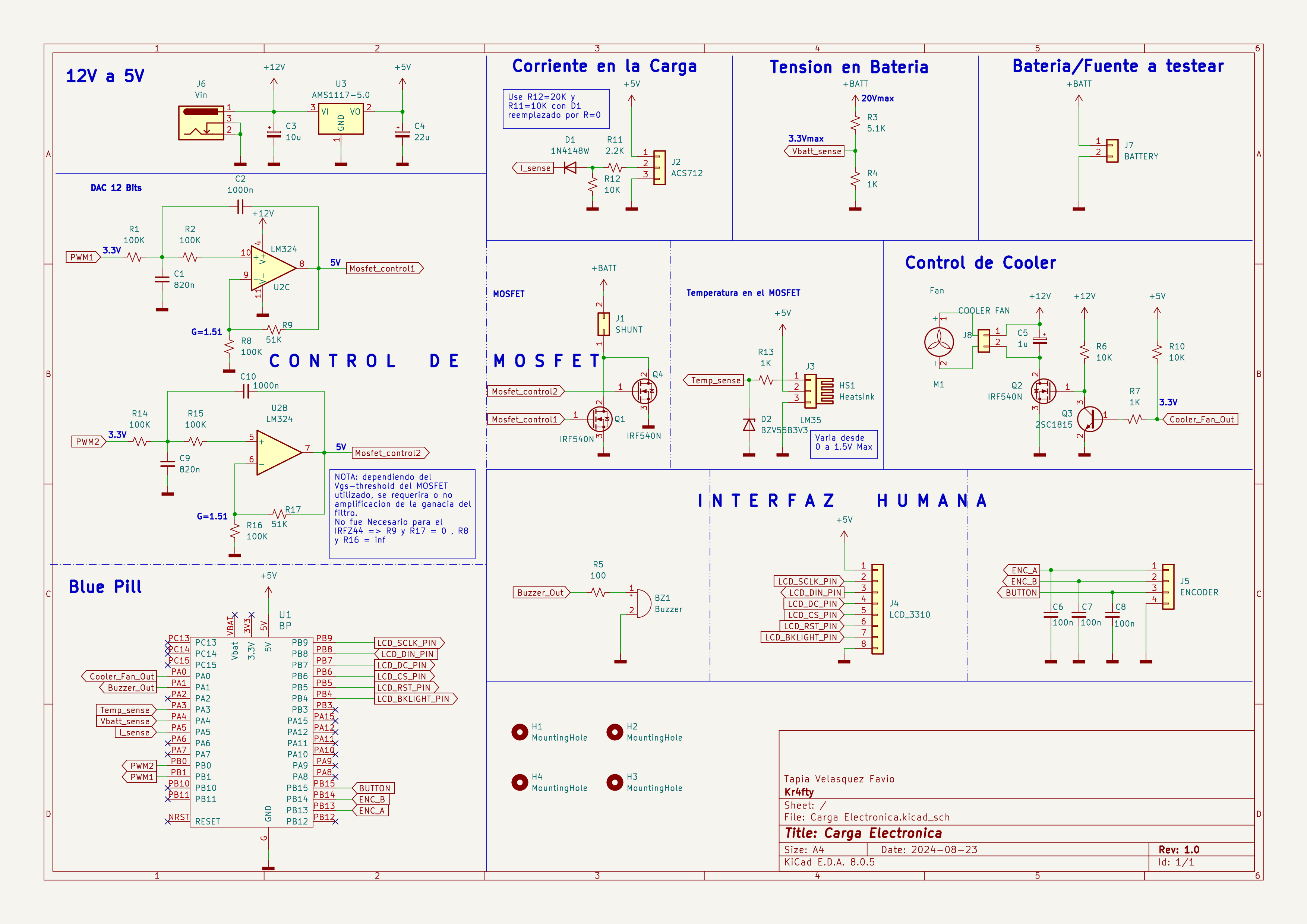

Desarrollo de un Sistema de Control PID para una Carga Electrónica utilizando un STM32
Main components on the Carga-Electronica-STM32
Carga-Electronica-STM32 bill of materials (BOM)
45 components, 33 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BP | blue_pill_no_flashing_port | U1 |
| 1 | LM324 | SOIC-14_3.9x8.7mm_P1.27mm | U2 |
| 1 | AMS1117-5.0 | SOT-223-3_TabPin2 | U3 |
| 2 | IRF540N | Molex_KK-396_5273-03A_1x03_P3.96mm_Vertical | Q1, Q4 |
| 1 | IRF540N | TO-220-3_Vertical | Q2 |
| 1 | 2SC1815 | SOT-23 | Q3 |
| 1 | SHUNT | Molex_KK-396_5273-02A_1x02_P3.96mm_Vertical | J1 |
| 1 | ACS712 | Molex_KK-254_AE-6410-03A_1x03_P2.54mm_Vertical | J2 |
| 1 | LM35 | Molex_KK-254_AE-6410-03A_1x03_P2.54mm_Vertical | J3 |
| 1 | LCD_3310 | Molex_KK-254_AE-6410-08A_1x08_P2.54mm_Vertical | J4 |
| 1 | ENCODER | Molex_KK-254_AE-6410-04A_1x04_P2.54mm_Vertical | J5 |
| 1 | Vin | BarrelJack_Horizontal | J6 |
| 1 | BATTERY | Molex_KK-396_5273-02A_1x02_P3.96mm_Vertical | J7 |
| 1 | COOLER FAN | Molex_KK-396_5273-02A_1x02_P3.96mm_Vertical | J8 |
| 1 | Buzzer | Buzzer_TDK_PS1240P02BT_D12.2mm_H6.5mm | BZ1 |
| 1 | 1N4148W | D_SOD-123 | D1 |
| 1 | BZV55B3V3 | D_MiniMELF | D2 |
| 2 | 820n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C9 |
| 2 | 1000n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C2, C10 |
| 1 | 10u | CP_Elec_6.3x5.2 | C3 |
Show 13 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 22u | CP_Elec_6.3x5.2 | C4 |
| 1 | 1u | CP_Elec_6.3x5.2 | C5 |
| 3 | 100n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C6, C7, C8 |
| 5 | 100K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2, R8, R14, R15 |
| 2 | 100K | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R3, R16 |
| 1 | 20K | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R4 |
| 1 | 100 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R5 |
| 2 | 10K | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R6, R10 |
| 1 | 1K | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R7 |
| 2 | 51K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R9, R17 |
| 1 | 2.2K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R11 |
| 1 | 10K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R12 |
| 1 | 1K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R13 |
Carga-Electronica-STM32 design files
The KiCad project lives in the kr4fty/Carga-Electronica-STM32 repository on GitHub; these links point at the commit this page was built from.
Carga-Electronica-STM32: common questions
How big is the Carga-Electronica-STM32 PCB?
The Carga-Electronica-STM32 measures 100 × 50 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Carga-Electronica-STM32?
45 components, from 33 distinct parts. The full bill of materials is listed on this page.
Where can I download the Carga-Electronica-STM32 design files?
From the kr4fty/Carga-Electronica-STM32 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Carga-Electronica-STM32 design in my own project?
The repository has no license, so all rights stay with kr4fty. Use it as a reference, and ask the author before reusing the design.
