About the STM32F103-dev board
STM32F103-dev board is an open source STM32 PCB design by Kraad25, published on GitHub. It is a 2-layer board measuring 38 × 38 mm, with 21 components from 11 distinct parts.
Its main chip is the STM32F103C8T6, from the STM32 family. By type, the board carries 13 capacitors, 5 resistors, 1 IC and 1 inductor.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

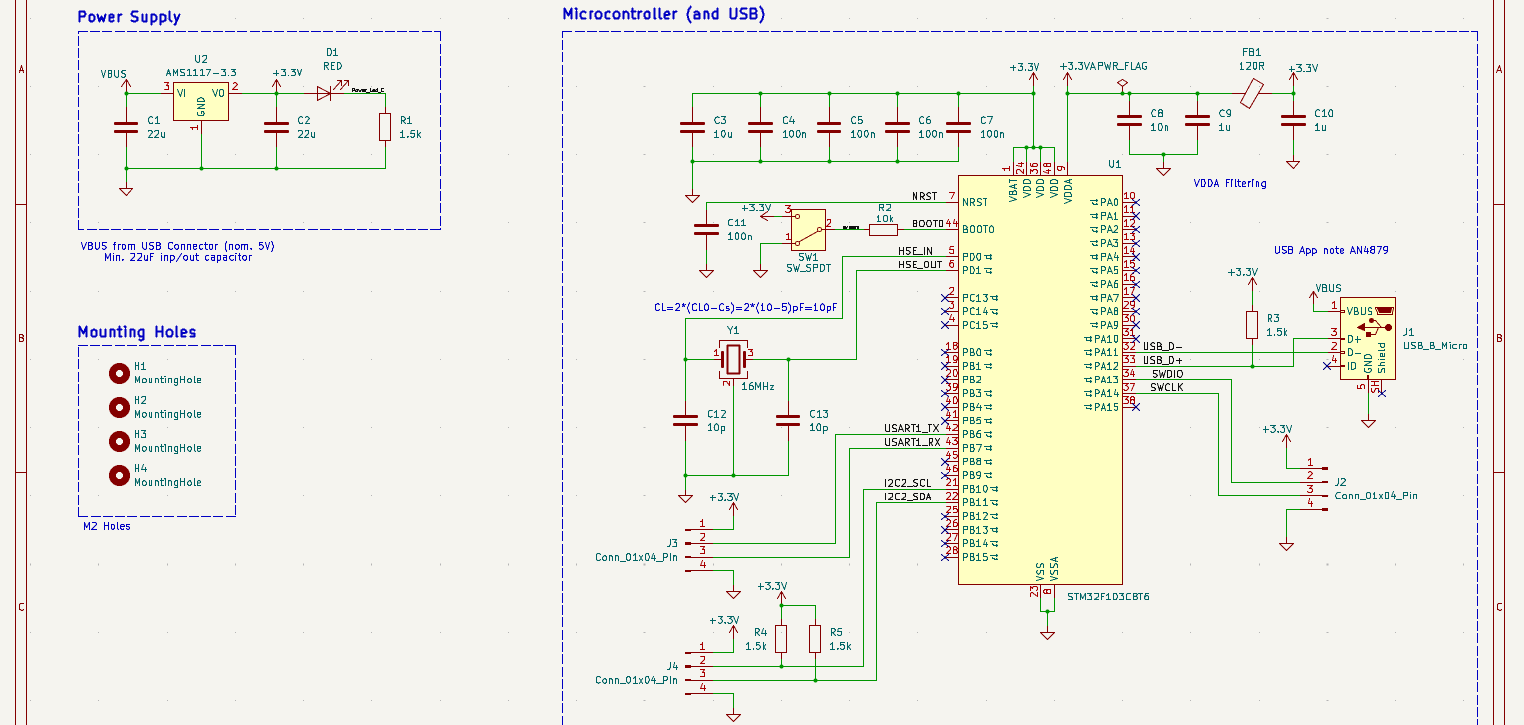

STM32F103C8T6 dev board — KiCad schematic, PCB layout, and manufacturing files.
A first PCB design project - an STM32F103C8T6 development board with USB, designed in KiCad while following Phil's Lab's PCB design course:
Guided by Phil's Lab's course - schematic and initial routing approach based on his walkthrough, with some layout and footprint adjustments made independently.
- MCU: STM32F103C8T6 - Power: USB (5V), 3.3V via AMS1117-3.3 regulator - Interfaces: USB (Micro-B), UART, SWD, I2C - Layers: 2-layer, 1oz copper - Board size: 32 x 32mm, 3mm corner radius - Status: DRC-clean, manufacturing files generated (Gerbers, BOM, CPL)

Main components on the STM32F103-dev board
STM32F103-dev board bill of materials (BOM)
21 components, 11 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32F103C8T6 | LQFP-48_7x7mm_P0.5mm | U1 |
| 1 | Conn_01x04_Pin | PinHeader_1x04_P2.54mm_Vertical | I2C |
| 1 | 120R | L_0603_1608Metric | FB1 |
| 2 | 22U 22u | C_0805_2012Metric | C1, C2 |
| 1 | 10U 10u | C_0603_1608Metric | C3 |
| 5 | 100N 100n | C_0402_1005Metric | C4, C5, C6, C7, C11 |
| 1 | 10N 10n | C_0402_1005Metric | C8 |
| 2 | 1u | C_0402_1005Metric | C9, C10 |
| 2 | 10P 10p | C_0402_1005Metric | C12, C13 |
| 4 | 1.5K 1.5k | R_0402_1005Metric | R1, R3, R4, R5 |
| 1 | 10K 10k | R_0402_1005Metric | R2 |
STM32F103-dev board design files
The KiCad project lives in the Kraad25/STM32F103-dev-board repository on GitHub; these links point at the commit this page was built from.
- LayoutSTM32.kicad_pcb
- SchematicSTM32.kicad_sch
- BOMManufacturing/STM32_BOM.csv
STM32F103-dev board: common questions
What microcontroller does the STM32F103-dev board use?
The STM32F103-dev board is built around the STM32F103C8T6, from the STM32 family.
How big is the STM32F103-dev board?
The STM32F103-dev board measures 38 × 38 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the STM32F103-dev board?
21 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the STM32F103-dev board design files?
From the Kraad25/STM32F103-dev-board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the STM32F103-dev board design in my own project?
The repository has no license, so all rights stay with Kraad25. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the STM32F103-dev board without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
