PCBCard PCB layout, top view — open source AVR/Arduino board by kwame-y

About the PCBCard PCB

PCBCard is an open source AVR/Arduino PCB design by kwame-y, published on GitHub under the MIT license. It is a 2-layer board measuring 89 × 51 mm, with 12 components from 9 distinct parts.

Its main chip is the ATTINY85-20SU, from the AVR/Arduino family. Other key parts include the MAX30102EFD+T and NT3H2211W0FHKH. By type, the board carries 4 resistors, 3 ICs, 2 diodes, 2 capacitors and 1 battery holder.

From the project

Custom PCB Business card as my first electrical engineering related project (for Hack Club Forge)

I mainly worked on this because I wanted to challenge to construct my fully polished PCB device, and to get my foot in the door in learning electronics, KiCAD, and some SVG editors.

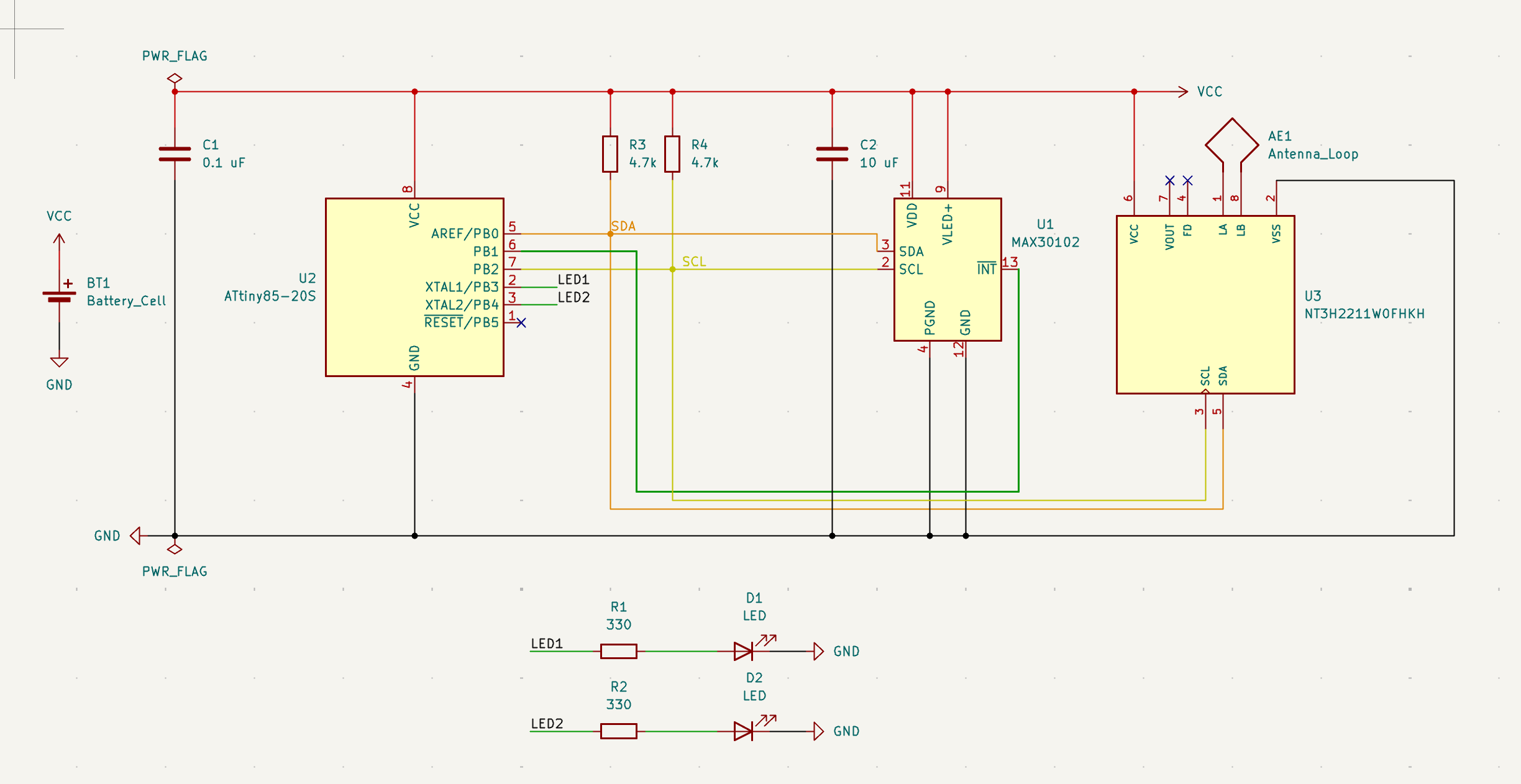

PCBCard, from the project README
From the project README

Main components on the PCBCard

MAX30102EFD+TATTINY85-20SUNT3H2211W0FHKH

PCBCard bill of materials (BOM)

12 components, 9 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MAX30102EFD+T
MAX30102
Analog Devices Inc./Maxim Integrated
U1
1
ATTINY85-20SU
ATtiny85-20S
Microchip Technology
U2
1
NT3H2211W0FHKH
NXP Semicon
U3
1
CR2032-BS-6-1
Battery_Cell
Q&J
BT1
2
NCD0805R1
LED
Foshan NationStar Optoelectronics
D1, D2
1
CC0805KRX7R9BB104
0.1 uF
YAGEO
C1
1
GRM21BR61H106KE43L
10 uF
Murata Electronics
C2
2
0805W8F3300T5E
330
UNI-ROYAL(Uniroyal Elec)
R1, R2
2
0805W8F4701T5E
4.7k
UNI-ROYAL(Uniroyal Elec)
R3, R4

PCBCard design files

The KiCad project lives in the kwame-y/PCBCard repository on GitHub; these links point at the commit this page was built from.

PCBCard: common questions

What microcontroller does the PCBCard use?

The PCBCard is built around the ATTINY85-20SU, from the AVR/Arduino family.

How big is the PCBCard PCB?

The PCBCard measures 89 × 51 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PCBCard?

12 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the PCBCard design files?

From the kwame-y/PCBCard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the PCBCard design in my own project?

Yes, under the terms of its MIT license, which kwame-y chose for the repository.

Can I test firmware for the PCBCard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
