Cosmic-Girl-Macropad PCB layout, top view — open source board by lastmachine

About the Cosmic-Girl-Macropad PCB

Cosmic-Girl-Macropad is an open source PCB design by lastmachine, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 98 × 98 mm, with 31 components from 6 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 19 diodes, 10 switches, 1 IC and 1 connector.

It belongs with the displays & leds and keyboards designs in this gallery.

From the project

A personal cosmic-themed XIAO-RP2040-powered macropad for games, video editing, or anything you'd like to customize. It features 9 MX-style switches, 1 EC11 rotary encoder, and a 128x32 OLED screen. Made using KiCad, Fusion 360, and Visual Studio Code.

Having 9 keys makes it perfect for media editing and streaming; those are the main usages I want to give it. Of course, this macropad would work for anything else that allows custom binds. KMK firmware written in Python, is open to modifications

It is called "Cosmic Girl" because I really like the song of the same name created by the band "Jamiroquai," and also space aesthetics.

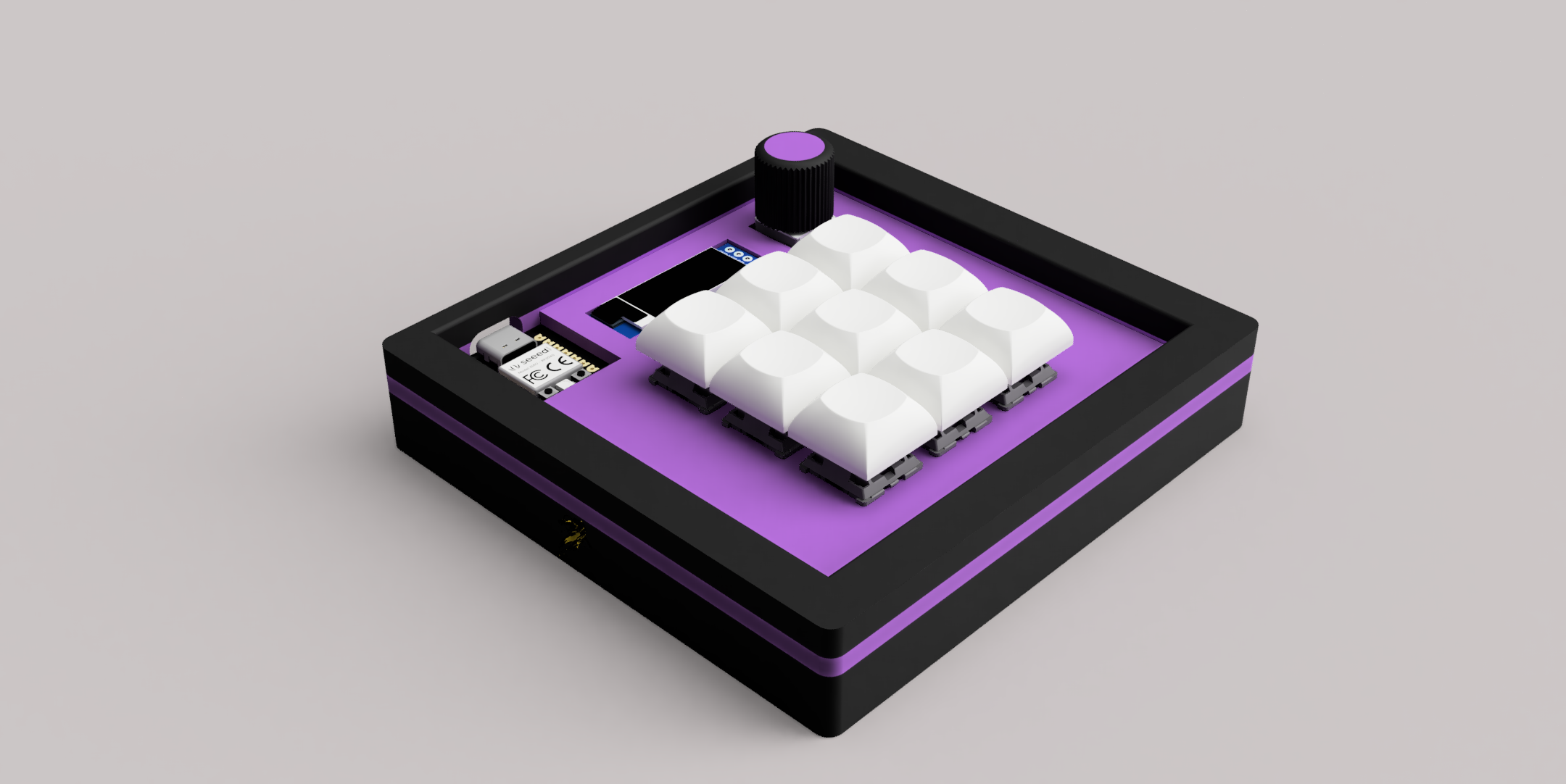

Cosmic-Girl-Macropad, from the project README — From the project README

Main components on the Cosmic-Girl-Macropad

MOUDLE-SEEEDUINO-XIAO

Cosmic-Girl-Macropad bill of materials (BOM)

31 components, 6 distinct parts.

Qty	Part	Footprint	Refs
1	MOUDLE-SEEEDUINO-XIAO	XIAO-Generic-Hybrid-14P-2.54-21X17.8MM	U1
1	OLED_DISPLAY	SSD1306-0.91-OLED-4pin-128x32	J1
9	SW_Push	SW_Cherry_MX_1.00u_PCB	SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +1
1	RotaryEncoder_Switch	RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm	SW10
10	1N4148	D_DO-35_SOD27_P7.62mm_Horizontal	D1, D2, D3, D4, D5, D6, D7, D8 +2
9	SK6812MINI-E	SK6812MINI-E_fixed	D11, D12, D13, D14, D15, D16, D17, D18 +1

Cosmic-Girl-Macropad design files

The KiCad project lives in the lastmachine/Cosmic-Girl-Macropad repository on GitHub; these links point at the commit this page was built from.

LayoutPCB/CosmicGirl.kicad_pcb
SchematicPCB/CosmicGirl.kicad_sch

Cosmic-Girl-Macropad: common questions

How big is the Cosmic-Girl-Macropad PCB?

The Cosmic-Girl-Macropad measures 98 × 98 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Cosmic-Girl-Macropad?

31 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Cosmic-Girl-Macropad design files?

From the lastmachine/Cosmic-Girl-Macropad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Cosmic-Girl-Macropad design in my own project?

Yes, under the terms of its GPL-2.0 license, which lastmachine chose for the repository.
