Acoustic levitation
About the Acoustic levitation PCB
Acoustic levitation is an open source PCB design by leastrobino, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 88 × 88 mm, with 66 components from 12 distinct parts.
Other key parts include the MAX17079GTL+ and TSR2-2450. By type, the board carries 12 capacitors, 10 connectors, 7 ICs and 1 transistor.
From the project
Mirror of GitLab repository, all issues and pull requests should be created there.
An acoustic levitation device designed as a daughterboard for the DE0-Nano-SoC (Terasic Inc.)

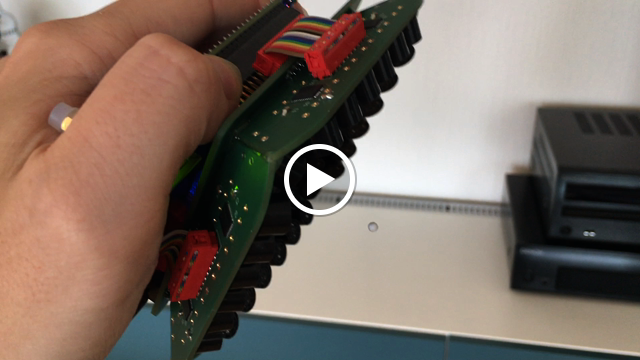

[](https://leastrobino.github.io/acoustic-levitation/image1.jpg)[](https://leastrobino.github.io/acoustic-levitation/image2.jpg)[](https://leastrobino.github.io/acoustic-levitation/image3.jpg)[](https://leastrobino.github.io/acoustic-levitation/image4.jpg)
The piezoelectric transducers signals generation is written in VHDL. The phases computation and the G-Code interpreter are written in C and run on embedded Linux. The device controls 88 channels at 40 kHz with a phase resolution of π/625.
Main components on the Acoustic levitation
Acoustic levitation bill of materials (BOM)
66 components, 12 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 6 | MAX17079GTL+ MAX17079 Maxim Integrated | QFN-40-1EP_6x6mm_Pitch0.5mm_HandSoldering | U1, U2, U3, U4, U5, U6 |
| 1 | TSR2-2450 Traco Power | Traco_TSR2 | U7 |
| 1 | SI3421DV-T1-GE3 Si3421DV Vishay Siliconix | TSOP-6_2.9x1.5mm_Pitch0.95mm | Q1 |
| 1 | SSW-120-03-G-D DE0-Nano-SoC: GPIO 0 Samtec Inc. | Socket_Strip_Straight_2x20_Pitch2.54mm | J1 |
| 1 | SSW-120-03-G-D DE0-Nano-SoC: GPIO 1 Samtec Inc. | Socket_Strip_Straight_2x20_Pitch2.54mm | J2 |
| 1 | 61300811121 DE0-Nano-SoC: JP3 Wurth Electronics Inc. | Pin_Header_Straight_1x08_Pitch2.54mm | J3 |
| 1 | 61301011121 DE0-Nano-SoC: JP2 Wurth Electronics Inc. | Pin_Header_Straight_1x10_Pitch2.54mm | J4 |
| 1 | 61300111121 DE0-Nano-SoC: JP5[3] Wurth Electronics Inc. | Pin_Header_Straight_1x01_Pitch2.54mm | J5 |
| 4 | 8-215079-8 TE Connectivity AMP Connectors | TE_8-215079-8 | J6, J7, J8, J9 |
| 1 | PJ-102AH CUI Inc. | CUI_PJ-102AH | J10 |
| 36 | MA40S4S Murata | Murata_MA40S4S_TE_8134-HC-8P2 | TR1, TR2, TR3, TR4, TR5, TR6, TR7, TR8 +28 |
| 12 | 885012207072 100n Wurth Electronics Inc. | C_0805_HandSoldering | C1, C2, C3, C4, C5, C6, C7, C8 +4 |
