Pathfinder Fidget RGB Macropad

LeoMos10·Pathfinder_Fidget_RGB_Macropad·HARDWARE/kicad/path_finder.kicad_pcb

Pathfinder Fidget RGB Macropad PCB layout, top view — open source board by LeoMos10
Simulate this board

About the Pathfinder Fidget RGB Macropad PCB

Pathfinder Fidget RGB Macropad is an open source PCB design by LeoMos10, published on GitHub. It is a 2-layer board measuring 46.1 × 63.1 mm, with 20 components from 7 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 5 resistors, 4 switches, 4 diodes, 4 capacitors, 2 connectors and 1 IC.

It belongs with the keyboards and dev boards & breakouts designs in this gallery.

From the project

A custom 4-key RGB fidget game / macropad /carrier board for seed studio XIAO

A custom 4-key RGB fidget game / macropad /carrier board for seed studio XIAO Prices screenshot

4x Cherry MX style switches + keycaps(transparent for better effect) 4x SK6812MINI-E addressable RGB LEDs, one per each key Seeed Studio XIAO RP2040 microcontroller, mounted flat on the front of the board 2 layer PCB, 46mm x 63mm 2 JP pin header (optional for expanding the board)(2,5mm) 2 JP pin header (optiona for easier mounting the XIAO)(2,5mm) 4 ceramic condensator 100nF 5 resistors (1 × 330 Ω + 4 × 1 kΩ only if using mount holes as GPIO) * 4x M4 screws (only if using mount hole as indeed)

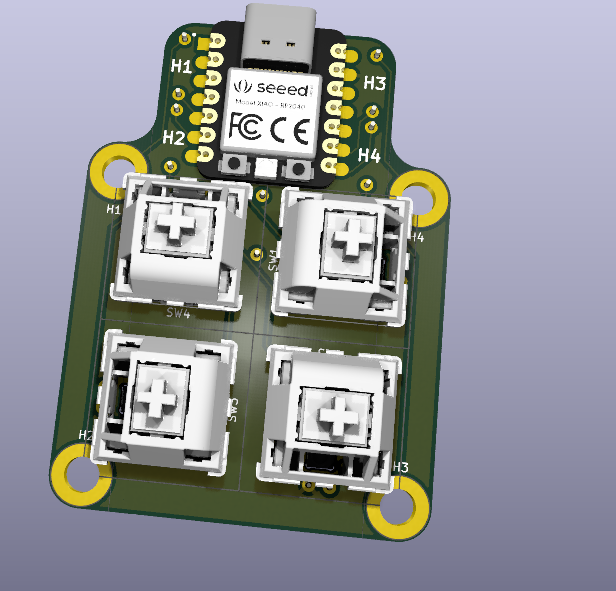

Pathfinder Fidget RGB Macropad, from the project README
From the project README

Main components on the Pathfinder Fidget RGB Macropad

MOUDLE-SEEEDUINO-XIAO

Pathfinder Fidget RGB Macropad bill of materials (BOM)

20 components, 7 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MOUDLE-SEEEDUINO-XIAO
U1
2
Conn_01x07
J1a1, J1b1
4
SW_Push
SW1, SW2, SW3, SW4
4
SK6812MINI-E
D1, D2, D3, D4
4
100 nF
C1, C2, C3, C4
4
1 kΩ
R1, R2, R3, R4
1
R330Ω
R5

Pathfinder Fidget RGB Macropad design files

The KiCad project lives in the LeoMos10/Pathfinder_Fidget_RGB_Macropad repository on GitHub; these links point at the commit this page was built from.

Pathfinder Fidget RGB Macropad: common questions

How big is the Pathfinder Fidget RGB Macropad PCB?

The Pathfinder Fidget RGB Macropad measures 46.1 × 63.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pathfinder Fidget RGB Macropad?

20 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Pathfinder Fidget RGB Macropad design files?

From the LeoMos10/Pathfinder_Fidget_RGB_Macropad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Pathfinder Fidget RGB Macropad design in my own project?

The repository has no license, so all rights stay with LeoMos10. Use it as a reference, and ask the author before reusing the design.
