Game-Console

li231sd·Game-Console·Game Console/Game Console.kicad_pcb

Game-Console PCB layout, top view — open source AVR/Arduino board by li231sd

About the Game-Console PCB

Game-Console is an open source AVR/Arduino PCB design by li231sd, published on GitHub. It is a 2-layer board measuring 124.9 × 52.2 mm, with 4 components from 4 distinct parts.

Its main chip is the Clone_Pro_Mini_Socket, from the AVR/Arduino family.

It belongs with the displays & leds and usb & debug tools designs in this gallery.

From the project

A small game console that allows you to play a block game!

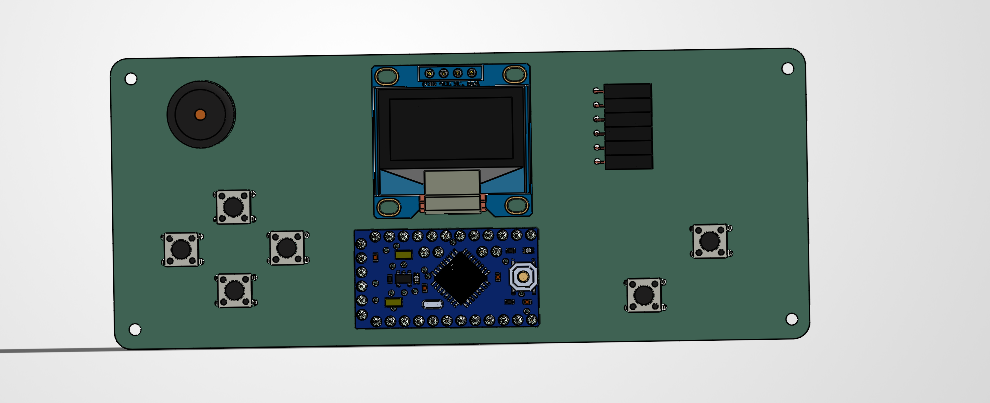

Game-Console, from the project README
From the project README

Game-Console bill of materials (BOM)

4 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
~
Ard-PM1
1
Buzzer
BZ1
1
Conn_01x06_Pin
FT232RLFTDI1
1
Conn_01x04_Socket
SSD1306

Game-Console design files

The KiCad project lives in the li231sd/Game-Console repository on GitHub; these links point at the commit this page was built from.

Game-Console: common questions

What microcontroller does the Game-Console use?

The Game-Console is built around the Clone_Pro_Mini_Socket, from the AVR/Arduino family.

How big is the Game-Console PCB?

The Game-Console measures 124.9 × 52.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Game-Console?

4 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Game-Console design files?

From the li231sd/Game-Console repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Game-Console design in my own project?

The repository has no license, so all rights stay with li231sd. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Game-Console without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
