CandleLightfd-S01 3x3

linux-automation·candleLightFD·release/candlelightfd-S01-R01/candlelightfd-P01-R01-V01/panel_3x3/candleLightfd-S01_3x3.kicad_pcb

CandleLightfd-S01 3x3 PCB layout, top view — open source STM32 board by linux-automation
Simulate this board

About the CandleLightfd-S01 3x3 PCB

CandleLightfd-S01 3x3 is an open source STM32 PCB design by linux-automation, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 119.1 × 80.4 mm, with 41 components from 23 distinct parts.

Its main chip is the STM32G0B1CBT, from the STM32 family. Other key parts include the MCP1754ST-3302E/MB and TJA1051T/3. By type, the board carries 11 capacitors, 8 resistors, 5 test points, 4 ICs, 4 crystals and 3 diodes.

From the project

USB CAN-FD interface based on the STM32G0 that works well with gs_usb on Linux

candleLight FD is a modern, CAN-FD capable version of the candleLight based on a STM32G0B1 microcontroller.

Out of the box it comes with a single CAN channel placed. But footprints for a second CAN channel are available.

The candleLight FD is - like the candleLight - licensed under the CERN OHL v1.2 open hardware license.

The candleLight FD is available from Linux Automation as a SMD-assembled and functionally tested kit.

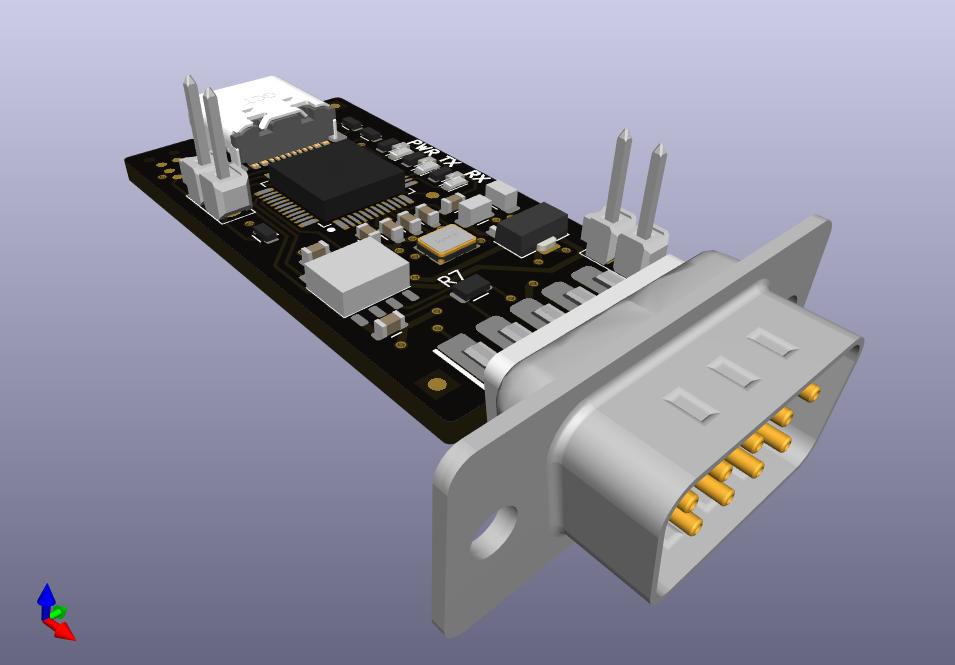

CandleLightfd-S01 3x3, from the project README
From the project README

Main components on the CandleLightfd-S01 3x3

STM32G0B1CBTMCP1754ST-3302E/MBTJA1051T/3

CandleLightfd-S01 3x3 bill of materials (BOM)

41 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32G0B1CBT
ST
U1
1
MCP1754ST-3302E/MB
Microchip
U2
2
TJA1051T/3
TJA1051T3
NXP
U3, U4
1
629722000214
629722000214_pasteInHole
Würth Elektronik
X1
1
~
nan, nan
X2
1
TC2030-NL
Tag-Connect
X3
1
830108313809
830055299
Würth Elektronik
Y1
2
generic
CONN_01X02
generic
P1, P2
1
LAG_Rocket
NB1
1
LAYERSTACK_TB
NB2
2
Passermarke_1mm_1.8mmx1.8mm
NB3, NB4
3
any
TP2.0mm
any
TP1, TP2, TP3
2
any
TP1.0mm
any
TP4, TP5
2
KPT-1608SGC
Kingbright
D1, D2
1
KPT-1608EC
Kingbright
D3
2
any
6p2_0603_C0G_5%_50V_-40C..125C_Chip-Capacitor
any
C1, C2
3
MC0603B104K500CT
100n
Multicomp
C3, C4, C5
2
any
10u_0805_X7R_10%_10V_-40C..125C_Chip-Capacitor
any
C6, C7
4
any
100n_0603_X7R_10%_50V_-40C..125C_Chip-Capacitor
any
C8, C9, C10, C11
2
any
5k1_0603_100mW_1%_E24_Chip-Resistor
any
R1, R2
Show 3 more
QtyPartRefs
3
any
1k_0603_100mW_1%_E24_Chip-Resistor
any
R3, R4, R5
1
any
10k_0603_100mW_1%_E24_Chip-Resistor
any
R6
2
any
120R_0805_125mW_1%_E24_Chip-Resistor
any
R7, R8

CandleLightfd-S01 3x3 design files

The KiCad project lives in the linux-automation/candleLightFD repository on GitHub; these links point at the commit this page was built from.

CandleLightfd-S01 3x3: common questions

What microcontroller does the CandleLightfd-S01 3x3 use?

The CandleLightfd-S01 3x3 is built around the STM32G0B1CBT, from the STM32 family.

How big is the CandleLightfd-S01 3x3 PCB?

The CandleLightfd-S01 3x3 measures 119.1 × 80.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the CandleLightfd-S01 3x3?

41 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the CandleLightfd-S01 3x3 design files?

From the linux-automation/candleLightFD repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the CandleLightfd-S01 3x3 design in my own project?

Yes, under the terms of its CERN-OHL-1.2 license, which linux-automation chose for the repository.

Can I test firmware for the CandleLightfd-S01 3x3 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
