ESP32 LogicAnalyzer
lmcapacho·ESP32_LogicAnalyzer·hardware/ESP32_LogicAnalyzer.kicad_pcb
About the ESP32 LogicAnalyzer PCB
ESP32 LogicAnalyzer is an open source PCB design by lmcapacho, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 48 × 53.3 mm, with 12 components from 6 distinct parts.
Other key parts include the SN74LVC245APW. By type, the board carries 4 connectors, 4 resistors, 2 ICs and 2 capacitors.
It belongs with the test & measurement designs in this gallery.
From the project
Low-cost logic analyzer using ESP32 for fast digital signal debugging
A SUMP compatible 16Bit Logic Analyzer for ESP32 MCUs.

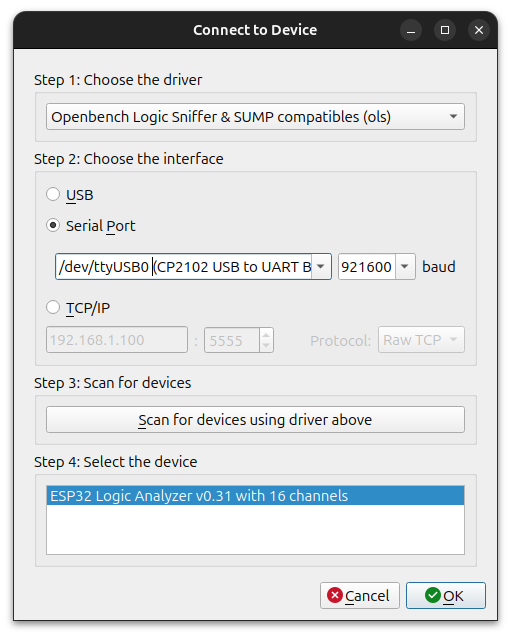

- Uses ESP32 I2S DMA and can capture speeds up to 20 MHz. - Supports 8-bit and 16-bit operations. - Maximum 128k samples (even in 8-bit capturing mode). - RLE compression supported. - Default OLS port is UART0 with a default baud rate of 912600. - You can configure UART ports and high-speed baud rates for OLS communication by editing the definitions in LogicAnalyzerConfig.h.

Main components on the ESP32 LogicAnalyzer
ESP32 LogicAnalyzer bill of materials (BOM)
12 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | SN74LVC245APW | TSSOP-20_4.4x6.5mm_P0.65mm | U1, U2 |
| 2 | CONN_01X15 Conn_01x15 | PinSocket_1x15_P2.54mm_Vertical | J1, J2 |
| 1 | CHANNELS | PinHeader_2x10_P2.54mm_Vertical | J3 |
| 1 | DEBUG | PinHeader_1x03_P2.54mm_Vertical | J4 |
| 2 | 100N 100n | C_0603_1608Metric | C1, C2 |
| 4 | 10K | R_0603_1608Metric | R1, R2, R3, R4 |
ESP32 LogicAnalyzer design files
The KiCad project lives in the lmcapacho/ESP32_LogicAnalyzer repository on GitHub; these links point at the commit this page was built from.
ESP32 LogicAnalyzer: common questions
How big is the ESP32 LogicAnalyzer PCB?
The ESP32 LogicAnalyzer measures 48 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ESP32 LogicAnalyzer?
12 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the ESP32 LogicAnalyzer design files?
From the lmcapacho/ESP32_LogicAnalyzer repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the ESP32 LogicAnalyzer design in my own project?
Yes, under the terms of its GPL-3.0 license, which lmcapacho chose for the repository.
