Acnode doorbot
About the Acnode doorbot PCB
Acnode doorbot is an open source PCB design by londonhackspace, published on GitHub. It is a 2-layer board measuring 55.9 × 124.5 mm, with 18 components from 14 distinct parts.
Other key parts include the LM7805_TO220. By type, the board carries 10 connectors, 2 diodes, 2 capacitors, 1 IC, 1 transistor and 1 relay.
From the project

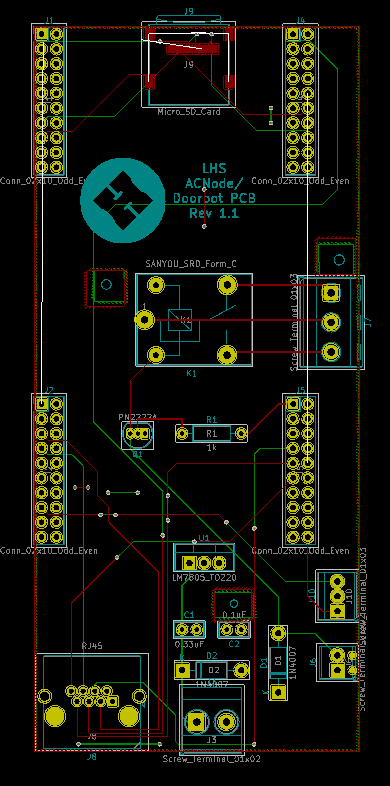

ACnode using a Connected Launchpad
Main components on the Acnode doorbot
Acnode doorbot bill of materials (BOM)
18 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM7805_TO220 | TO-220-3_Vertical | U1 |
| 1 | PN2222A | TO-92_Inline | Q1 |
| 4 | Conn_02x10_Odd_Even | PinHeader_2x10_P2.54mm_Vertical | J1, J2, J4, J5 |
| 1 | Screw_Terminal_01x02 | TerminalBlock_Phoenix_MKDS-3-2-5.08_1x02_P5.08mm_Horizontal | J3 |
| 1 | Screw_Terminal_01x02 | TerminalBlock_Phoenix_MPT-0,5-2-2.54_1x02_P2.54mm_Horizontal | J6 |
| 1 | Screw_Terminal_01x03 | TerminalBlock_RND_205-00288_1x03_P5.08mm_Horizontal | J7 |
| 1 | RJ45 | RJ45_Amphenol_RJHSE5380 | J8 |
| 1 | Micro_SD_Card | microSD_HC_Wuerth_693072010801 | J9 |
| 1 | Screw_Terminal_01x03 | TerminalBlock_TE_282834-3_1x03_P2.54mm_Horizontal | J10 |
| 1 | SANYOU_SRD_Form_C | Relay_SPDT_SANYOU_SRD_Series_Form_C | K1 |
| 2 | 1N4007 | D_DO-41_SOD81_P10.16mm_Horizontal | D1, D2 |
| 1 | 0.33uF | C_Disc_D5.0mm_W2.5mm_P2.50mm | C1 |
| 1 | 0.1uF | C_Disc_D5.0mm_W2.5mm_P2.50mm | C2 |
| 1 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
Acnode doorbot design files
The KiCad project lives in the londonhackspace/acnode-cl repository on GitHub; these links point at the commit this page was built from.
Acnode doorbot: common questions
How big is the Acnode doorbot PCB?
The Acnode doorbot measures 55.9 × 124.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Acnode doorbot?
18 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the Acnode doorbot design files?
From the londonhackspace/acnode-cl repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Acnode doorbot design in my own project?
The repository has no license, so all rights stay with londonhackspace. Use it as a reference, and ask the author before reusing the design.
