Acnode reader direct
About the Acnode reader direct PCB
Acnode reader direct is an open source PCB design by londonhackspace, published on GitHub. It is a 2-layer board measuring 53 × 72.1 mm, with 7 components from 5 distinct parts.
By type, the board carries 4 connectors and 3 resistors.
From the project
ACnode using a Connected Launchpad
designed to connect an RJ45 socket to an Elechouse V4 NFC module without spaghetti wiring.

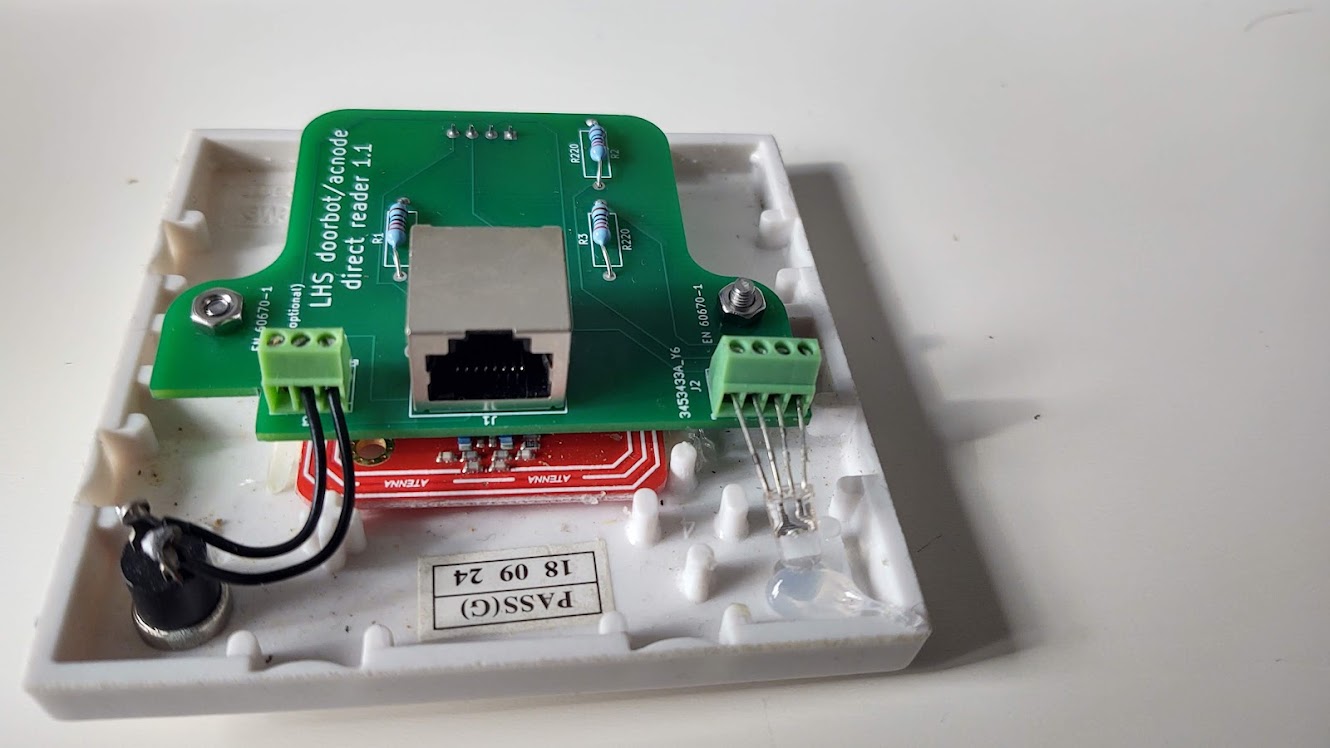

Initial revision of this is targeted at EN 60670-1 socket back-boxes / blanking plate builds as used by Doorbots. There's no reason not to use them for acnodes as well, but a near-future revision (possibly before ordering the boards) will include support for the existing boxes used for AC node builds with the massive arcade buttons, by means of different mounting holes.
Acnode reader direct bill of materials (BOM)
7 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RJ45 | RJ45_Amphenol_RJHSE5380 | J1 |
| 1 | B- G- +5 R- | TerminalBlock_TE_282834-4_1x04_P2.54mm_Horizontal | J2 |
| 1 | BUTTON N/O | TerminalBlock_TE_282834-3_1x03_P2.54mm_Horizontal | J3 |
| 1 | Conn_01x04 | PinSocket_1x04_P2.54mm_Horizontal | J4 |
| 3 | R220 | R_Axial_DIN0309_L9.0mm_D3.2mm_P12.70mm_Horizontal | R1, R2, R3 |
Acnode reader direct design files
The KiCad project lives in the londonhackspace/acnode-cl repository on GitHub; these links point at the commit this page was built from.
Acnode reader direct: common questions
How big is the Acnode reader direct PCB?
The Acnode reader direct measures 53 × 72.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Acnode reader direct?
7 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the Acnode reader direct design files?
From the londonhackspace/acnode-cl repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Acnode reader direct design in my own project?
The repository has no license, so all rights stay with londonhackspace. Use it as a reference, and ask the author before reusing the design.
