Periphlex
About the Periphlex PCB
Periphlex is an open source PCB design by loopj, published on GitHub under the SHL-2.1 license. It is a 2-layer board measuring 33.8 × 6.2 mm, with 12 components from 2 distinct parts.
By type, the board carries 11 test points and 1 connector.
It belongs with the iot & wireless and dev boards & breakouts designs in this gallery.
From the project

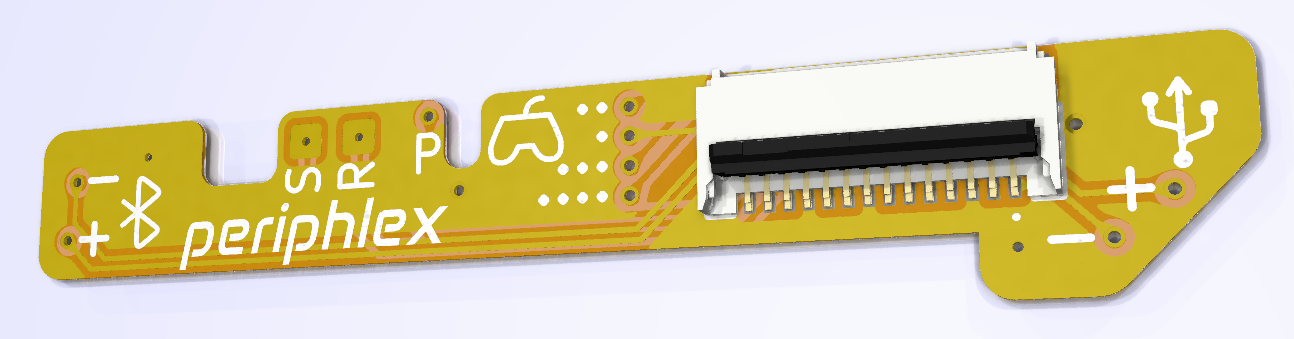

Flex PCB breakout for Bluetooth, USB, GameCube controller ports on trimmed Wii motherboards
Building a Wii portable requires trimming a Wii motherboard and relocating key peripherals such as USB, Bluetooth, and GameCube controllers. This design breaks out these peripherals from the front of the board to a low-profile FFC connector, allowing for more modular builds.
The board is designed to be semi-permanently installed by soldering to exposed traces for the USB and Bluetooth data lines, and to the vias for the GameCube ports.
Periphlex bill of materials (BOM)
12 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 5034801400 | 5034801400 | J1 |
| 11 | TestPoint | ViaPad_0.3_0.5 | TP1, TP2, TP3, TP4, TP5, TP6, TP7, TP8 +3 |
Periphlex design files
The KiCad project lives in the loopj/periphlex repository on GitHub; these links point at the commit this page was built from.
- LayoutKiCad/periphlex.kicad_pcb
- SchematicKiCad/periphlex.kicad_sch
Periphlex: common questions
How big is the Periphlex PCB?
The Periphlex measures 33.8 × 6.2 mm, has 2 copper layers and is 0.22352 mm thick.
How many components are on the Periphlex?
12 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the Periphlex design files?
From the loopj/periphlex repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Periphlex design in my own project?
It is published under SHL-2.1, which limits how it may be reused; read the license before building on it.
