ErgoMaxReversible PCB layout, top view — open source board by LouWii
Simulate this board

About the ErgoMaxReversible PCB

ErgoMaxReversible is an open source PCB design by LouWii, published on GitHub under the MIT license. It is a 2-layer board measuring 182.8 × 169.2 mm, with 96 components from 8 distinct parts.

Other key parts include the ProMicro. By type, the board carries 44 relays, 44 diodes, 2 resistors, 1 IC and 1 connector.

It belongs with the keyboards designs in this gallery.

From the project

Custom ergo split keyboard project, based on ErgoDox, with hot swap sockets

As its name suggests, the reversible PCB can be used for either the left side or right side.

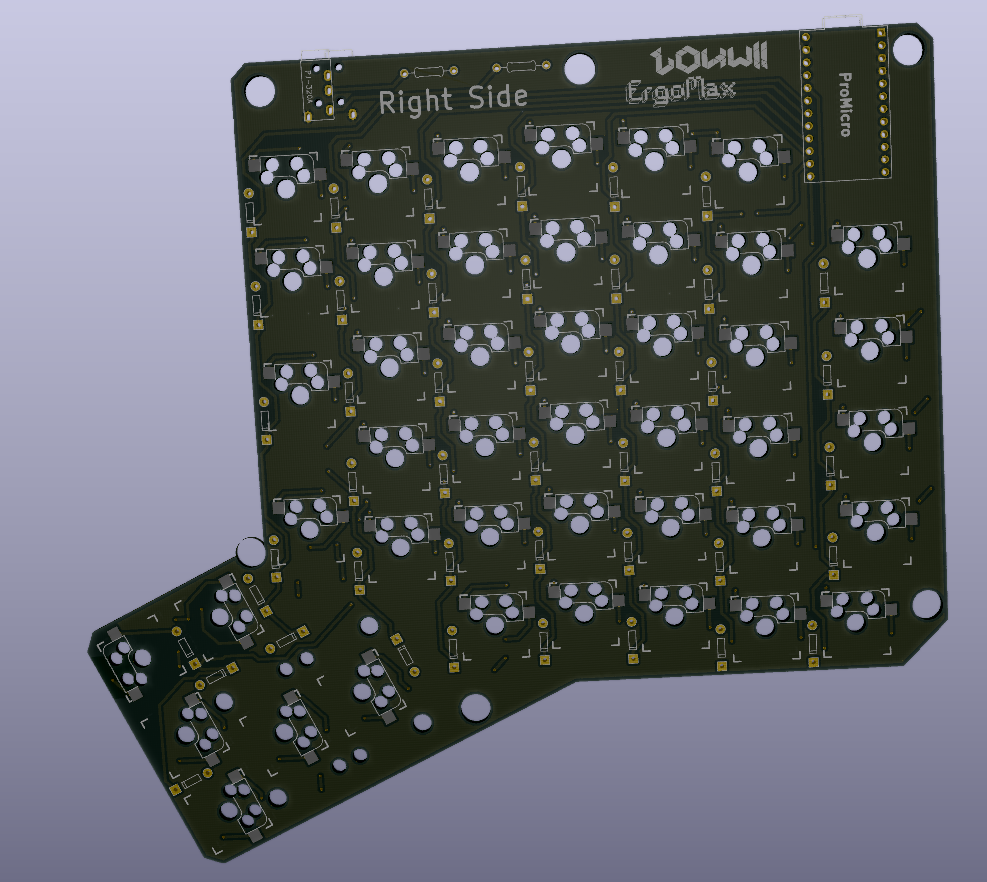

ErgoMaxReversible, from the project README
From the project README

Main components on the ErgoMaxReversible

ProMicro

ErgoMaxReversible bill of materials (BOM)

96 components, 8 distinct parts.

QtyPartRefs
1
ProMicro
U1
1
PJ-320A
J1
44
KEYSW
K1, K2, K3, K4, K5, K6, K7, K8 +36
1
Logo
Lg5
1
Logo
Lg6
2
Stab 2U
St1, St2
44
D
D1, D2, D3, D4, D5, D6, D7, D8 +36
2
2.2K
R1, R2
