ErgoMaxRight
About the ErgoMaxRight PCB
ErgoMaxRight is an open source PCB design by LouWii, published on GitHub under the MIT license. It is a 2-layer board measuring 182.8 × 169.2 mm, with 95 components from 33 distinct parts.
Other key parts include the ProMicro. By type, the board carries 44 relays, 44 diodes, 2 resistors, 1 IC and 1 connector.
It belongs with the keyboards designs in this gallery.
From the project
Custom ergo split keyboard project, based on ErgoDox, with hot swap sockets
This is the right side, for the right hand.

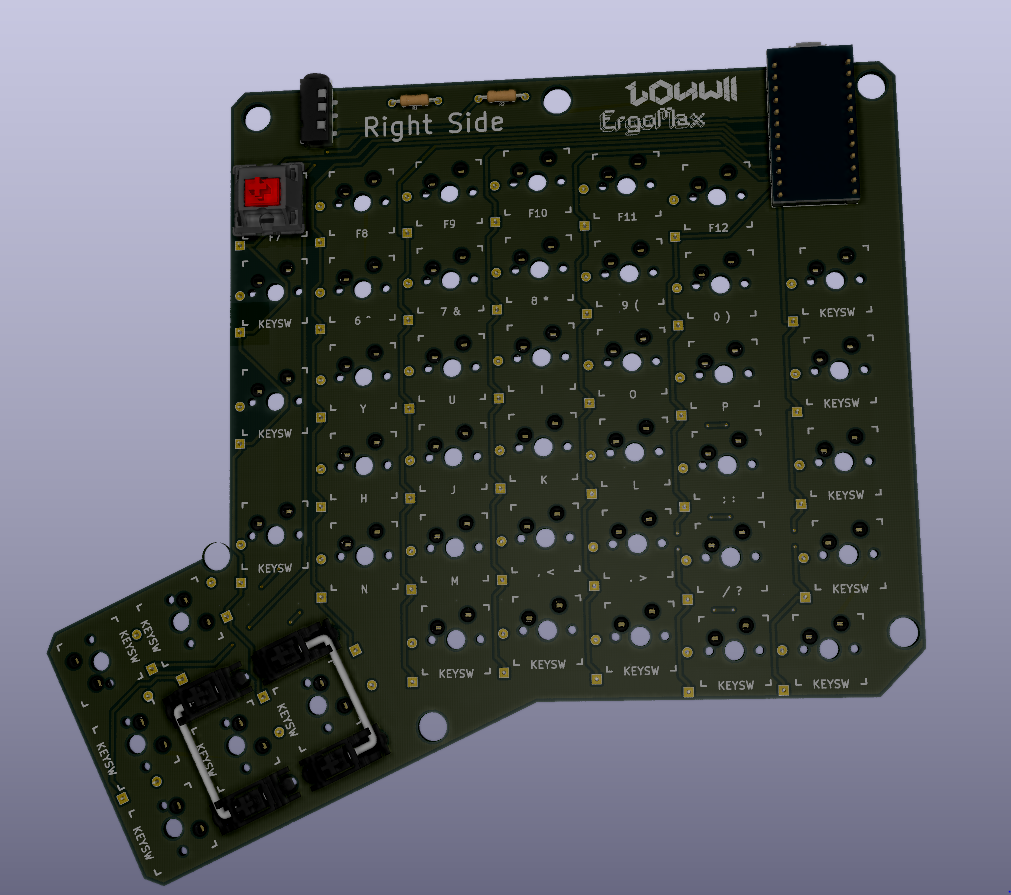

Render from Kicad (light source in Kicad isn't changeable...)
Main components on the ErgoMaxRight
ErgoMaxRight bill of materials (BOM)
95 components, 33 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ProMicro | ProMicro | U1 |
| 1 | PJ-320A | TRRS-PJ-320A-no-Fmask | J1 |
| 1 | F12 | Kailh_MX_Socket | K1 |
| 1 | F11 | Kailh_MX_Socket | K2 |
| 1 | F10 | Kailh_MX_Socket | K3 |
| 1 | F9 | Kailh_MX_Socket | K4 |
| 1 | F8 | Kailh_MX_Socket | K5 |
| 1 | F7 | Kailh_MX_Socket | K6 |
| 18 | KEYSW | Kailh_MX_Socket | K7, K13, K14, K20, K21, K27, K28, K29 +10 |
| 1 | 0 ) | Kailh_MX_Socket | K8 |
| 1 | 9 ( | Kailh_MX_Socket | K9 |
| 1 | 8 * | Kailh_MX_Socket | K10 |
| 1 | 7 & | Kailh_MX_Socket | K11 |
| 1 | 6 ^ | Kailh_MX_Socket | K12 |
| 1 | P | Kailh_MX_Socket | K15 |
| 1 | O | Kailh_MX_Socket | K16 |
| 1 | I | Kailh_MX_Socket | K17 |
| 1 | U | Kailh_MX_Socket | K18 |
| 1 | Y | Kailh_MX_Socket | K19 |
| 1 | ; : | Kailh_MX_Socket | K22 |
Show 13 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | L | Kailh_MX_Socket | K23 |
| 1 | K | Kailh_MX_Socket | K24 |
| 1 | J | Kailh_MX_Socket | K25 |
| 1 | H | Kailh_MX_Socket | K26 |
| 1 | / ? | Kailh_MX_Socket | K30 |
| 1 | . > | Kailh_MX_Socket | K31 |
| 1 | , < | Kailh_MX_Socket | K32 |
| 1 | M | Kailh_MX_Socket | K33 |
| 1 | N | Kailh_MX_Socket | K34 |
| 1 | Logo | RightSideText | Lg3 |
| 2 | Stab 2U | Mx_Stab_200 | St1, St2 |
| 44 | D | Diode_Long | D1, D2, D3, D4, D5, D6, D7, D8 +36 |
| 2 | 2.2K | Resistor | R1, R2 |
ErgoMaxRight design files
The KiCad project lives in the LouWii/ErgoMax repository on GitHub; these links point at the commit this page was built from.
ErgoMaxRight: common questions
How big is the ErgoMaxRight PCB?
The ErgoMaxRight measures 182.8 × 169.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ErgoMaxRight?
95 components, from 33 distinct parts. The full bill of materials is listed on this page.
Where can I download the ErgoMaxRight design files?
From the LouWii/ErgoMax repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the ErgoMaxRight design in my own project?
Yes, under the terms of its MIT license, which LouWii chose for the repository.
