About the FCK SM-028 PCB

FCK SM-028 is an open source RP2040/RP2350 PCB design by lsr1, published on GitHub. It is a 2-layer board measuring 15.2 × 18 mm, with 6 components from 6 distinct parts.

Its main chip is the ESP32-PICO-D4, from the RP2040/RP2350 family. By type, the board carries 3 capacitors, 1 antenna and 1 resistor.

It belongs with the iot & wireless designs in this gallery.

From the project

passive pcb adapter-plate (drop-in replacement) for SM-028_v1.3 Wi-Fi Module to a ESP32-PICO-D4

Long story short: Once again I compared the voltages and signal pins - turns out these fit to an ESP! So here we go again I guess.

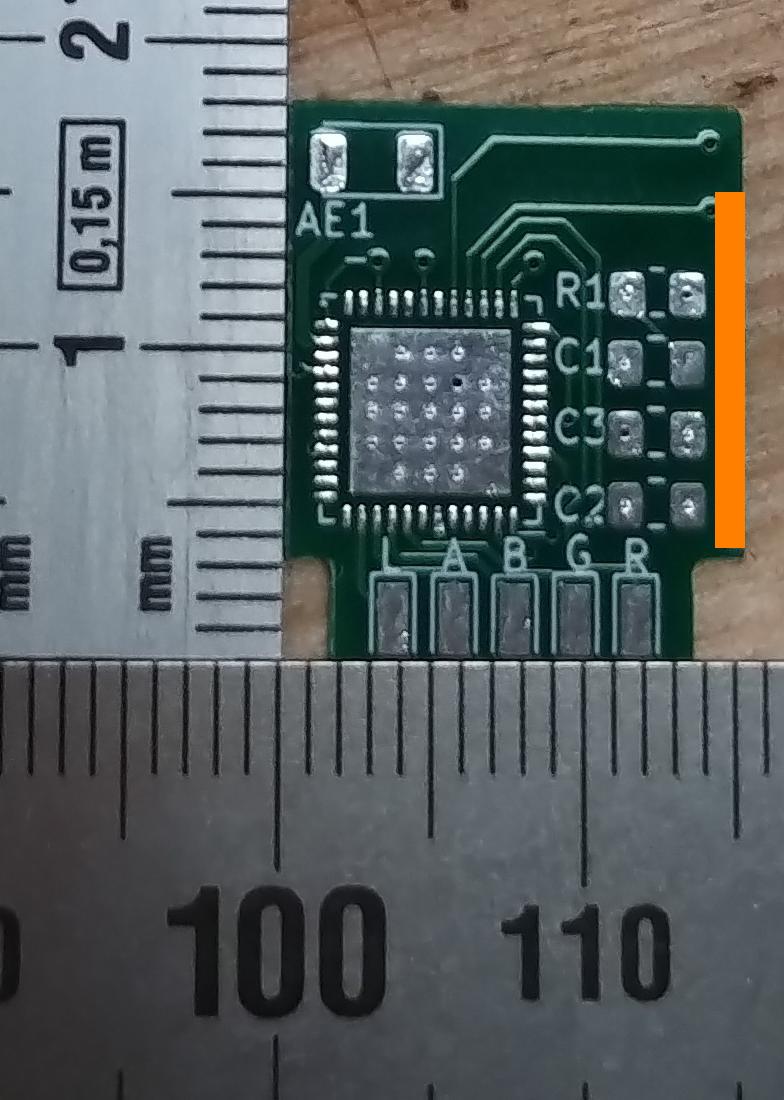

FCK SM-028, from the project README
From the project README

FCK SM-028 bill of materials (BOM)

6 components, 6 distinct parts.

QtyPartRefs
1
Antenna_Chip
AE1
1
ESP32-PICO-D4
FCK_SM-028_V1.3
1
0.1uF
C1
1
10uF
C2
1
1uF
C3
1
12K
R1

FCK SM-028 design files

The KiCad project lives in the lsr1/FCK_SM-028 repository on GitHub; these links point at the commit this page was built from.

FCK SM-028: common questions

What microcontroller does the FCK SM-028 use?

The FCK SM-028 is built around the ESP32-PICO-D4, from the RP2040/RP2350 family.

How big is the FCK SM-028 PCB?

The FCK SM-028 measures 15.2 × 18 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the FCK SM-028?

6 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the FCK SM-028 design files?

From the lsr1/FCK_SM-028 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the FCK SM-028 design in my own project?

The repository has no license, so all rights stay with lsr1. Use it as a reference, and ask the author before reusing the design.
