About the ESP32-LED-driver hardware PCB

ESP32-LED-driver hardware is an open source PCB design by m-c-tech, published on GitHub. It is a 2-layer board measuring 50 × 50 mm, with 25 components from 10 distinct parts.

Other key parts include the NodeMCU-32S and NCP1117-3.3_SOT223. By type, the board carries 9 connectors, 8 resistors, 4 transistors, 2 ICs and 2 capacitors.

It belongs with the iot & wireless and dev boards & breakouts designs in this gallery.

From the project

A board to drive RGBW and addressable LEDs using an ESP32 WiFi microcontroller.

Hardware changes for driving addressable LEDs: Remove 0R resistors from R1-R4. Place 0R resistors on R5-R7.

Pinout for up to 4 strings of one wire addressable LEDs: VDD - Power +ve (ensure your power supply is correct for your LED voltage) IO19 - LED data 1 IO18 - LED data 2 IO17 - LED data 3 IO16 - LED data 4 GND - GND

Pinout used for 2 strings of SPI addressable LEDs: VDD - Power +ve (ensure your power supply is correct for your LED voltage) IO19 - LED data 0 IO18 - LED clock 0 IO17 - LED data 1 IO16 - LED clock 1 GND - GND

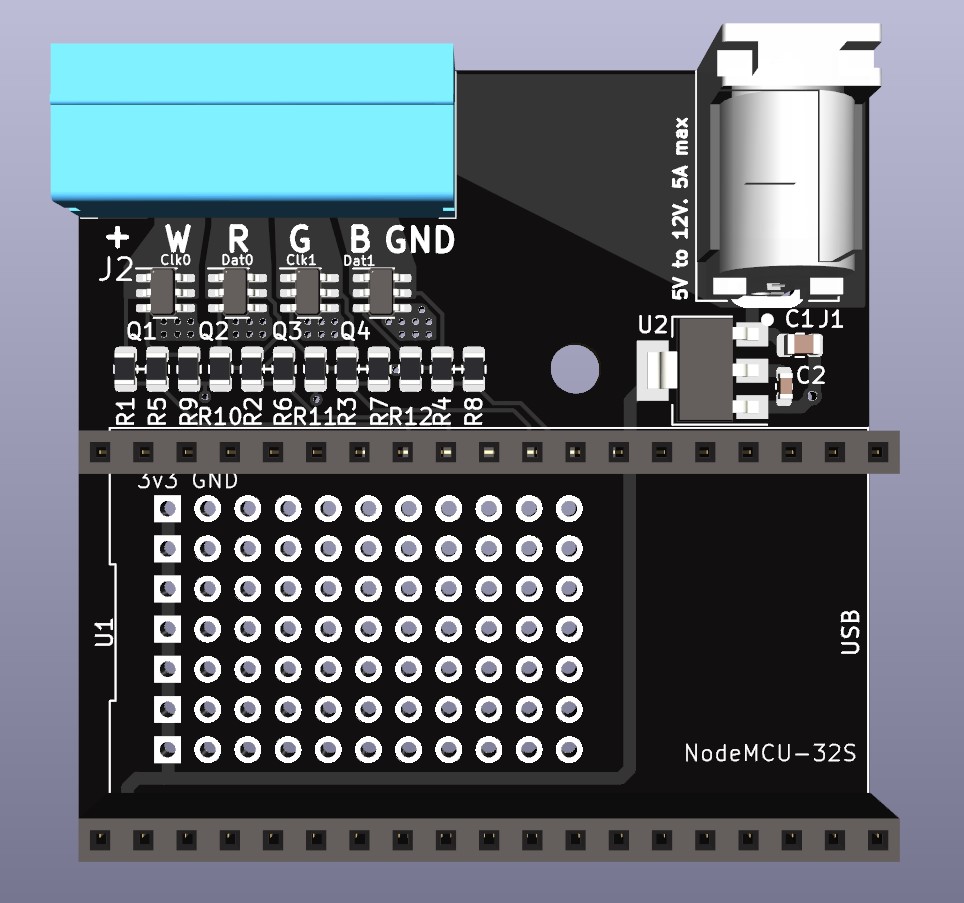

ESP32-LED-driver hardware, from the project README
From the project README

Main components on the ESP32-LED-driver hardware

NodeMCU-32SNCP1117-3.3_SOT223

ESP32-LED-driver hardware bill of materials (BOM)

25 components, 10 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
NodeMCU-32S
U1
1
NCP1117-3.3_SOT223
U2
4
AO6404
Q1, Q2, Q3, Q4
1
PJ-037A
J1
1
TBP02R1-381-05BE
J2
7
Conn_01x11
J3, J4, J5, J6, J7, J8, J9
1
10uF 25V
C1
1
10uF 6.3V
C2
4
0R 0805
R5, R6, R7, R8
4
10k 0805
R9, R10, R11, R12

ESP32-LED-driver hardware design files

The KiCad project lives in the m-c-tech/ESP32-LED-driver-hardware repository on GitHub; these links point at the commit this page was built from.

ESP32-LED-driver hardware: common questions

How big is the ESP32-LED-driver hardware PCB?

The ESP32-LED-driver hardware measures 50 × 50 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESP32-LED-driver hardware?

25 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ESP32-LED-driver hardware design files?

From the m-c-tech/ESP32-LED-driver-hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ESP32-LED-driver hardware design in my own project?

The repository has no license, so all rights stay with m-c-tech. Use it as a reference, and ask the author before reusing the design.
